Appendix
page
97
Proc
edu
re

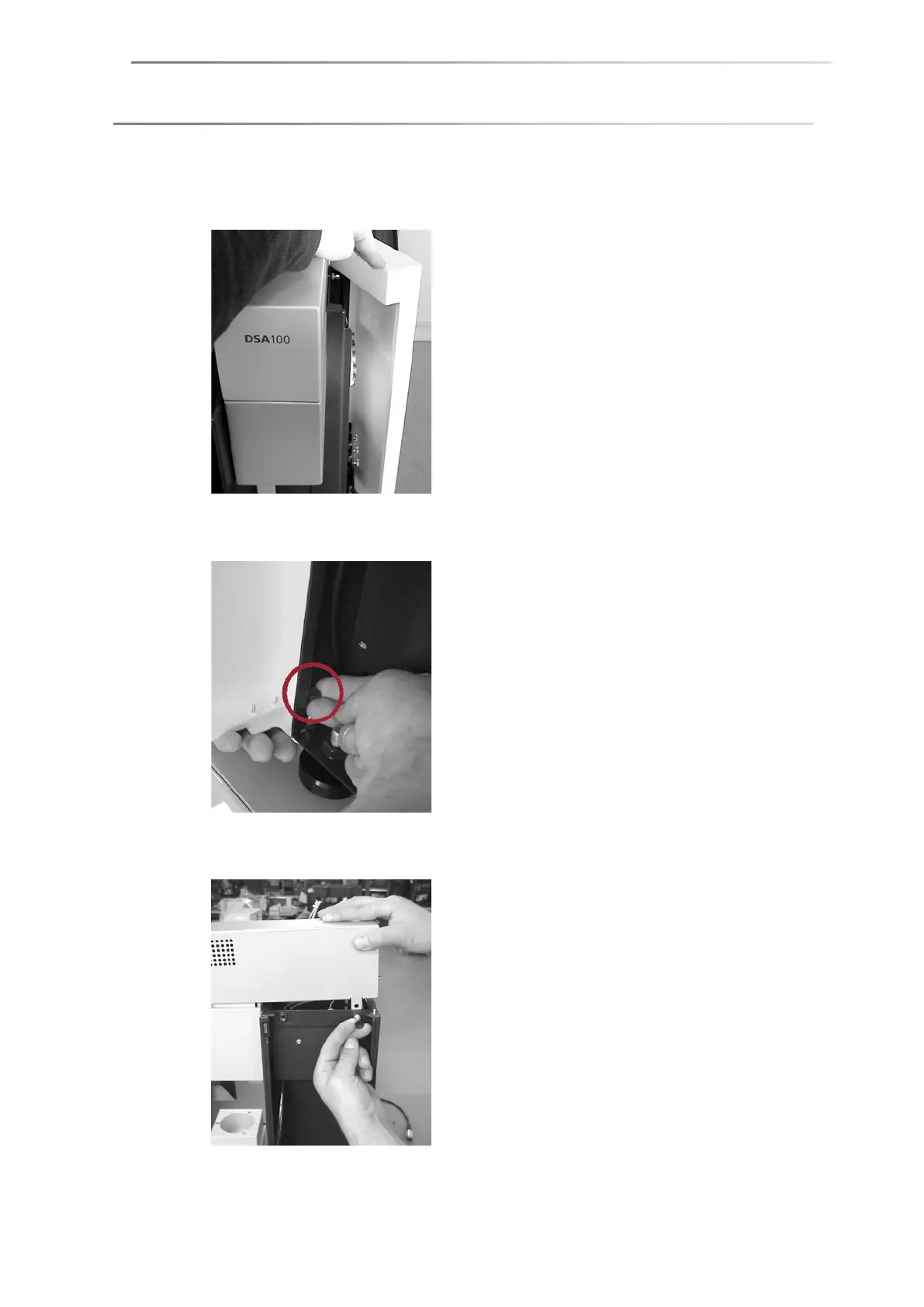

1.
Open
the compartment into which the syringe driver unit must be assembl
ed.
2.
Remove the door of the compartment by pulling the lower spring insid
e the
compartment and lifting up the door.
3.
Remove the covers from the illumination housin
g and the camera housi
ng. In
order to do that, pull the spring inside the chamber and lift up the cover.
98
100
Table of Contents
Default Chapter
3
Table of Contents
3
1 General Information
7
General Safety Instructions
7
Intended Use
7
Procedure if Repairs Should be Necessary
8
Comprehensiveness of the Printed Version and the Electronic Manual
9
Note Concerning Images
9
Technical Customer Service
9
2 Introduction
10
3 DSA100 Overview
12
4 Computer System
13
Mounting an IEEE-1394 Interface Board
13
Driver Installation
14
Safety Measures for Driver Installation
14
Frame Grabber Driver for CF3200/3201
15
Frame Grabber Driver for CF3220/21
15
IEEE 1394 Driver for CF31/3216
20
5 Setting up
23
Opening the Transport Packing and Checking the Scope of Supply
23
Transport
23
Location and Ambient Conditions
23
Levelling the Instrument
24
Power Supply / Power Switch
25
Connecting the Computer
25
Carrying out the Connection
25
Port Assignment
26
Protective Glass
27
Connecting a Temperature Sensor
28
6 Optical Components
29
Connecting the Camera
29
Assembling and Adjusting the Prism
30
Illumination / Aperture
31
7 Mounting Axes
33
Order of the Axes and Height Compensation with Spacers
33
Mounting a Spacer
34
Threads for Mounting Spacers and Axes
34
Replacing an Axis with a Spacer
34
Mounting Axes
35
Mounting an X- or Y-Axis on a Spacer
36
Mounting a Y-Axis on an X-Axis
37
Mounting a Z-Axis
38
Connecting Software-Controlled Axes
38
Mounting a Rotating Table
40
Removing the X-Axis (if Present)
40
Mounting a Wafer Table ST3220/3270
42
Mounting a Rotating Sample Table ST3230/3280
43
Tilting Table PA3220
46
Safety Instructions for Working with the Tilting Table
46
Weight and Dimensions (Not Mounted)
47
Mounting the Tilting Table
47
PA3240 Internal Tilting Table
49
Overview
49
Note
49
Mounting
49
Connecting the Tilting Table
51
Centring the Tilting Table in the Optical Axis
51
Levelling the Tilting Table
52
Adjusting the Height of the Sample Stage
53
Fitting the Holding Clamps
54
Fitting Spacers for the Protective Glass
54
Mounting the ST13 Miniature Sample Table (Optional)
55
8 Manual Single-Dosing Unit DS3200/3201
57
Fitting a Disposable Syringe
57
Assembling the Dosing Unit to the DSA100
58
Adjusting the Dosing Unit
59
9 Software-Controlled Single-Dosing Unit DS3210
60
Mounting the Dosing Unit
60
Fitting the Syringe
61
Adjusting the Dosing Unit
62
Restricted Software Options
63
10 Multi-Dosing Unit DS3226-3228
64
Initialising the Syringe Drives
64
Inserting the Syringes
65
Adjusting the Dosing Unit
68
11 Environmental Chambers TC30 and TC40
70
Safety Instructions
70
Temperature Range and Method of Temperature Control
70
Construction
71
Front - Controls
71
Rear - Connectors
71
TC30/40: Mounting on the DSA100
72
Connectors and Connections
72
Connecting the Thermostat
72
Condensation Protection
73
External Temperature Sensor
74
Inert Gas Connector
74
TC40 Only: Power Supply / Communication
75
Preparing the Measurement
76
Introducing the Sample
76
Positioning the Chamber
77
Positioning the Sample Perpendicular to the Optical Axis
77
Additional Components
78
Base Plate Attachment for Flat Samples
78
Heat Conducting Hood
78
TC40 Only: Setting and Reading off the Measuring Temperature
80
Safety Instructions
80
The Temperature Controller
80
Setting the Thermostat
81
12 Humidity Chamber HC10
82
Temperature Range and Method of Temperature Control
82
Notes for Use
82
Assembling the Interface Board
82
Mounting on the TC30/40 Environmental Chamber
83
Connectors and Connections
85
Liquid and Gas Connections
85
Power Supply / Communication
87
Filling / Filling Level
87
Fitting the Temperature Sensor
88
Covering the Needle Inlet
88
Appendix
89
I Computer Requirements
89
Exchanging Cameras
92
Iia) Assembly
92
Iib) Horizontal Alignment
94
Assembling an Interface Board for Software-Controlled Axes if Ordered Afterwards
94
Iiia) Safety Notes
94
Iiib) Procedure
95
Mounting Steps for a Multi-Dosing Unit if Ordered Afterwards
98
Iva) Assembling the Syringe Driver Unit(S)
98
Ivb) Assembling the Syringe Revolver
104
Addresses and Mounting of the Electronic Module EM3201
107
Va) Overview
107
Vb) Slots and Addresses
108
VC) Mounting
109
Test Liquids for Multi-Dosing Unit DS3222-3228
113
For DSA1 with DS3222-3228: Copying the DCM.ini File
114
Warranty and Caveat Emptor
114
Copyright and Right to Make Alterations
114
