Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
1-5-8

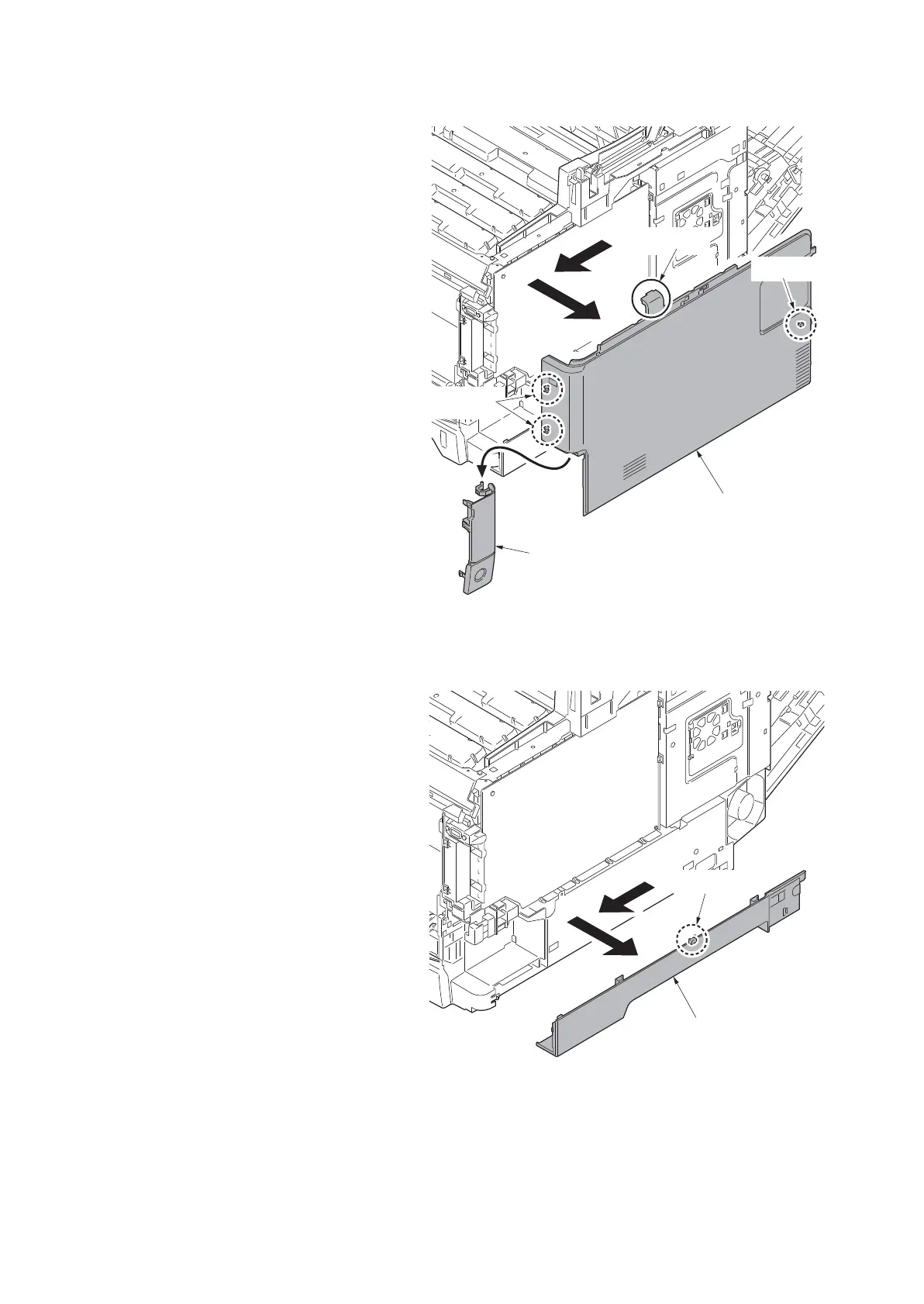

8. Release four hooks (hook A → B→ C).
Slide the right cover forward and then
remove it.
9. Remove the waste toner cover.
Figure 1-5-12
10. Release the hook. Slide the right lower
cover forward and then remove it.
Figure 1-5-13
Right cover
Hook B
Hooks C
Hook A
Waste toner
cover
Right lower cover
Hook
