2PV/2PW
1-5-31
6.

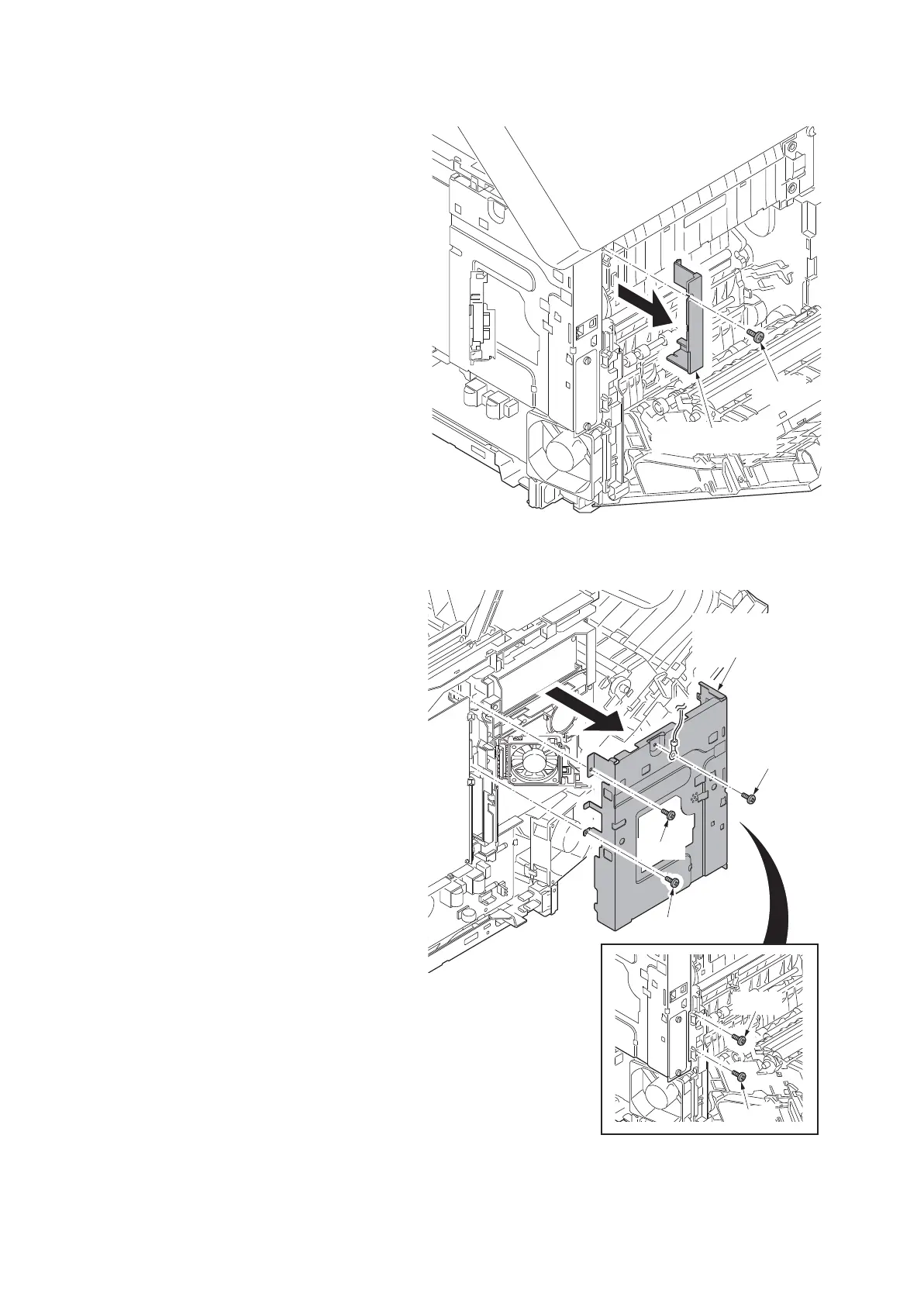

Remove the screw and then remove the
fuser wire cover
.
Figure 1-5-45
7.
Remove five screws and then remove
the controller shield.
Figure 1-5-46
Screw
Fuser wire cover
Controller
shield
Screw
Screw
Screw
Screw
Screw
220
222
