Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
1-5-32

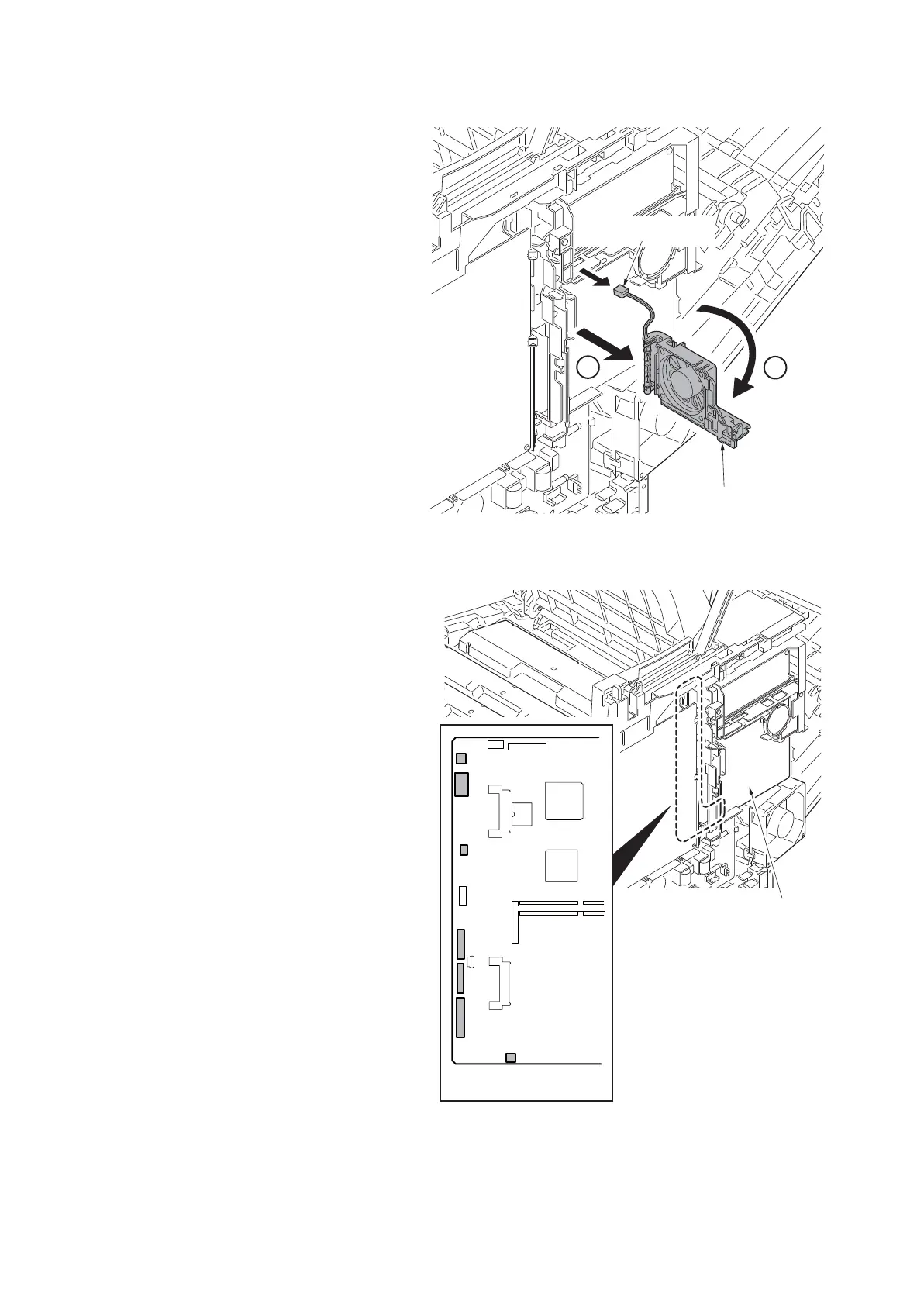

8. Remove the connector (YC41) of the
controller fan motor.
9. Open the fan bracket and then remove
it.
Figure 1-5-47
10. Remove seven connectors (YC15,
YC37, YC41, YC40, YC38, YC39 and
YC42) from the main PWB.
Figure 1-5-48
Fan bracket
Connector (YC41)
1
2
YC42
YC39
YC38
YC40
YC41
YC37
YC15
Main PWB
Main PWB
