Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
1-5-46
7. Remove the right rear cover, right cover
and right lower cover (see page 1-5-6).
8. Remove the controller shield (see page
1-5-30).
9. Remove two connectors (YC38, YC40)
from main PWB.

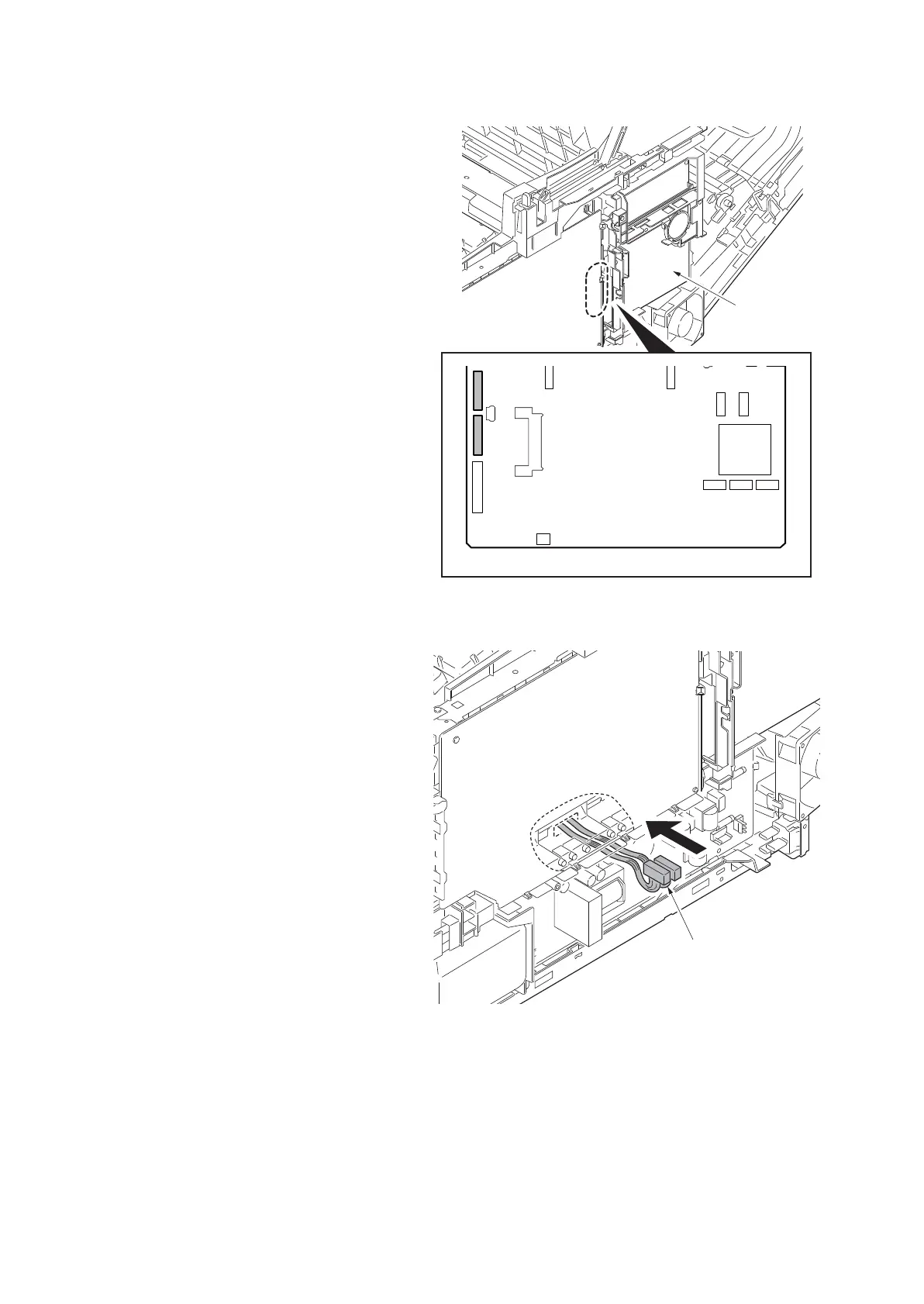

Figure 1-5-69
10. Draw two connectors (YC38, YC40)
into the machine inside.
Figure 1-5-70
YC38
YC40
Main PWB
Main PWB
Connectors
(YC38,YC40)
