Kyocera Ecosys M6526cdn Service Manual

2PV/2PW-2
1-5-74
(Attaching the new ISU)

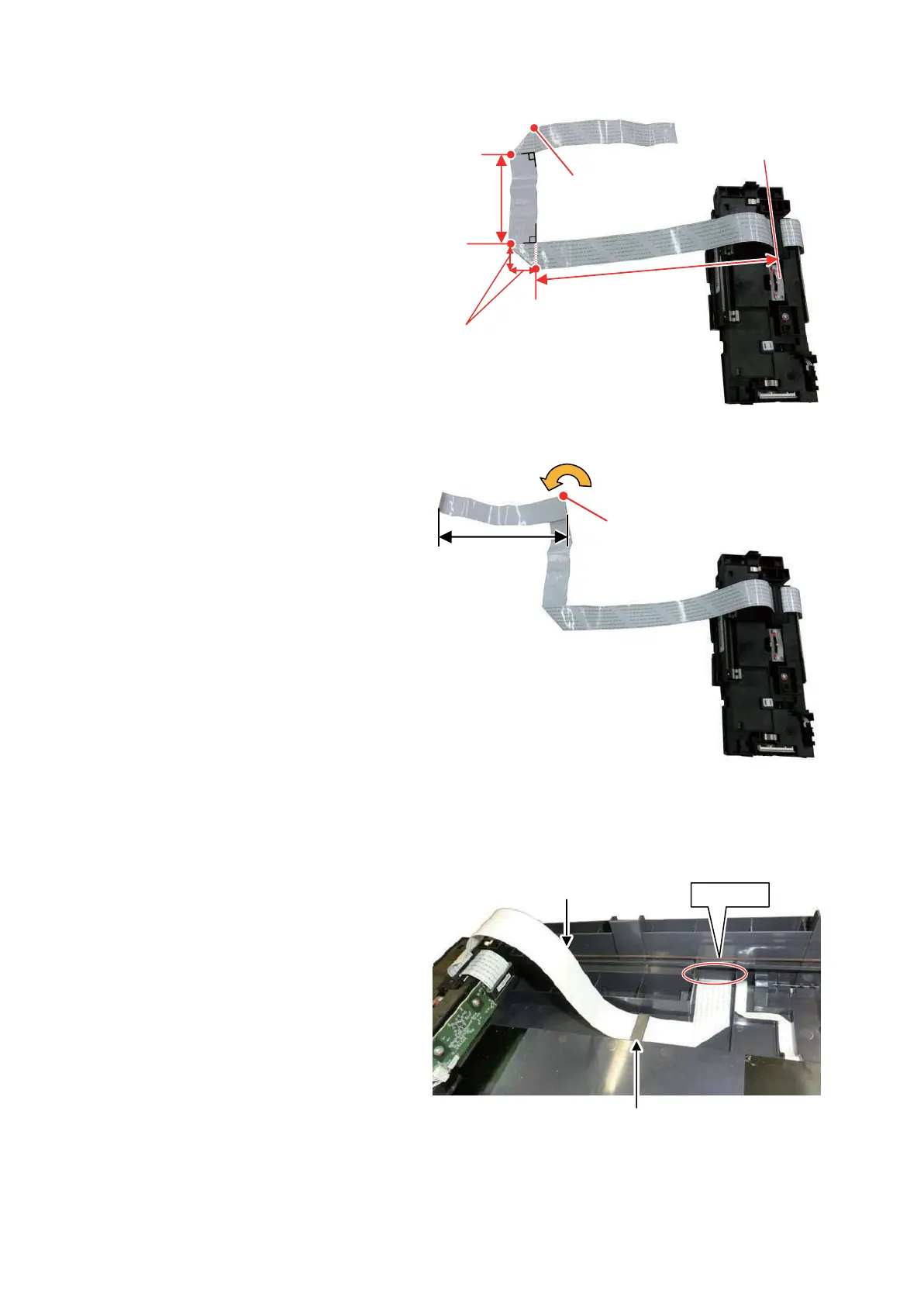

57. Fold the FFC wire of the new ISU with
the alignment to the right.
(1)Fold the FFC wire in 90 degrees at
300mm from Alignment G at the edge of
the holder passing the FFC wire to make
Alignment H.
(Or, fold it in 90 degrees on the line con-
necting the Alignment H and Alignment H'
at 33mm from H.)
(2)Fold it in 90 degrees at Alignment I at
135mm from the Alignment H' to make
Alignment J.
(3)Fold the FFC wire in 180 degrees at the
Alignment J.
(The reference length from the
Alignment J to the wire's edge is about
195mm.)
(4)Unfold the FFC wire to easily pass the
FFC wire through the ferrite core at the
next step.
Figure 1-5-119
58. Pass the ISU's FFC wire through the
ferrite core affixed on the scanner frame
and then pass its edge through the
aperture in the center of the scanner
frame.
Figure 1-5-120
G
G
G
300mm (+/-1mm)
H
33mm (+/-1mm)
135mm
(+/-1mm)
I
J
H'
J
180 degrees
About 195mm
Ferrite core
FFC wire
Aperture

Kyocera Ecosys M6526cdn Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Functions	Print, Copy, Scan, Fax
Fax Speed	33.6 kbps
Mobile Printing Support	Yes
Paper Output Capacity	150 sheets
Max Paper Size	A4
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Connectivity	USB 2.0, Ethernet
Warm-up Time	29 seconds
Duty Cycle	50, 000 pages per month
Recommended Monthly Print Volume	Up to 3, 000 pages
First Copy Out Time	10 seconds
Zoom Range	25% - 400%
Scan to	Email, FTP, SMB, USB
Fax Resolution	300 x 300 dpi
Memory	512 MB
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
