8. Remove the DP forwarding pulley unit.

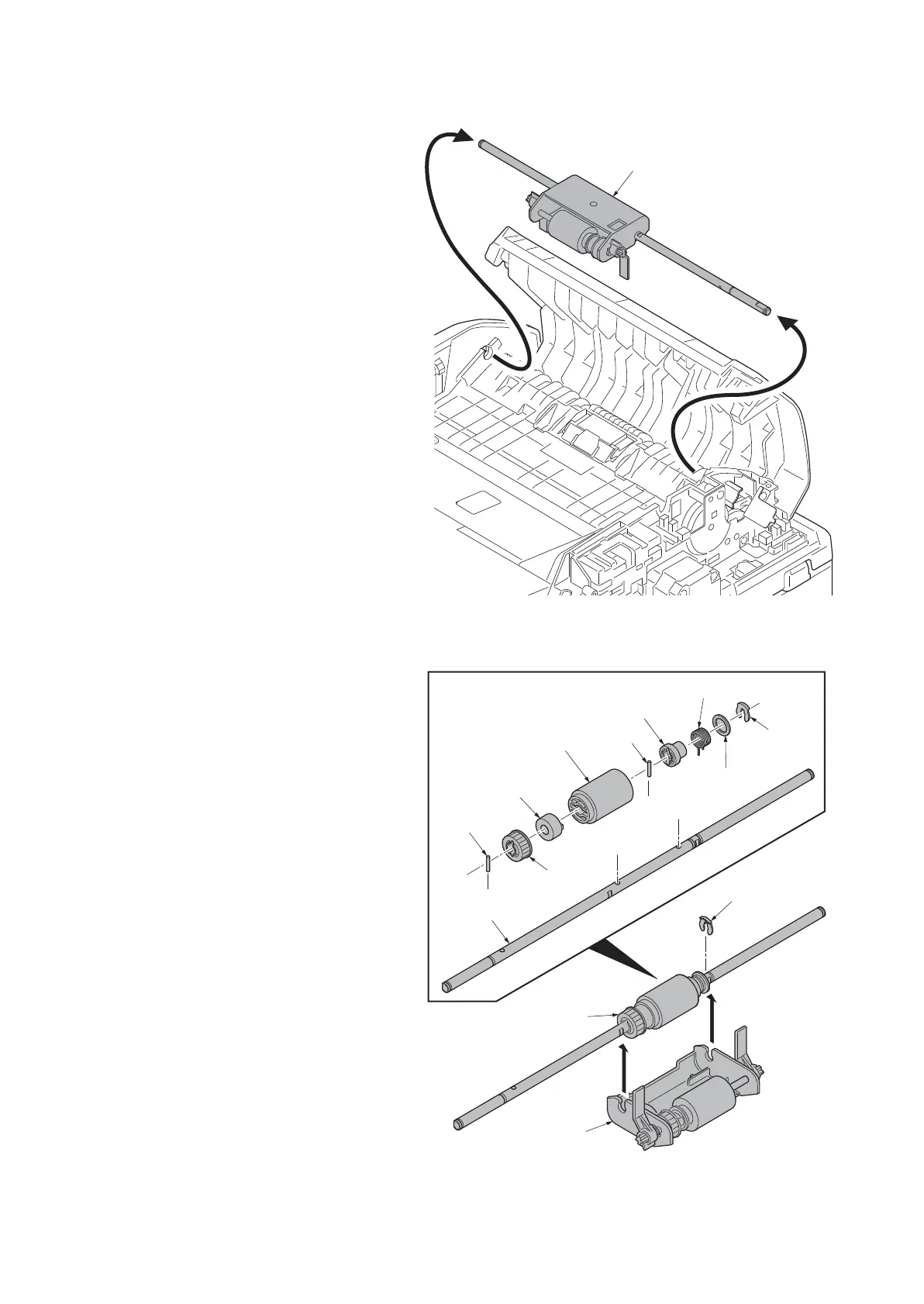

Figure 1-5-138
9. Remove the stop ring A.
10. Remove the DP feed pulley unit from
the LF holder.
11. Remove the stop ring B.
12. Remove the PF collar, spring, spring
collar and pin from the PF shaft.
13. Remove the DP feed pulley, one-way
clutch, PF pulley gear and pin from the
PF shaft.
Figure 1-5-139
DP forwarding
pulley unit
Stop
ring A
DP feed
pulley unit
LF holder
DP feed
pulley
Pin
PF shaft
Pin
Spring
Spring collar
PF collar
Stop
ring B
PF pulley
gear
One-way
clutch
