Front I/O expansion board cable routing
Connect the front I/O expansion board signal cables and power cable as illustrated.

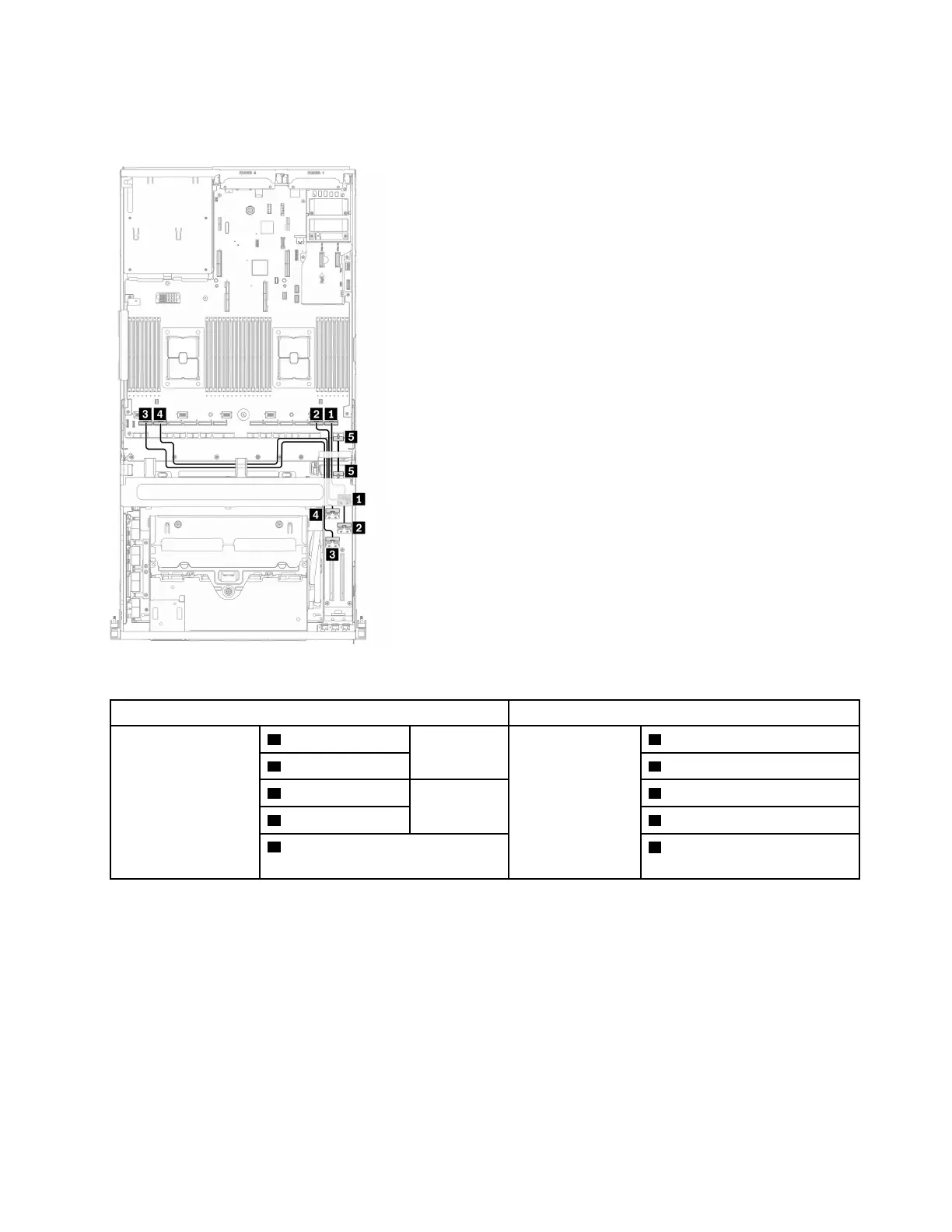

Figure 65. Front I/O expansion board cable routing – Configuration G
From To
Front I/O expansion
board
1 MCIO connector B
Slot #1
System board
1 PCIe connector 1
2 MCIO connector A 2 PCIe connector 2
3 MCIO connector C
Slot #2
3 PCIe connector 12
4 MCIO connector D 4 PCIe connector 11
5 Power connector
5 Front I/O expansion board
power connector
