a. Align the guide slots on the fan cage with the guide pins on the chassis, and lower the fan
cage into the chassis.
b.
Rotate the release latches down until they stop.
Note: Press the fan modules to make sure they are seated correctly on the system board.

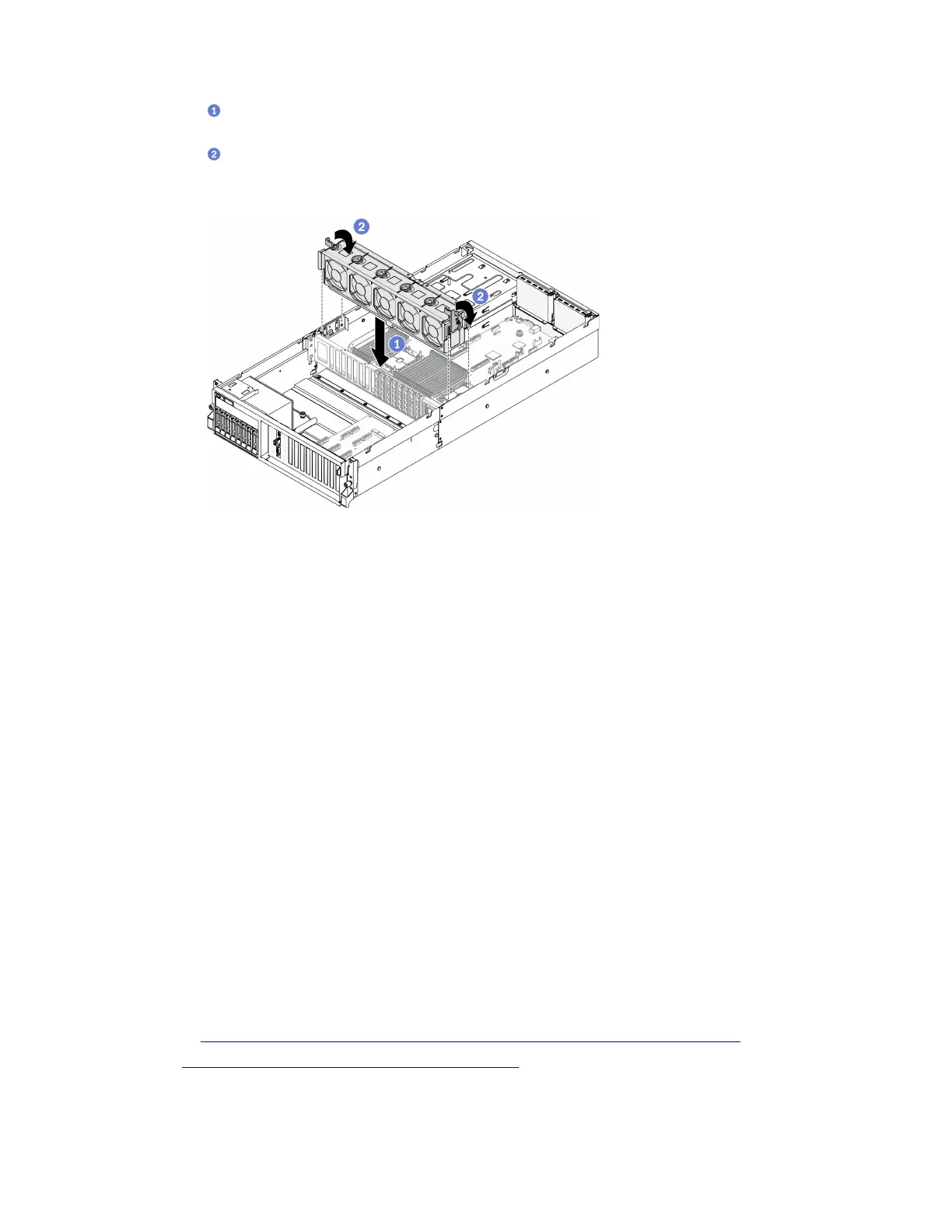

Figure 88. Installing the fan cage
After you finish
1. Reinstall the fans if needed. See “Install a fan” on page 146.
2. Complete the parts replacement. See “Complete the parts replacement” on page 328.
Fan replacement
Follow instructions in this section to remove and install a fan.
Remove a fan
Follow instructions in this section to remove a fan.
About this task
Attention:
• Read “Installation Guidelines” on page 121 and “Safety inspection checklist” on page 122 to ensure that
you work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 14.
• If the server is installed in a rack, slide the server out on its rack slide rails to gain access to the top cover,
or remove the server from the rack. See “Remove the server from rack” on page 124.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-BXei6L6c05osQVLt4w5XYx
• Youku: https://list.youku.com/albumlist/show/id_59636529
Procedure
