• Read “Installation Guidelines” on page 121 and “Safety inspection checklist” on page 122 to ensure that
you work safely.
• Touch the static-protective package that contains the drive to any unpainted metal surface on the server;
then, remove the drive from the package and place it on a static-protective surface.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-BXei6L6c05osQVLt4w5XYx
• Youku: https://list.youku.com/albumlist/show/id_59636529
Procedure
Step 1. Fasten the four screws to secure the PCIe riser board to the PCIe riser cage.

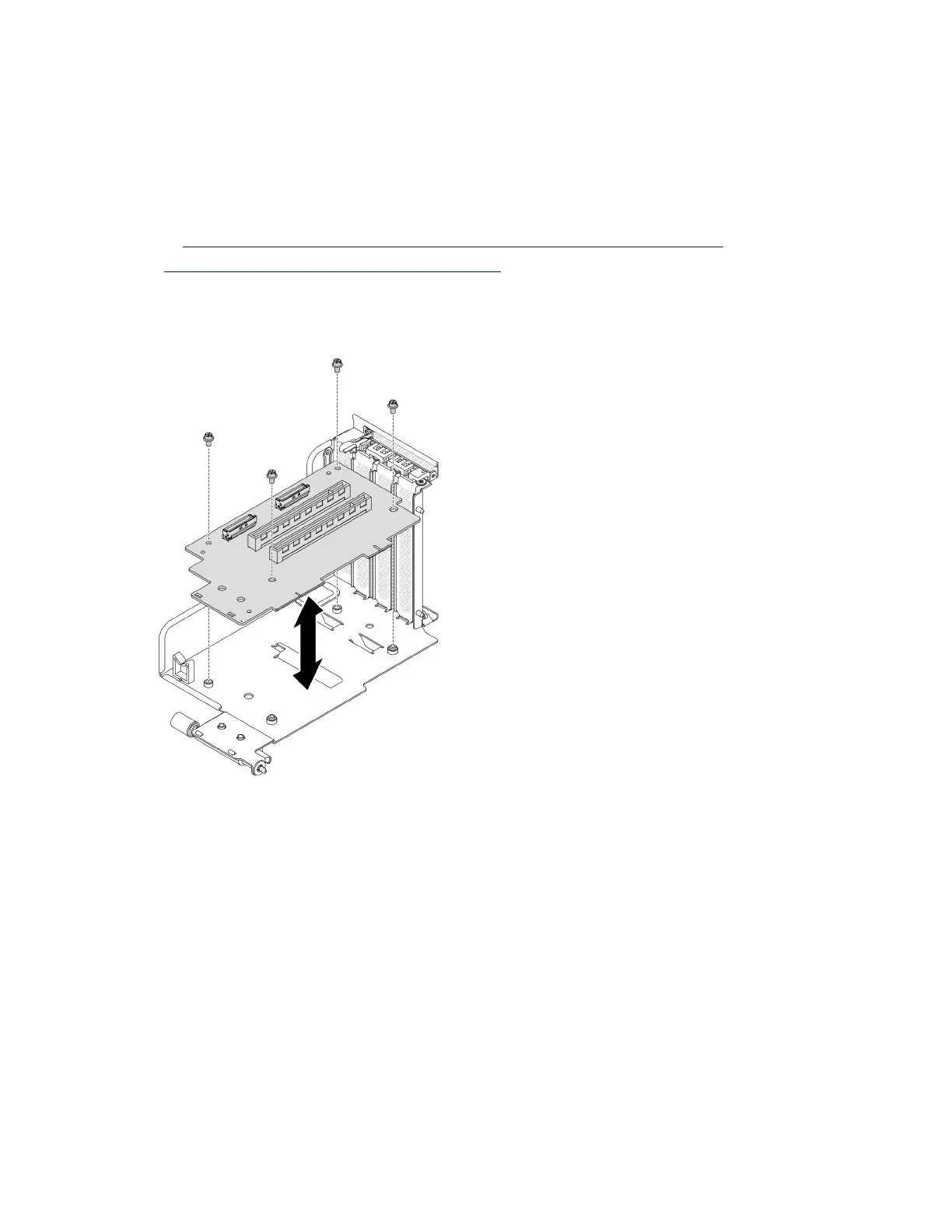

Figure 135. Installing the riser board
After you finish
1. Reinstall the PCIe adapter or serial port module. See “Install a PCIe adapter” on page 188 or “Install the
serial port module” on page 213.
2. Reinstall the PCIe riser. See “Install a PCIe riser” on page 189.
3. Reconnect the required cables.
4. Complete the parts replacement. See “Complete the parts replacement” on page 328.
Power distribution board replacement
Follow instructions in this section to remove and install the power distribution board.
Remove the power distribution board
Follow instructions in this section to remove the power distribution board.
194 ThinkSystem SR670 V2 Maintenance Manual
