Procedure
Step 1. Prepare your server.
a. Remove the top cover. See “Remove the top cover” on page 225.
b. Remove the PCIe riser. See “Remove a PCIe riser” on page 183.
Step 2. Remove the PCIe adapter.
a.
Open the retention latch on the PCIe riser.
b.
Unfasten the screw that secures the PCIe adapter to the PCIe riser.
c.
Remove the PCIe adapter from the PCIe riser.

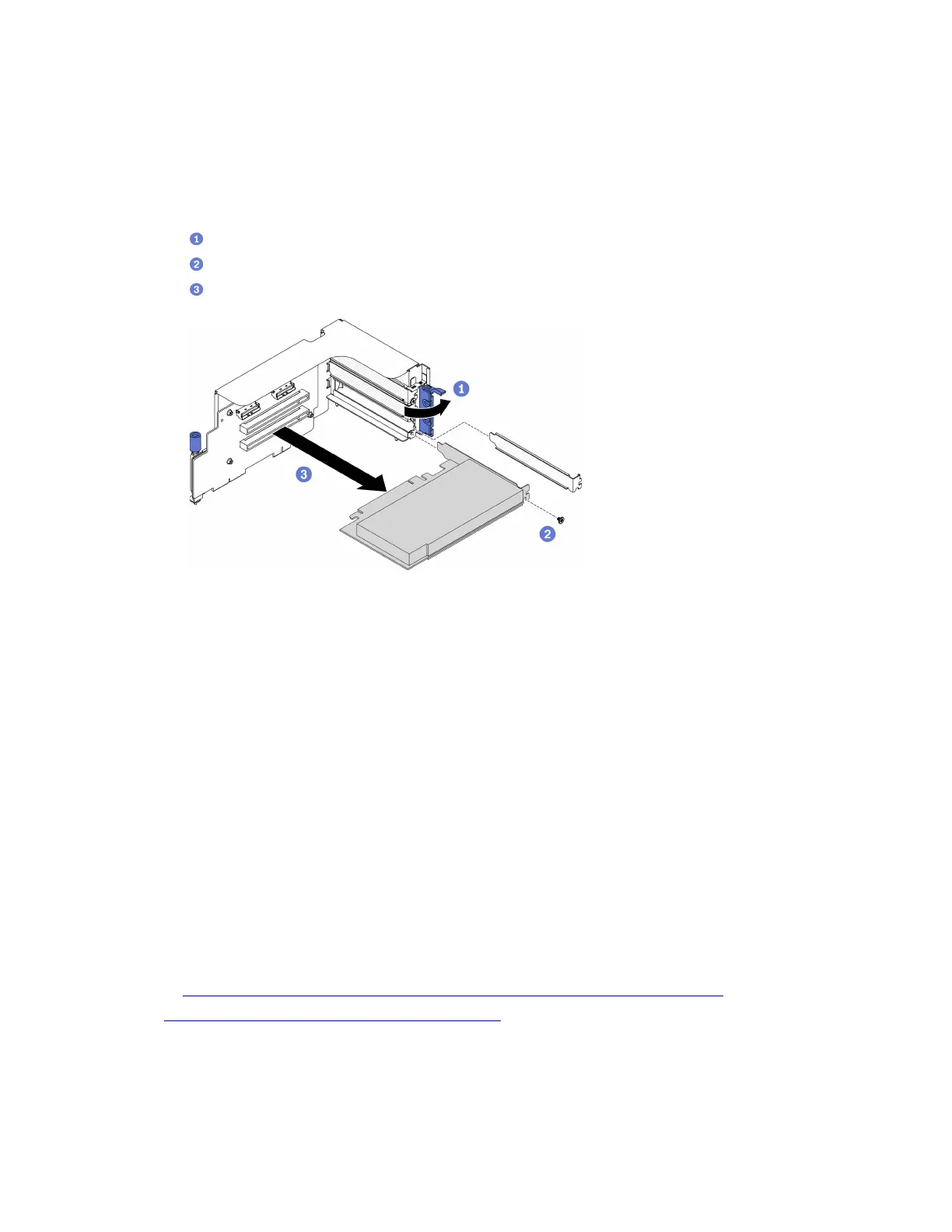

Figure 128. Removing a PCIe adapter
After you finish
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install a PCIe adapter
Follow instructions in this section to install a PCIe adapter.
About this task
Attention:
• Read “Installation Guidelines” on page 121 and “Safety inspection checklist” on page 122 to ensure that
you work safely.
• Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-BXei6L6c05osQVLt4w5XYx
• Youku: https://list.youku.com/albumlist/show/id_59636529
Procedure
Step 1. Open the retention latch on the PCIe riser.
Step 2. Install the PCIe adapter.
188
ThinkSystem SR670 V2 Maintenance Manual
