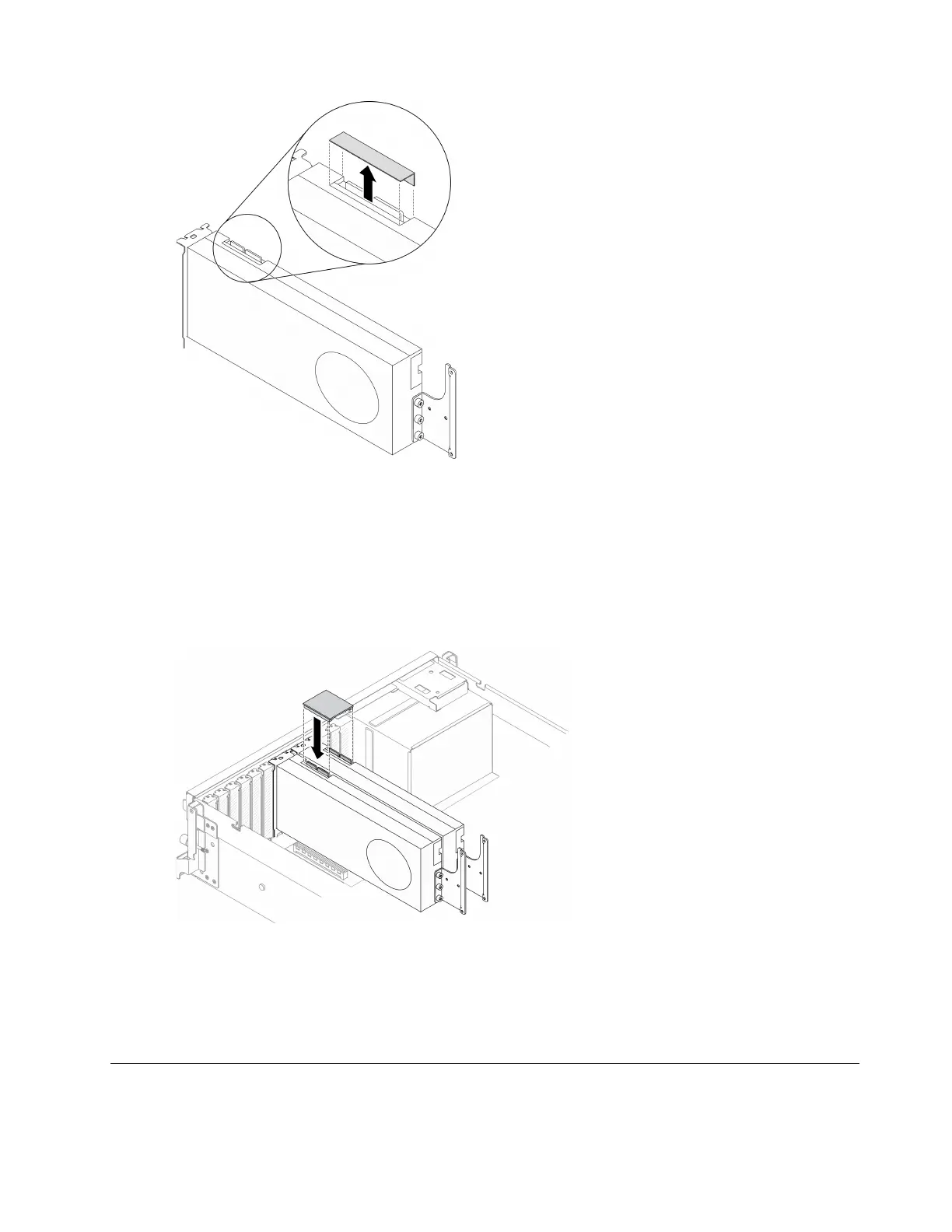

Figure 195. Removing the link connector cover from the GPU
Step 3. Install the GPU to the chassis. See “Install a GPU adapter” on page 253.
Step 4. Align the GPU adapter link bridge to the link connectors on the GPUs; then, install the GPU adapter
link bridge to the GPUs until it clicks into place.
Note: Depending on the configuration, there may be one or three GPU adapter link bridges on the
GPU. When linking a GPU pair, all link connectors on the GPUs must be linked.
Figure 196. Installing the GPU adapter link bridge
After you finish
Complete the parts replacement. See “Complete the parts replacement” on page 328.
SXM GPU Model components
Use information in this section to remove and install SXM GPU Model components.
