CAUTION:
Hazardous energy present. Voltages with hazardous energy might cause heating when shorted
with metal, which might result in spattered metal, burns, or both.
Attention:
• Read “Installation Guidelines” on page 121 and “Safety inspection checklist” on page 122 to ensure that
you work safely.
• Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-BXei6L6c05osQVLt4w5XYx
• Youku: https://list.youku.com/albumlist/show/id_59636529
Procedure
Step 1. Align the connector on the cable with that on the server and push it in.
Note: Depending on your configuration, the server and the location of the connector might look
different from those shown in the illustrations.

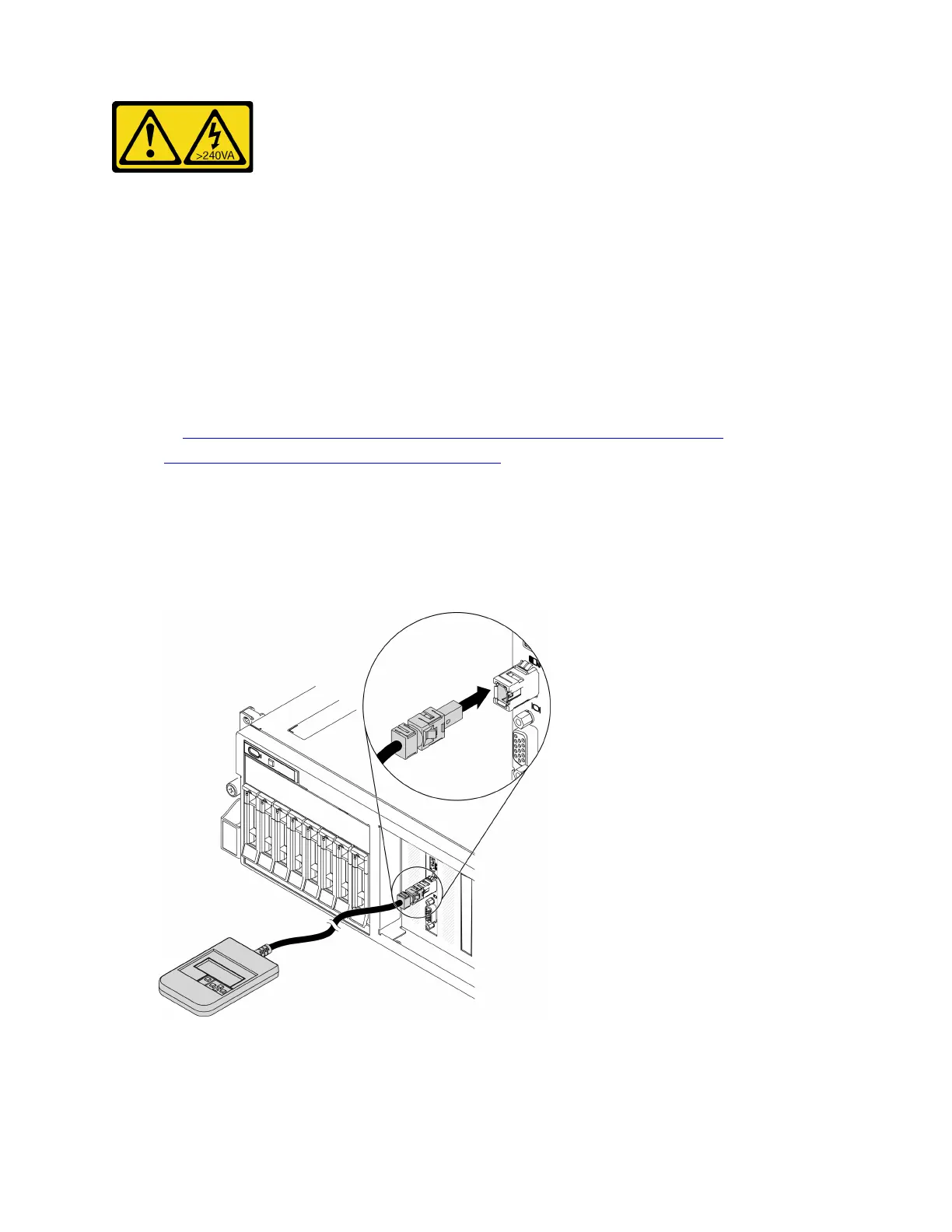

Figure 85. Connecting the external LCD diagnostics handset cable
Step 2. Attach the external LCD diagnostics handset to a metal surface with the magnetic bottom.
142 ThinkSystem SR670 V2 Maintenance Manual
