Procedure
Step 1. Remove the following components as illustrated:
• Nine screws (PH2 screwdriver)
Step 2. Separate the retimer assembly from the supporting sheet metal.

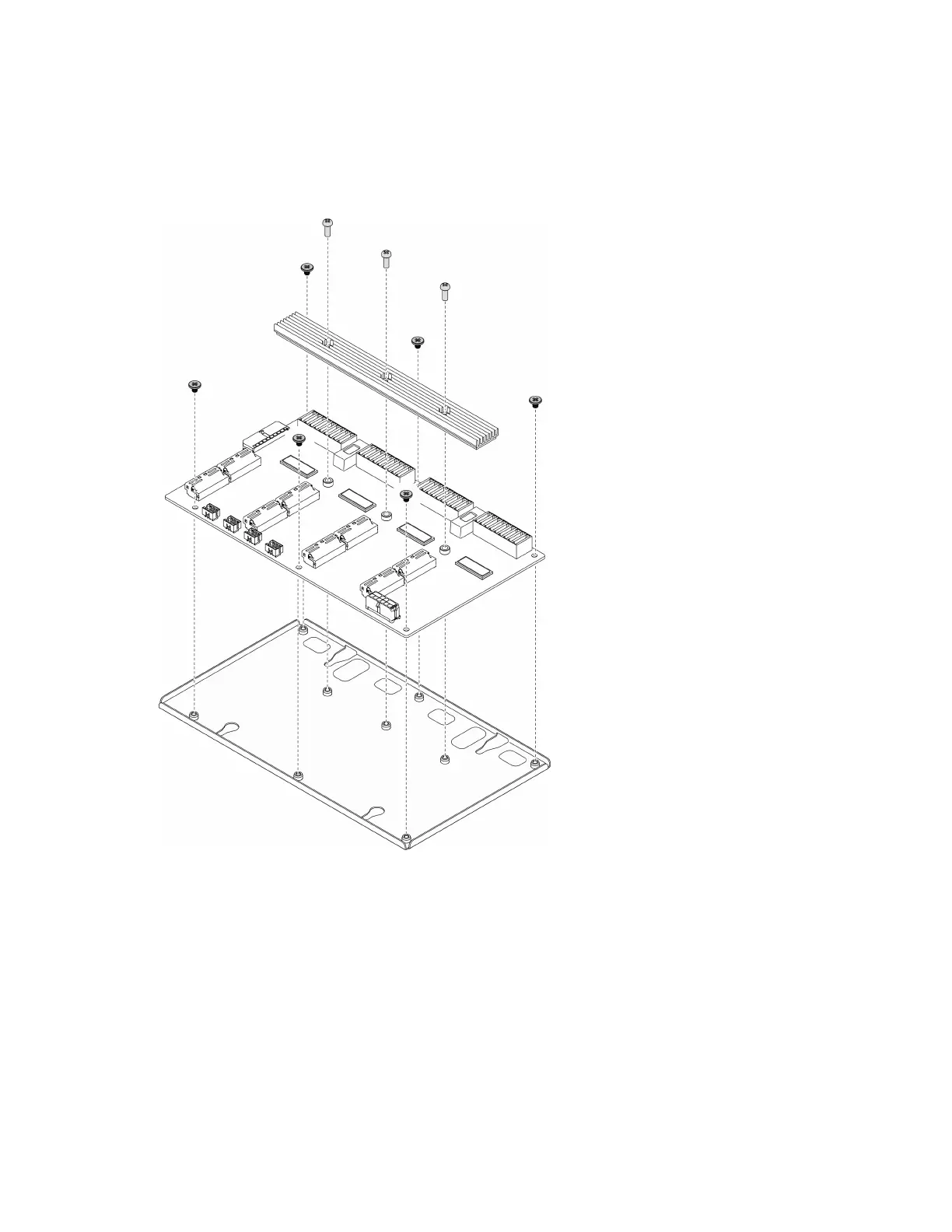

Figure 274. Disassembling the retimer assembly
After you finish
After disassembling the system board, recycle the unit in compliance with local regulations.
