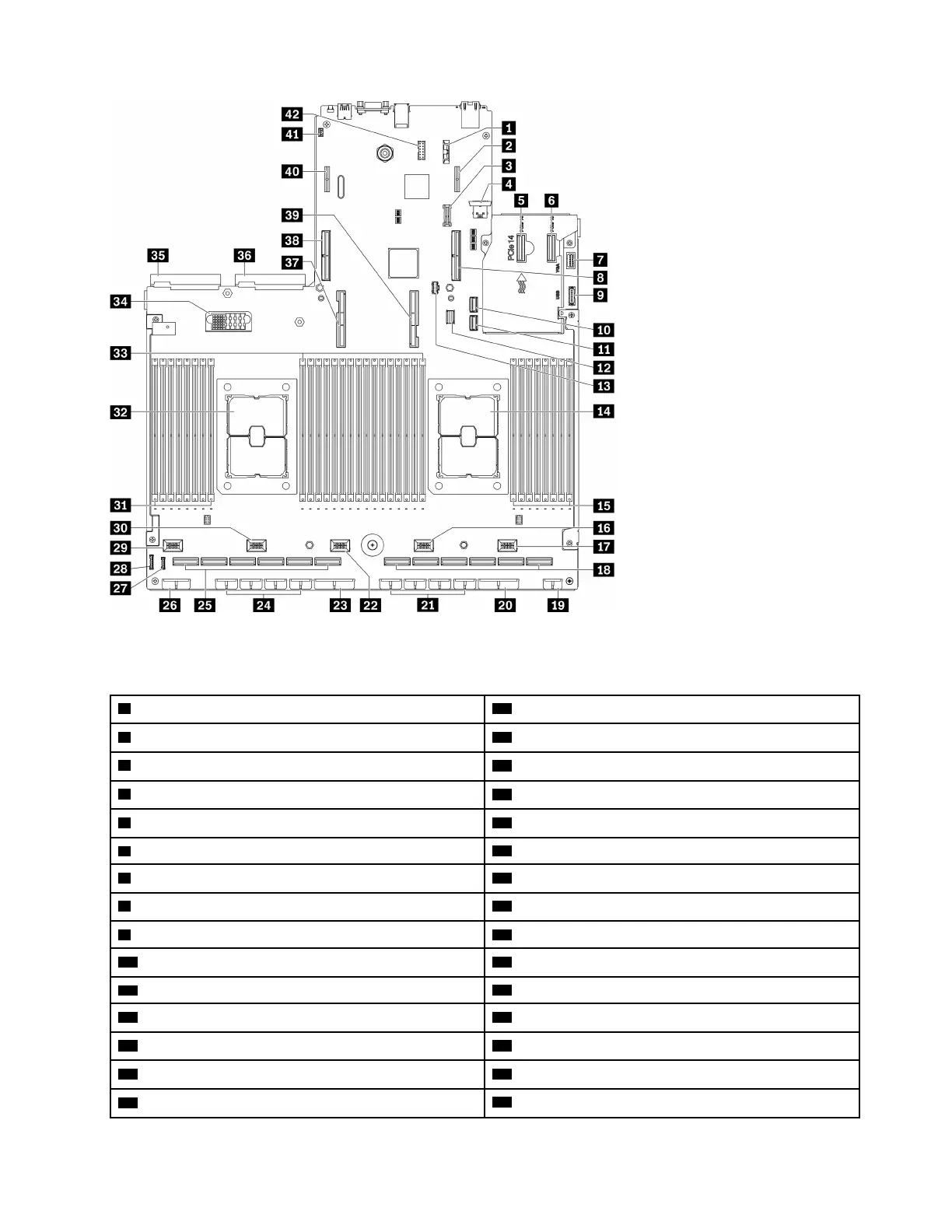

Figure 13. System-board connectors
Table 13. System-board connectors
1 3V battery (CR2032)
22 Fan 3 connector
2 Rear PCIe riser power 1 connector 23 PCIe adapter distribution board power 2 connector
3 TPM connector
24 GPU power connector 8, 7, 6, 5 (left to right)
4 Internal USB connector 25 PCIe connector 12, 11, 10, 9, 8, 7 (left to right)
5 PCIe connector 14
26 Backplane power 1 connector
6 PCIe connector 13 27 LCD connector
1
7 Front VGA connector
1
28 Front panel connector
8 PCIe connector 15 (rear PCIe riser 1)
29 Fan 5 connector
9 Front USB connector
1
30 Fan 4 connector
10 SATA 1 connector 31 Memory module 32 - 25 (left to right)
11 SATA 2 connector
32 Processor 2
12 M.2 signal connector
33 Memory module slots 24 - 9 (left to right)
13 M.2 power connector 34 Power distribution board connector
14 Processor 1 35 Power supply unit 2 connector
15 Memory module slots 8 - 1 (left to right)
36 Power supply unit 1 connector
Chapter 2. Server components 35
