Drive backplane cable routing
Connect the drive backplane signal cable and power cable as illustrated.

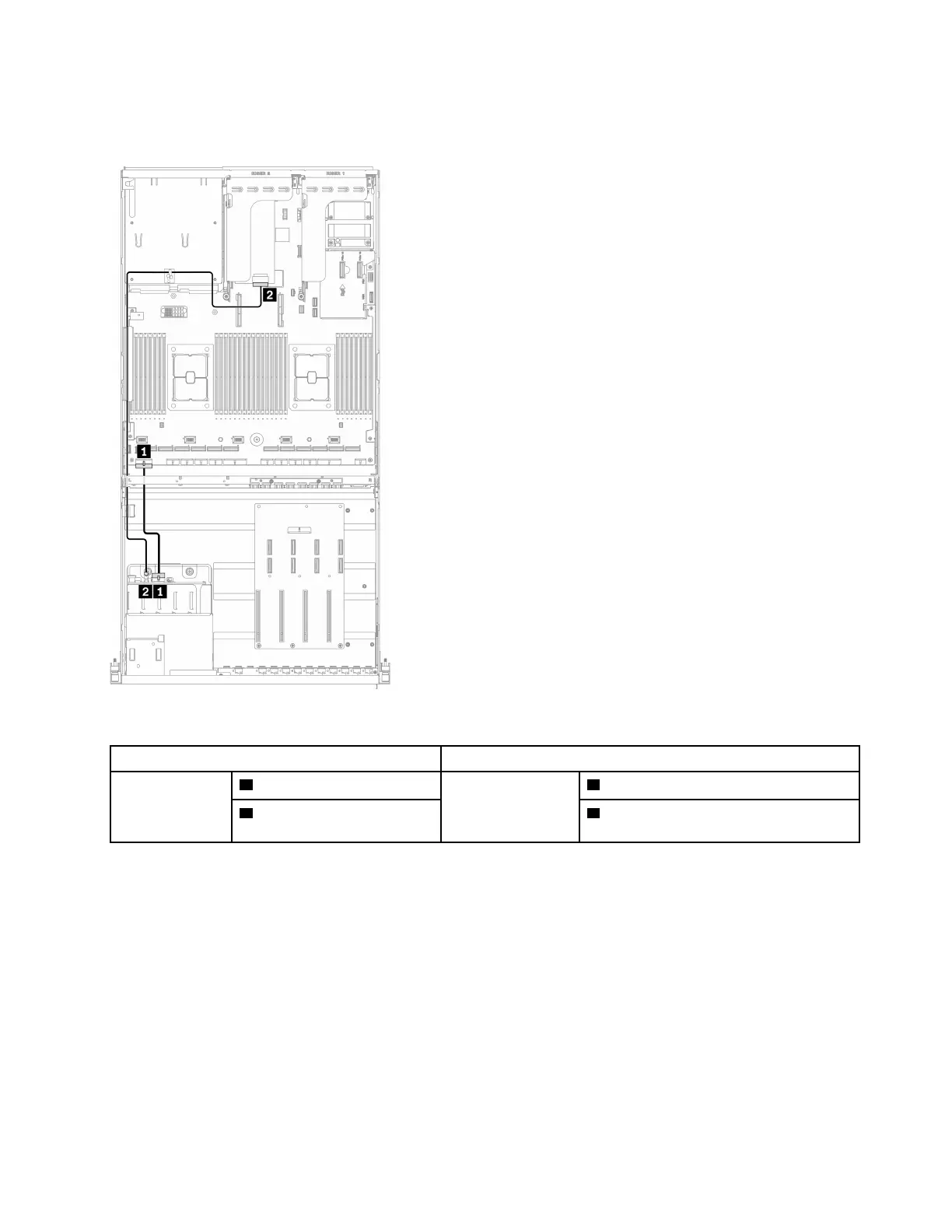

Figure 45. Drive backplane cable routing – Configuration B with HBA/RAID adapter
From To
Drive backplane
1 Power connector
System board
1 Backplane power 1 connector
2 SAS 2 HBA/RAID adapter installed on rear
riser 2
Chapter 3. Internal cable routing 89
