Mechanical installation
Standard devices in the power range 0.37 ... 11 kW
Mounting with fixing rails (standard)
4

144
EDKVF9333V DE/EN/FR 7.2
4.1.2 Mounting with fixing rails (standard)
Mounting material required from the scope of supply:
Description Use
Quantity
EVF9321−EV ...
EVF9324−EV
EVF9325−EV
EVF9326−EV
Fixing rails Drive controller fixing 2 4
Dimensions
a
c
a
c
c1
d
b
b1
b1
d
b
LL
120
k
g
e
³ 100mm
³ 100mm
9300vec114

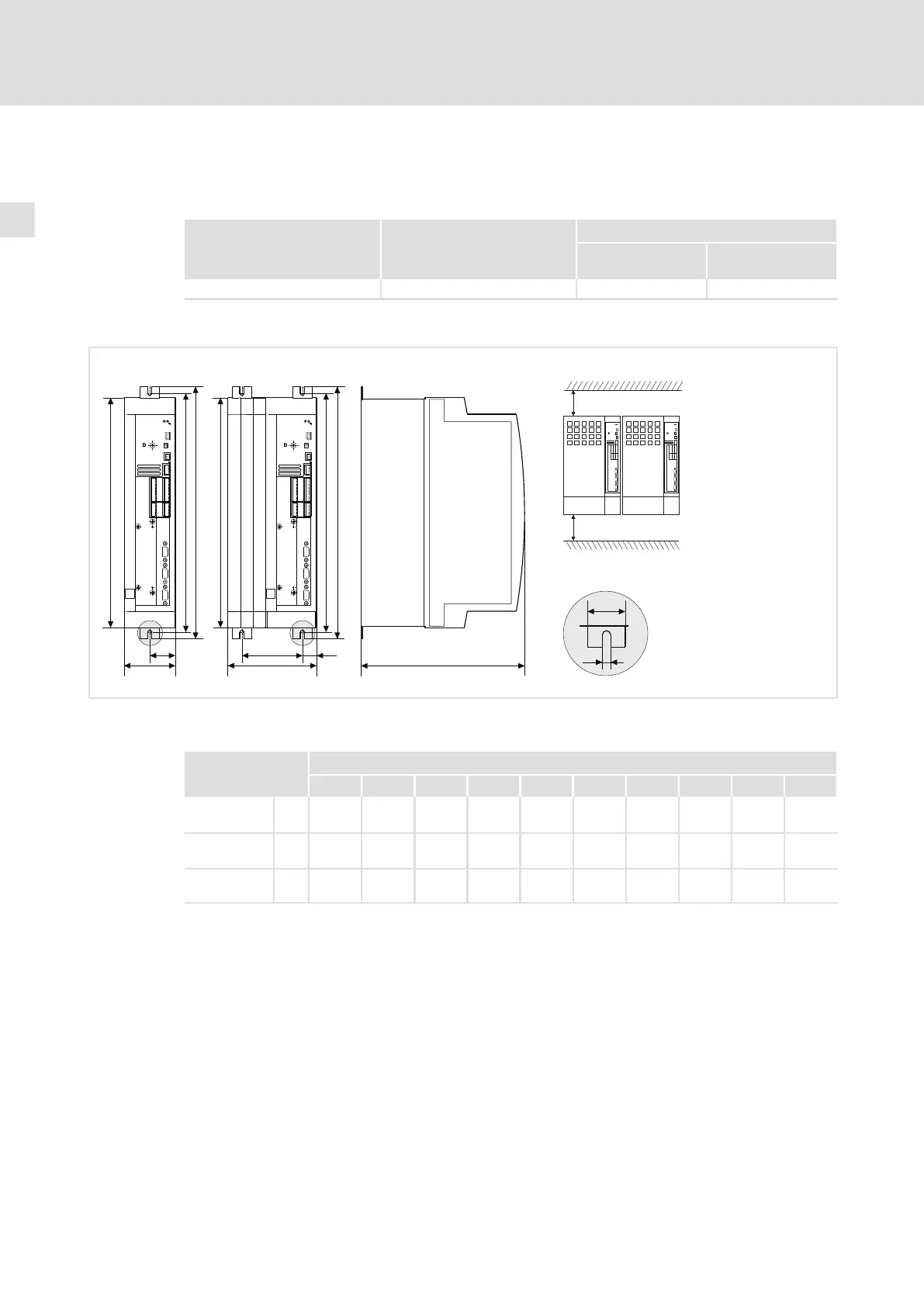

Fig. 4−1 Standard mounting with fixing rails 0.37 ... 11 kW
 Drive controllers can be mounted side by side without spacing
9300 vector Dimensions [mm]
Type a b b1 c c1 d d1 e
1)
g k
EVF9321−EV
EVF9322−EV

78 384 350 39 − 365 ˘ 250 6.5 30
EVF9323−EV
EVF9324−EV
 97 384 350 48.5 − 365 ˘ 250 6.5 30
EVF9325−EV
EVF9326−EV
 135 384 350 21.5 92 365 ˘ 250 6.5 30
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting
ƒ Attach the fixing rails to the housing of the drive controller.
