Lenze 9300 vector Series - Standard Devices in the Power Range 15; Important Notes

Electrical installation
Standard devices in the power range 15 ... 30 kW
Important notes
5

179
EDKVF9333V DE/EN/FR 7.2
5.5 Standard devices in the power range 15 ... 30 kW
5.5.1 Important notes

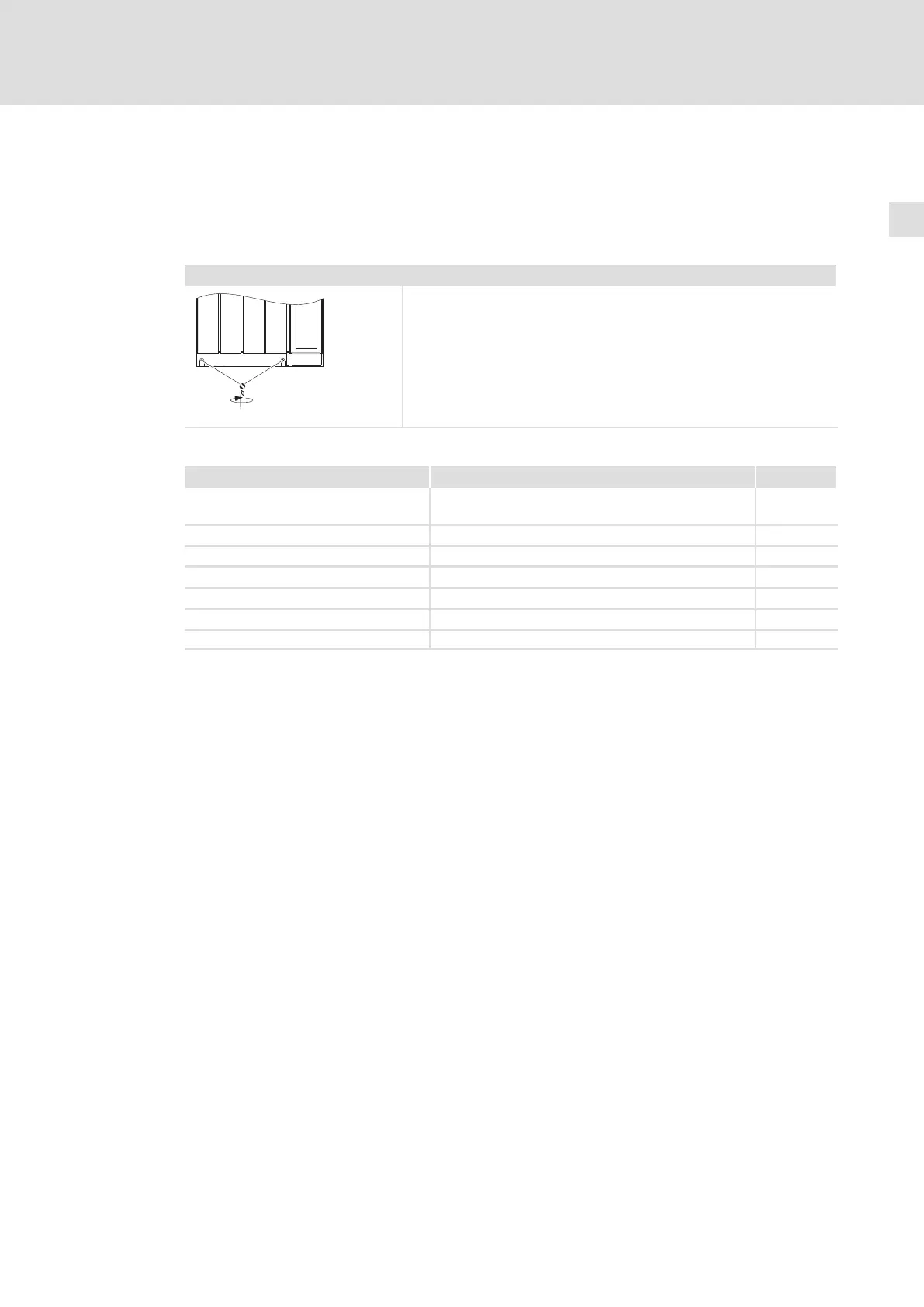

To gain access to the power connections, remove the cover:
Remove the cover of the drive controller
0
1
1. Remove the screws 
2. Lift cover  up and detach it
9300vec113
Installation material required from the scope of supply:
Description Use Quantity
Hexagon nut M6 (DIN 934) Connection of supply cables (mains, +U
G
, −U
G
) and
motor cable to the stud bolts
10
Washer Æ 6 mm (DIN 125) For hexagon nut M6 10
Spring washer Æ 6 mm (DIN 127) For hexagon nut M6 10
Grommet Motor cable 1
Shield connection support Support of the shield sheet for motor cable 1
Self−tapping screw Æ 4 × 14 mm Fastening of shield connection support 2
Shield sheet Shield connection for motor cable 1
