Lenze 9300 vector Series Mounting Instructions

Mechanical installation
Standard devices in the power range 15 ... 30 kW
Important notes
4

148
EDKVF9333V DE/EN/FR 7.2

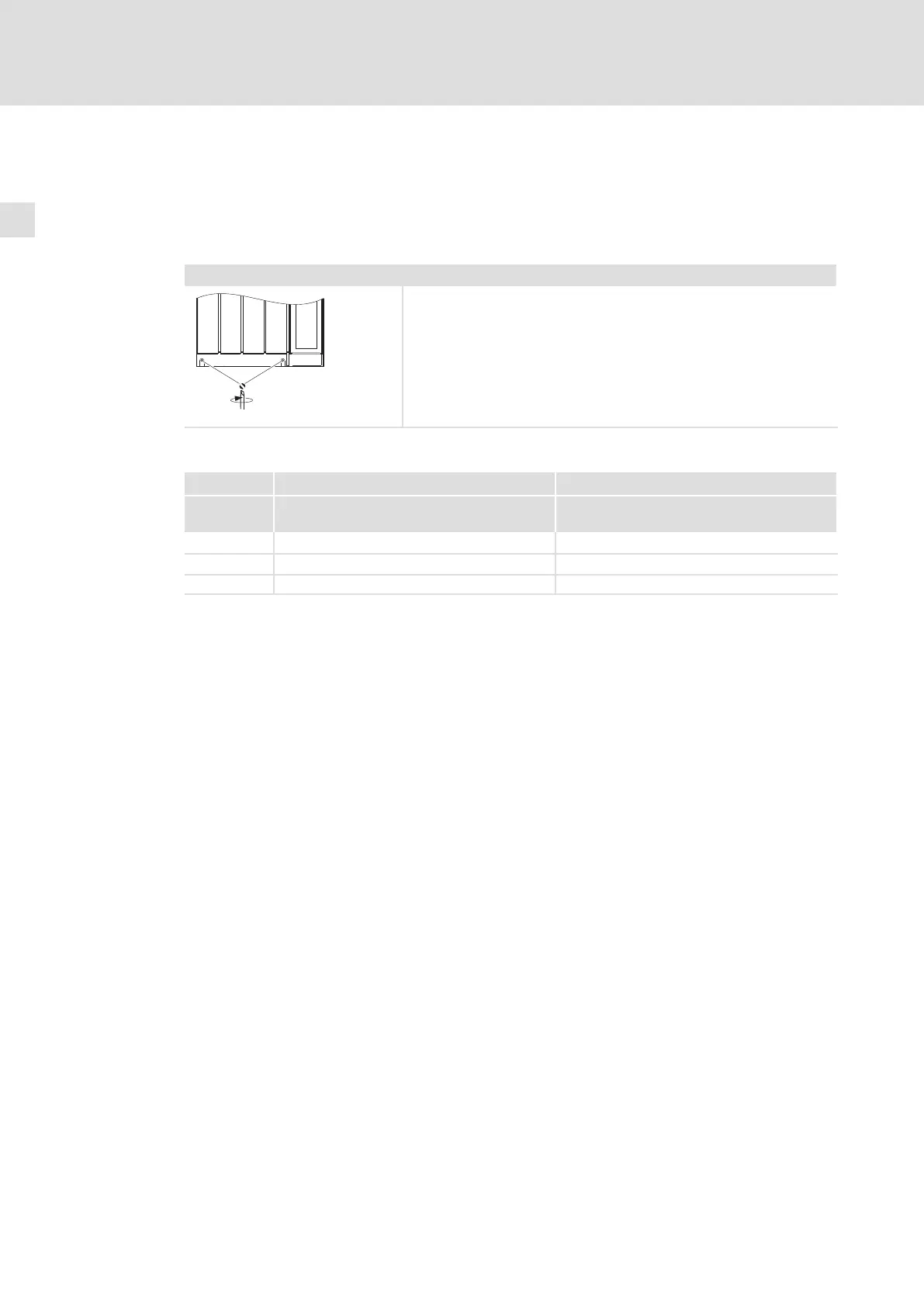

4.2 Standard devices in the power range 15 ... 30 kW
4.2.1 Important notes
The accessory kit is located inside the controller.
Remove the cover of the drive controller
0
1
1. Remove the screws 
2. Lift cover  up and detach it
9300vec113
Mass of the devices
9300 Standard device "Cold plate" device
Type EVF93xx−EV
[kg]
EVF93xx−CV
[kg]
EVF9327−xV 13.5 9.5
EVF9328−xV 15.0 9.5
EVF9329−xV 15.0 ˘
