4.4.3 Thermally separated mounting (push−through technique)
For mounting in push−through technique, the drive controller of type EVF93xx−EV must be
used. In addition, the mounting set EJ0010 for push−through technique is required.
ƒ For thermally separated mounting you have to modify the fan module. ( 159)
Dimensions
d2
d2
d2
d
b
g
e2
a
d1
h
h
e3
c2
c3
c4
e
e1
L
a1
d3
b1
c1
9300vec174

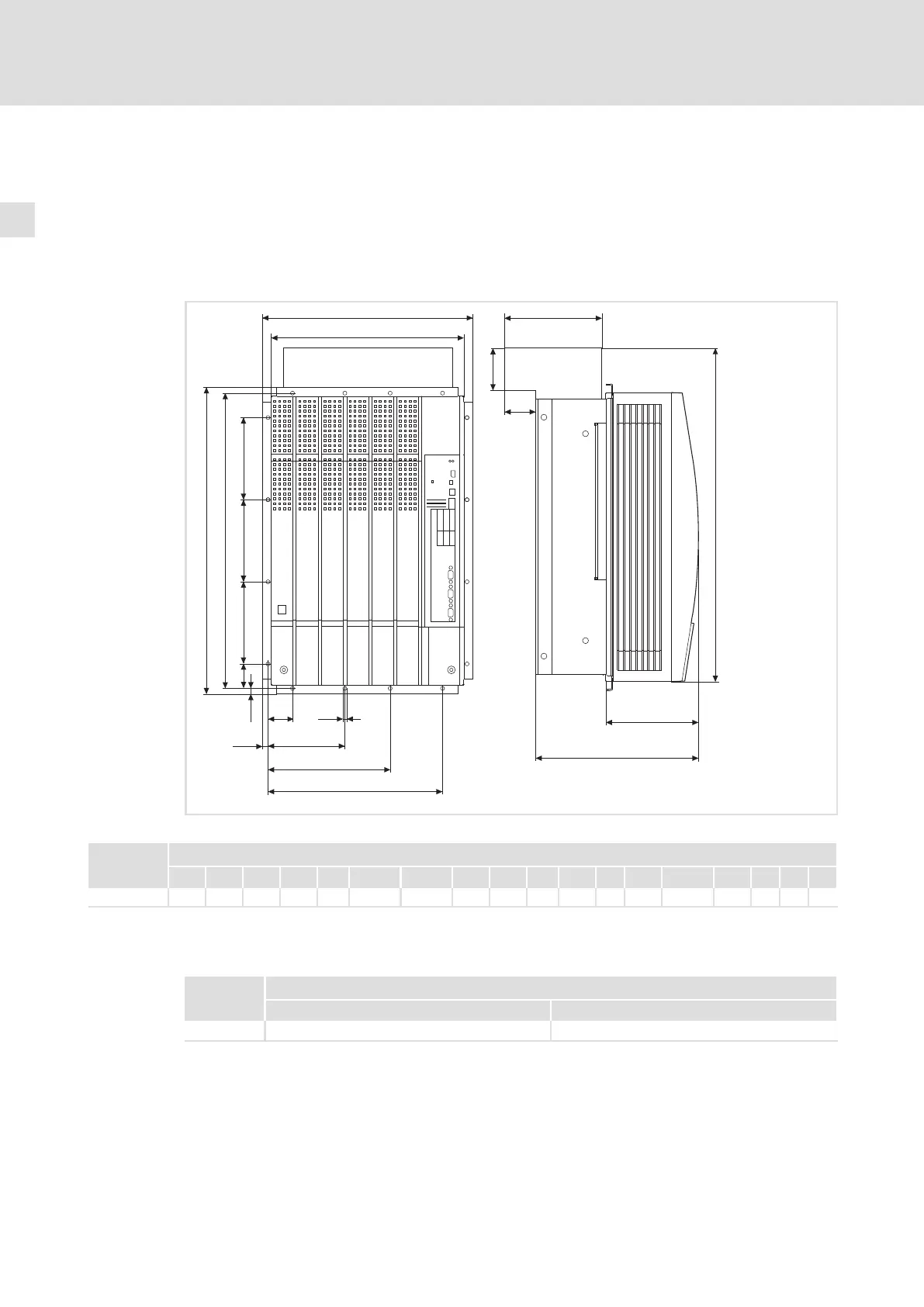

Fig. 4−10 Dimensions for thermally separated mounting 55 kW
9300 vector Dimensions [mm]
Type a a1 b b1 c1 c2 c3 c4 d d1 d2 d3 e
1)
e1 e2 e3 g h
EVF9331−EV 373 340 543 591 45 137.5 217.5 310 525 45 145 81 285 163.5 185 66 7 9
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting cutout in control cabinet
9300 vector Dimensions [mm]
Type Width Height
EVF9331−EV 320 515
