Electrical installation
Standard devices in the power range of 55 kW
Motor connection
5
195
EDKVF9333V DE/EN/FR 7.2
T1
T2
PE
U
VW
2
3
0
1
U, V, W,
PE
M8
15 Nm
132 lb-in
}
+
PE
M5x12
3 Nm (26.5 lb-in)
9300vec124

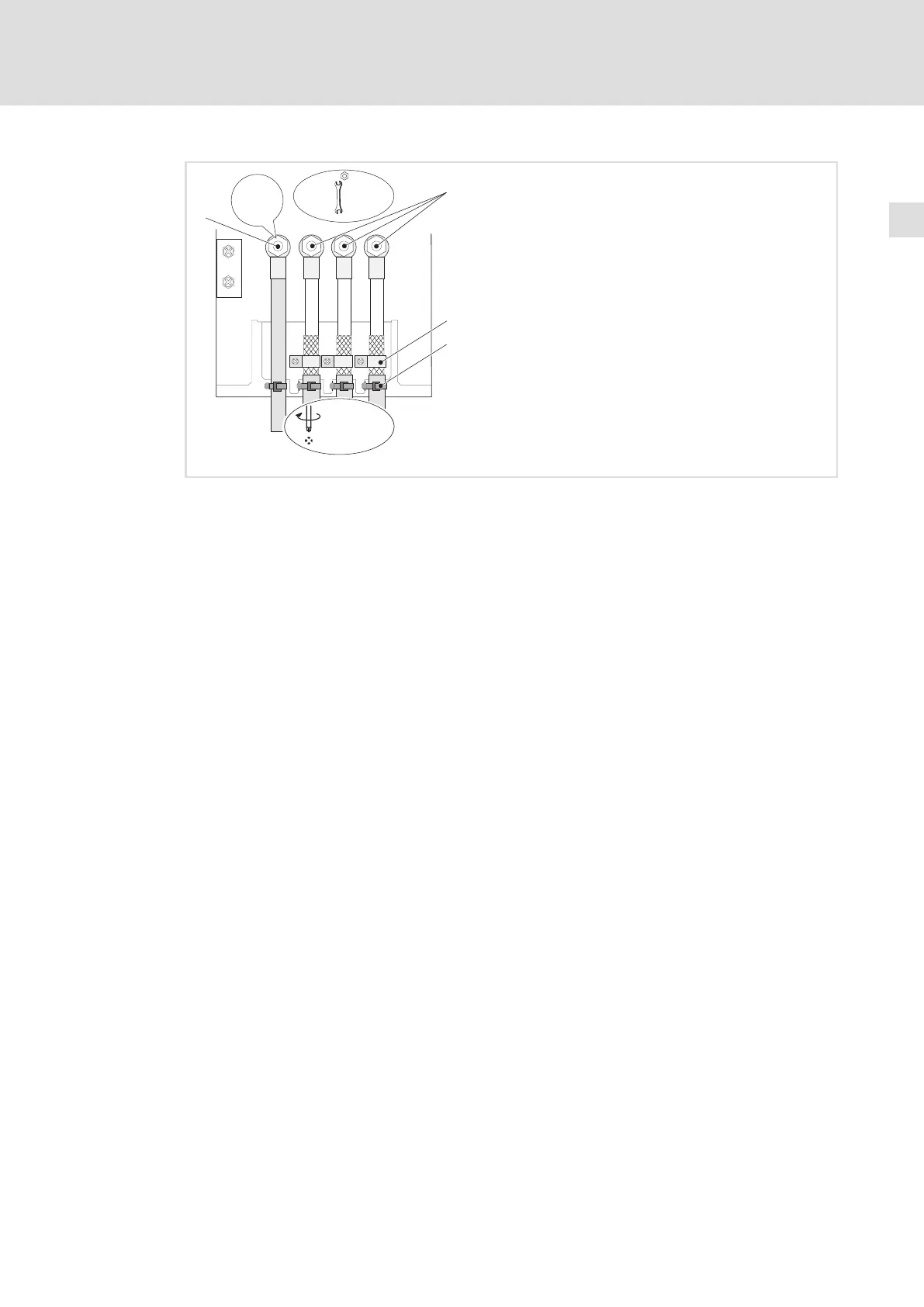

Fig. 5−19 Motor connection with KTY thermal sensor
PE stud
PE cable connection with ring cable lug
U, V, W
Motor cable connection
Check the correct polarity. Observe maximum length of the motor cable.
Max. connectable cable cross−section: 120 mm
2
with ring cable lug
Shield clamps
Place shields of motor cable with large surface on the shield sheet and fasten with shield
clamps and M5 × 12 mm screws
Cable ties
Strain relief of motor cable
