12-10
Maintenance

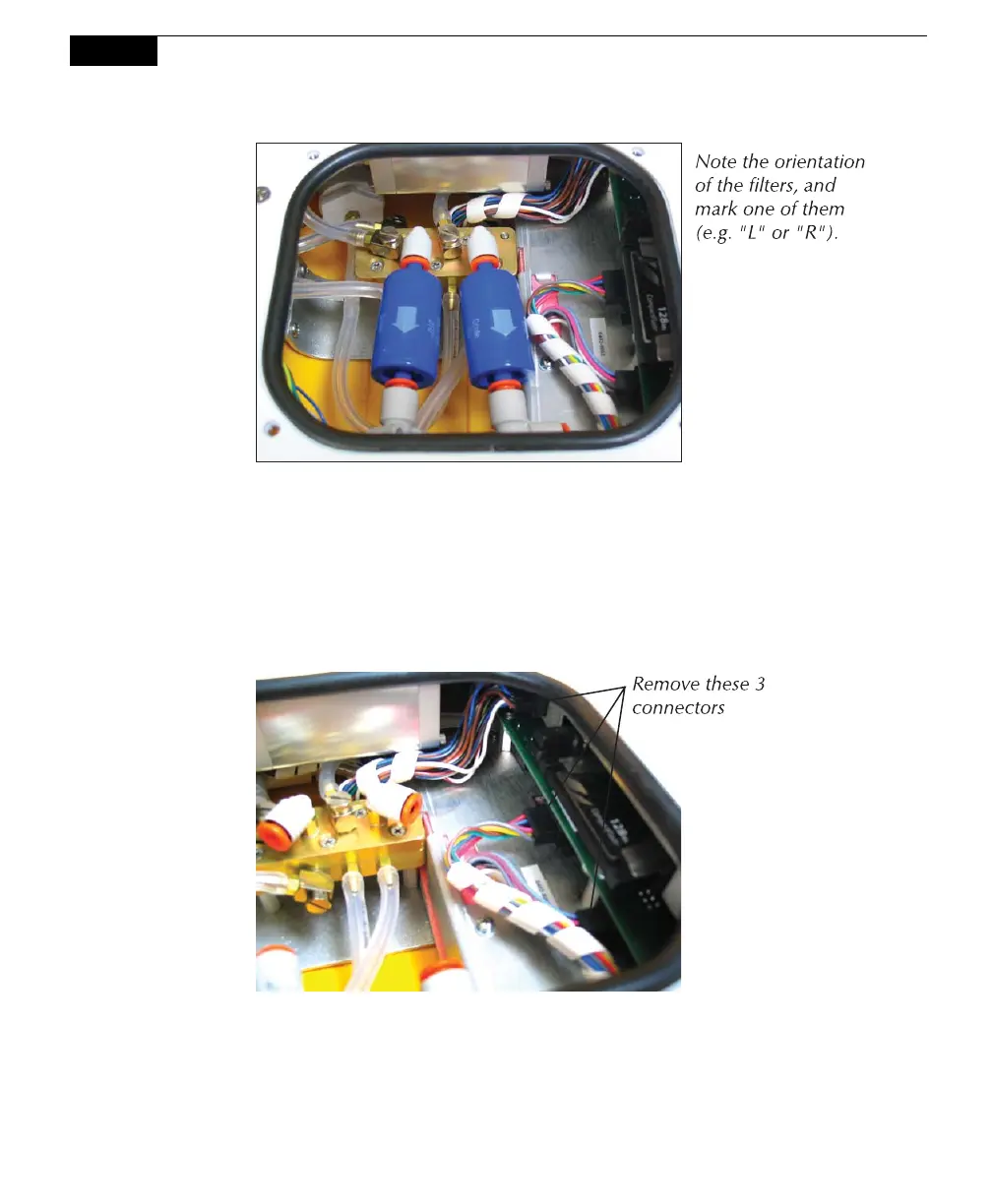

Remove both air filters by pressing the orange part of the quick-connect
fittings toward the white part of the connector and pulling the filter out.
4. There are three electrical connectors that must be removed. Two of them are
on a single wiring harness, just to the right of filters in the photo above; the
third is about two inches further back from them, just beyond the edge of the
access panel, as shown below.
Pull straight out on the connectors to remove them. The large connector
under the access panel can be difficult to reach; you can gently pull on the
wire harness and slowly rock the connector back and forth to remove it, if
necessary. When reinserting the connector, make sure that you check the pin
alignment before pushing the connector into place, as the upper right hand
side pins can easily become bent if misaligned.
