12-32
Maintenance

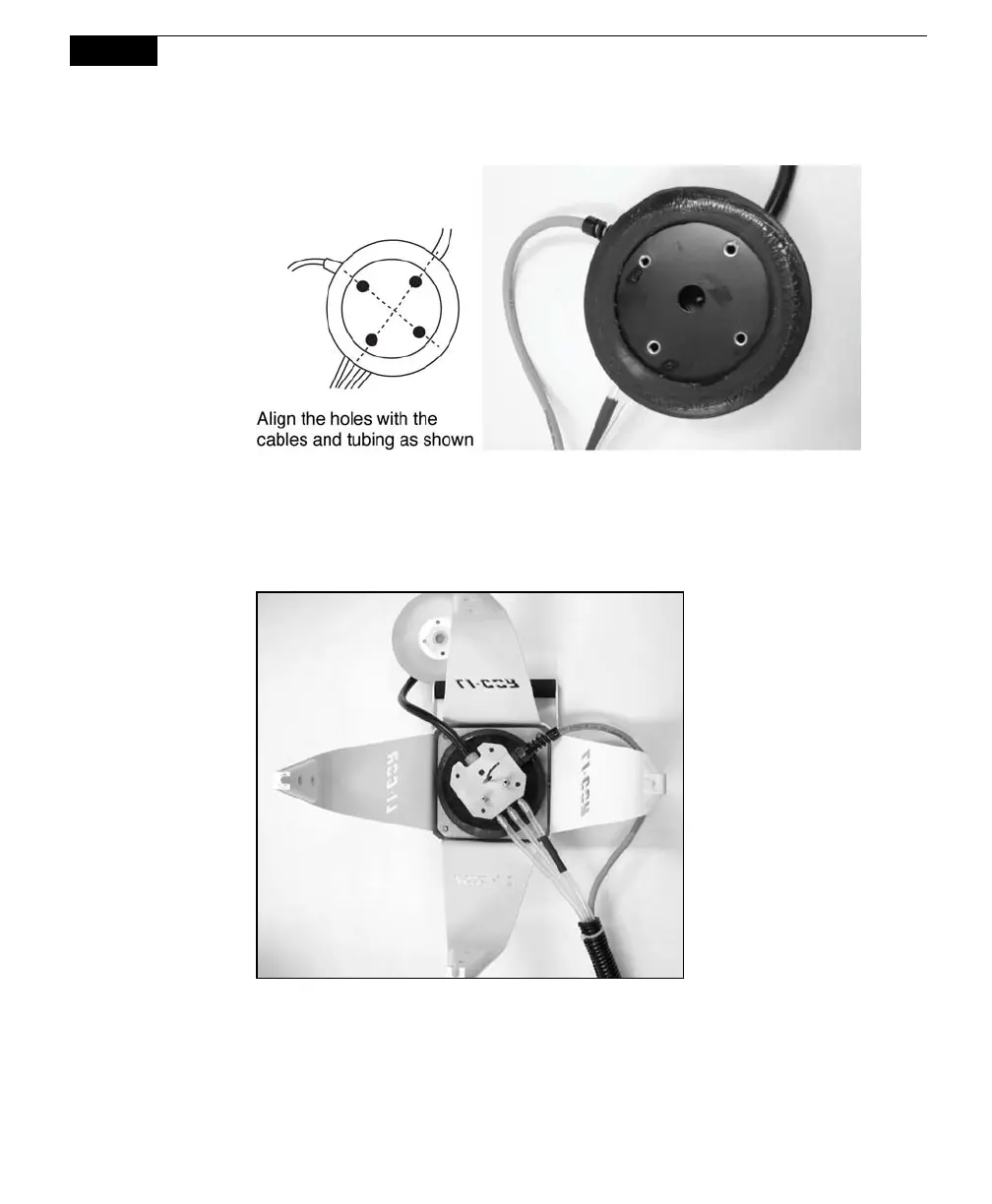

15. Re-insert the bellows assembly into the support frame. Make sure that the
plastic standoffs are still present on the four studs on the support frame. Note
too that the gray control cable should extend around the outside of one of the
support struts, as shown below.
16. Re-attach the chamber bowl, making sure to insert the sensor wire through the
small hole at the center of the bowl.
17. Re-attach the bottom mounting plate with the four nuts removed in Step 2.
18. Re-attach the top plate of the pressure vent using four thumb screws. The
finished assembly should appear as shown below.
