Liebert Hipulse E - 300 Kva UPS Module with 6 Pulse Rectifier - Top and Base View

Installation Manual Liebert Hipulse E Chapter 6 – Installation Drawing
Single or '1+N' UPS System
(07/04) Page 6-3

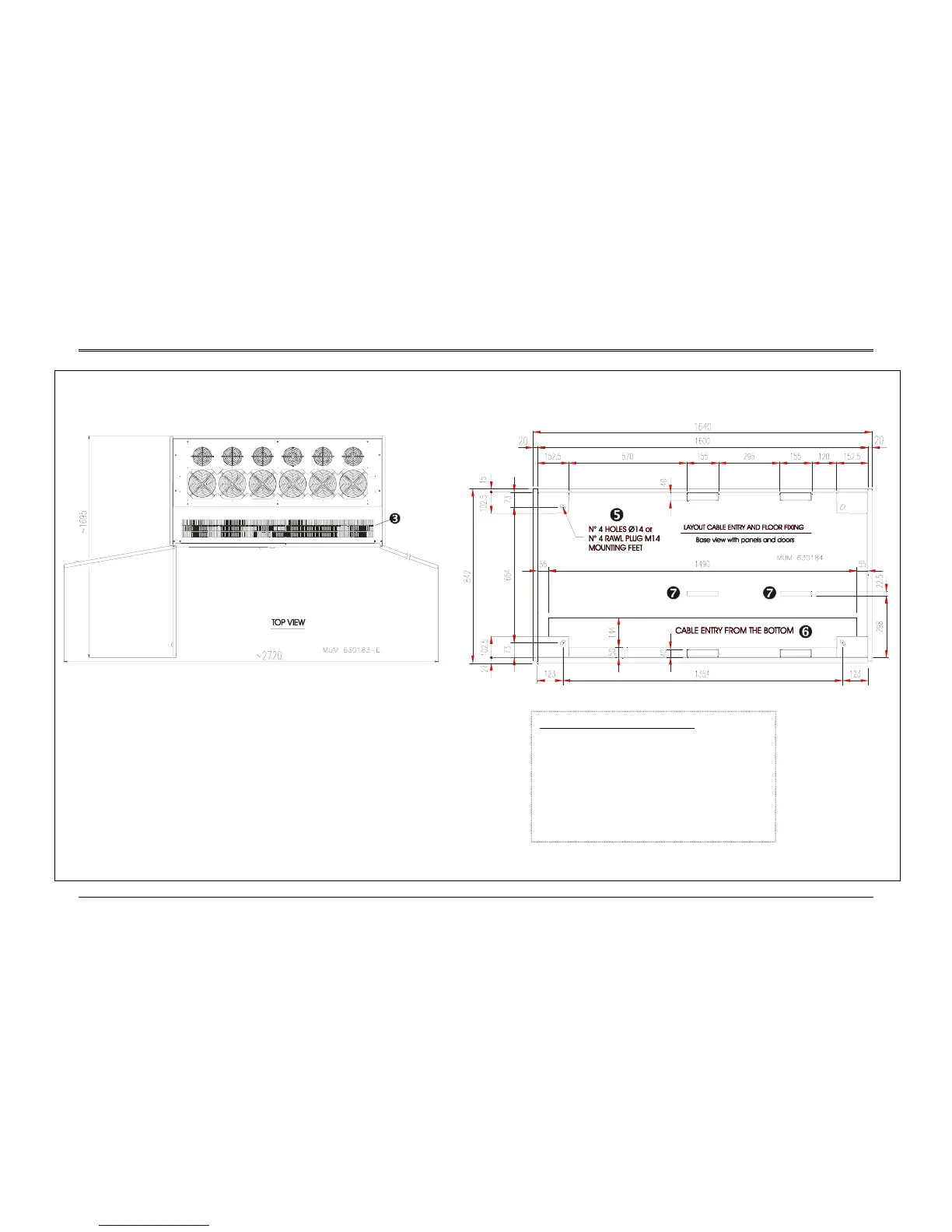

6.1.2 300kVA UPS Module with 6 pulse rectifier – Top and base view
Layout cable entry and floor fixing
B
ase view with panels and doors
5. N°4 holes ∅ 14 for securing unit to floor (if
required)
- N° 4 rawl plug M14 -
- Mounting feet
6. Bottom cable entry
7. Load supporting feet
A
ll dimensions are in mm.
