Liebert Hipulse E - Top Cable Entry Option

Chapter 6 – Installation Drawing Liebert Hipulse E Installation Manual
Single or '1+N' UPS System
Page 6-20 (07/04)

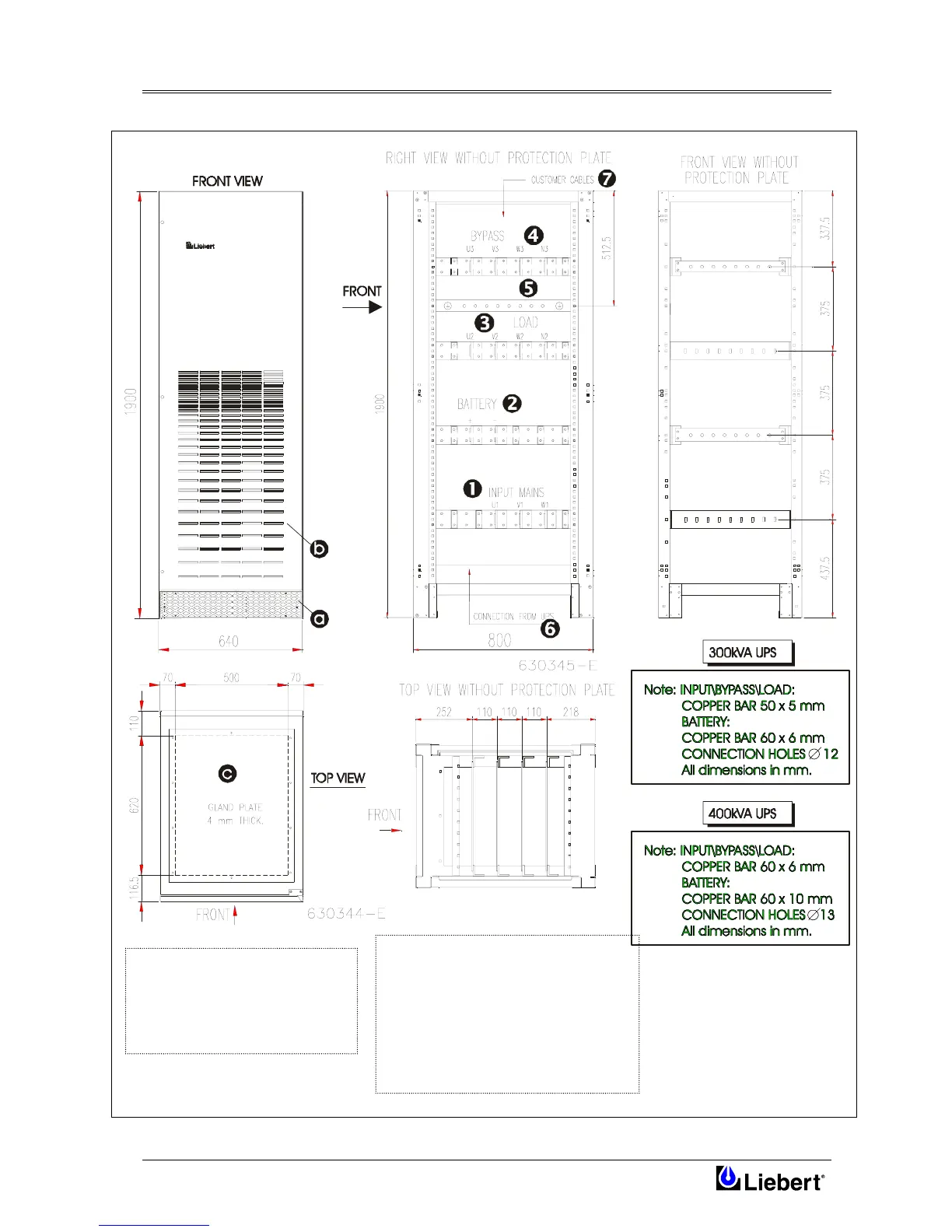

6.1.19 Top Cable entry option
1. Main input connections (U1-V1-W1)
2. Battery connections (+/-)
3. Output connections (N2-U2-V2-W2)
4. Bypass connections (U3-V3-W3-N3)
5. Earth
6. Connection from UPS
7. Customer cables
A
ll dimensions are in mm.
a. Removable grille and panels for
lifting with fork-lift truck.
b. Air inlet grille
c. Top cable entry (user to size and
cut holes for the cables to be used)
