Liebert Hipulse E User Manual

Installation Manual Liebert Hipulse E Chapter 6 – Installation Drawing
Single or '1+N' UPS System
(07/04) Page 6-17

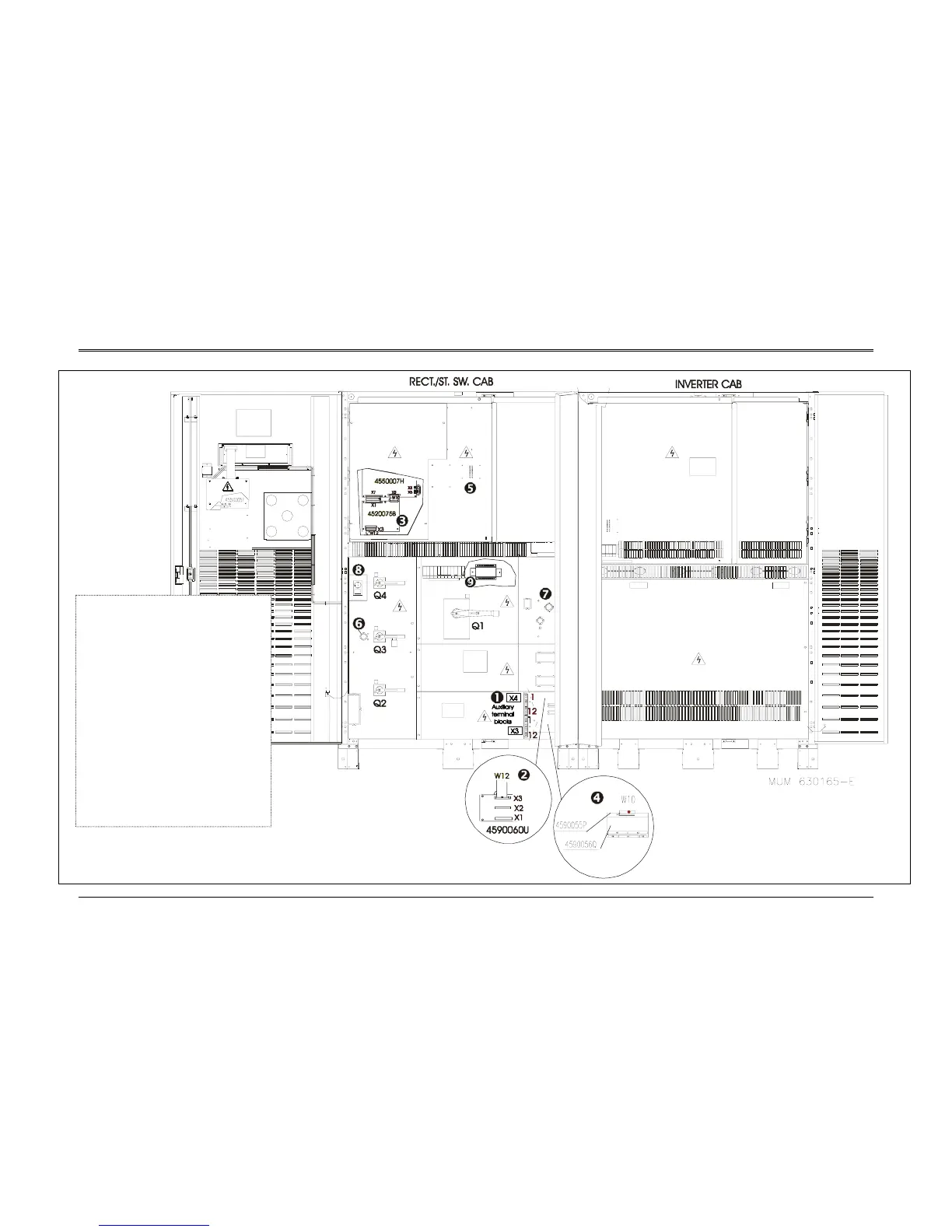

6.1.16 400 kVA UPS – Front view open doors
1. Auxiliary terminal blocks (X3-X4).
2. Parallel connection board P/N
4590060U (option for multimodule
configuration only)
3. Parallel logic P/N 4520075B (option
for multimodule configuration only)
4. Alarm interface board P/
N
4590055P
and extension alarm interface board P/N
4590056Q (Options)
5. Fan failure alarm indicators (Option)
6. Mechanical Castell Interlock option
7. Electromechanical Castell Interlock
option
8. Socket (250Vac max 1A)
9. Battery ground fault detection
(Option)
