Liebert Hipulse E - 400 Kva UPS Module with 6 Pulse Rectifier (or 12 Pulse Rectifier) with Top Cable Entry Option - Base and Top View

Chapter 6 – Installation Drawing Liebert Hipulse E Installation Manual
Single or '1+N' UPS System
Page 6-16 (07/04)

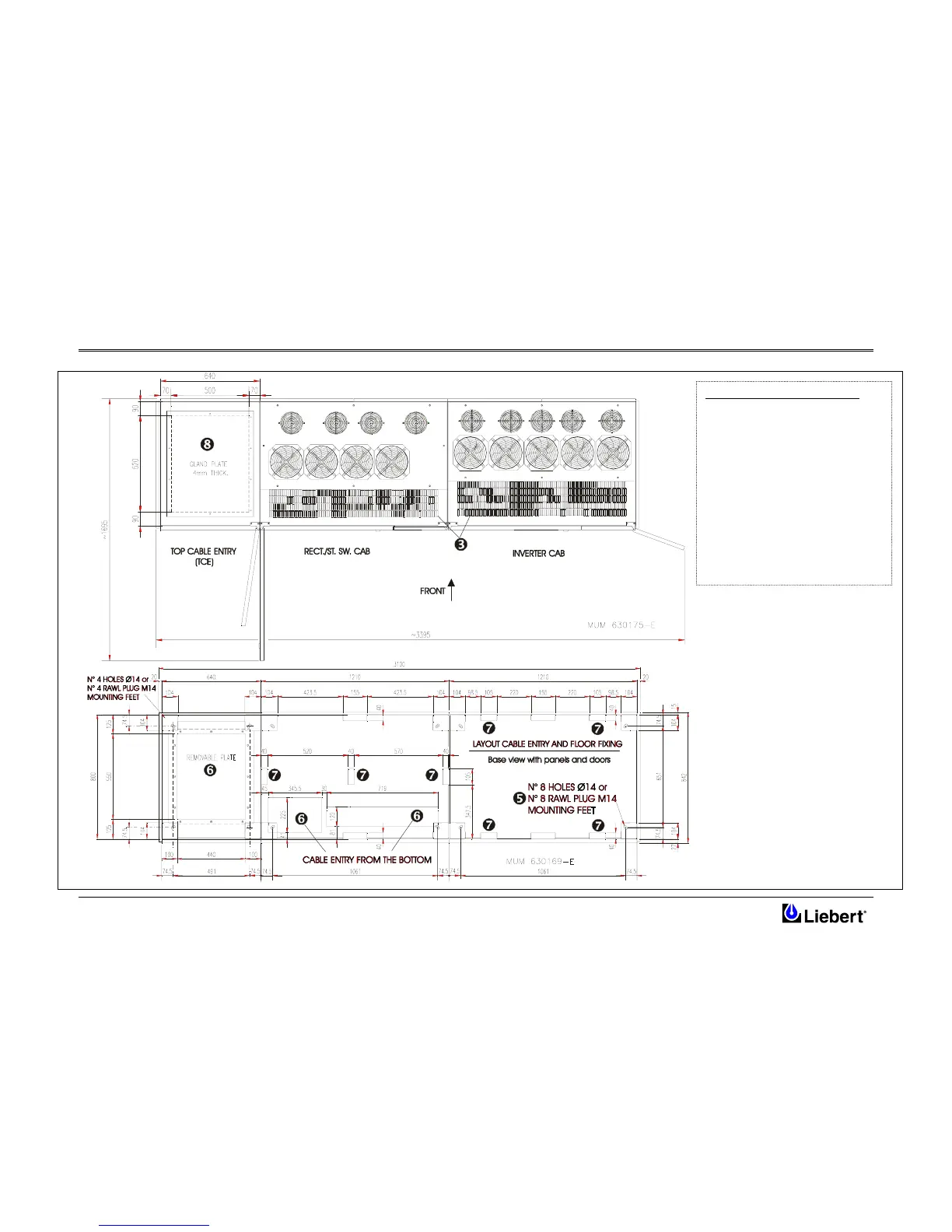

6.1.15 400kVA UPS Module with 6 pulse rectifier (or 12 pulse rectifier) with Top Cable entry option – base and top view
Layout cable entry and floor fixing
B
ase view with panels and doors
5. N°12 holes ∅ 14 for securing unit to
floor (if required)
- N° 12 rawl plug M14 -
- Mounting feet
6. Bottom cable entry
7. Load supporting feet
8. Top cable entry ( user to size and cut
holes for the cables to be used)
A
ll dimensions are in mm.
