Liebert Hipulse E - RS232 Communications for 300-400 Kva UPS (Option) - Modem and NIC Card Locations

Chapter 6 – Installation Drawing Liebert Hipulse E Installation Manual
Single or '1+N' UPS System
Page 6-24 (07/04)

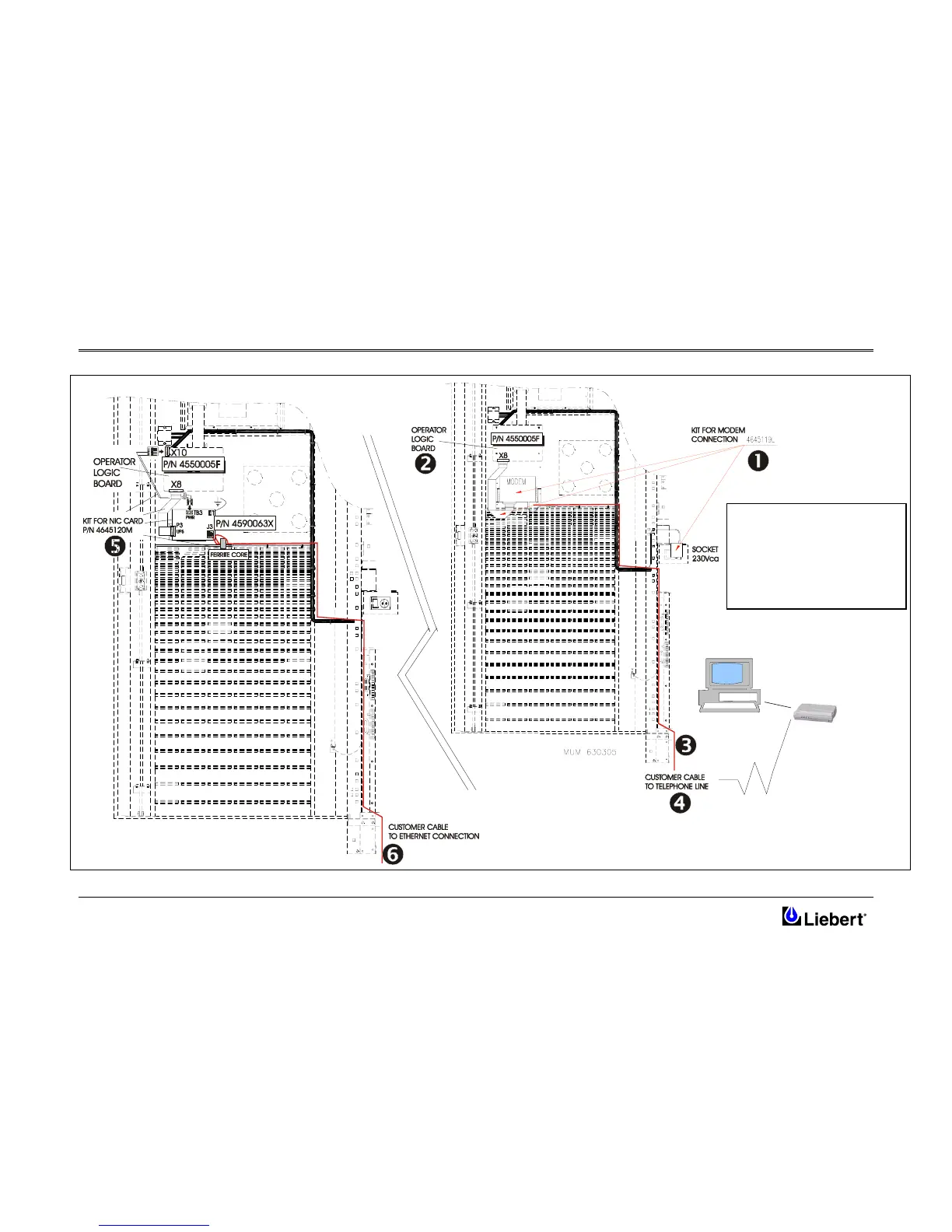

6.1.23 RS232 Communications for 300-400 kVA UPS (Option) – Modem and NIC card locations
1. Kit for modem connection
2. Operator Logic board
3. Customer cable
4. To telephone line
5. Kit for NIC card
6. To Ethernet connection
.
