Liebert Hipulse E - 300 Kva UPS Module with 12 Pulse Rectifier with Top Cable Entry Option

Chapter 6 – Installation Drawing Liebert Hipulse E Installation Manual
Single or '1+N' UPS System
Page 6-8 (07/04)

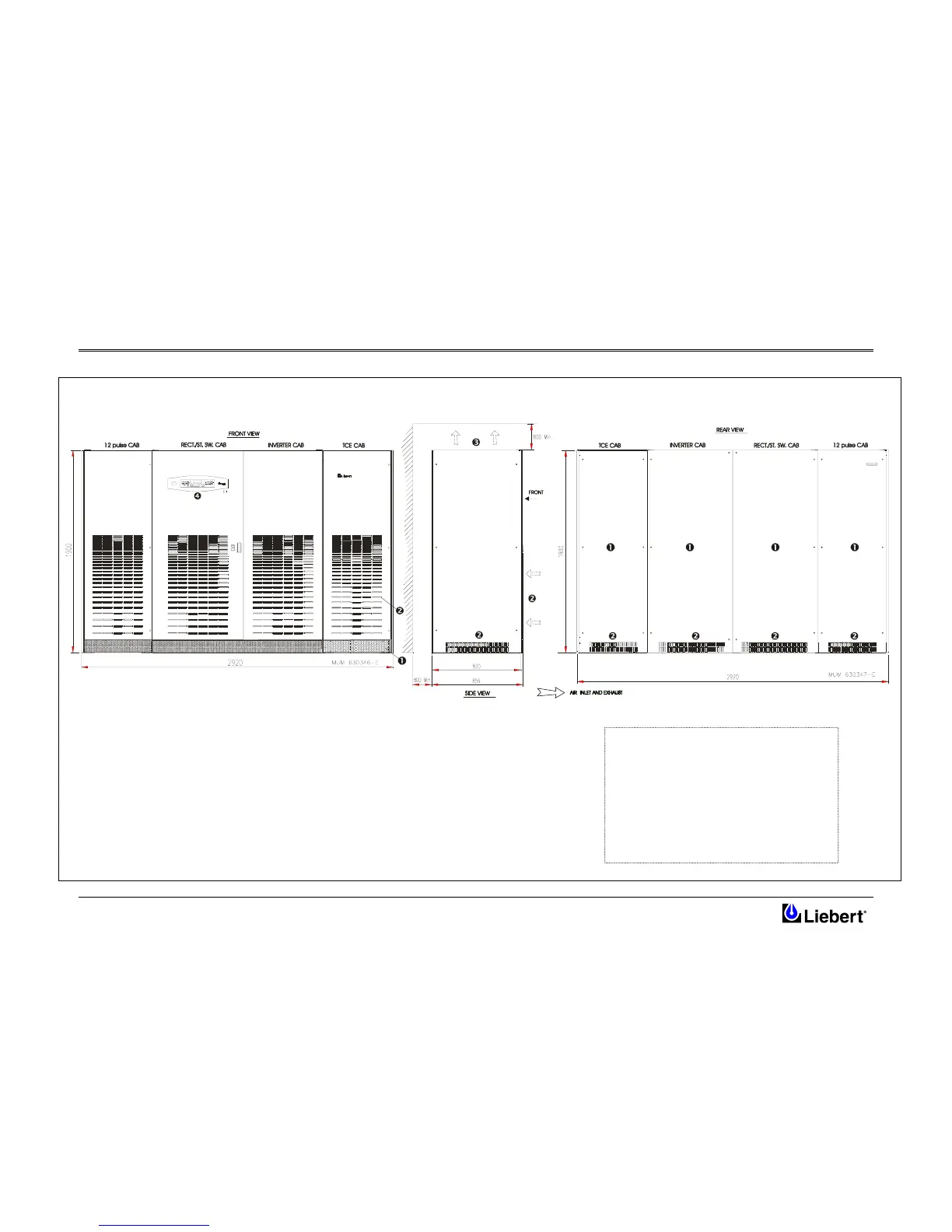

6.1.7 300kVA UPS Module with 12 pulse rectifier with Top Cable entry option
1. Removable grille and panels for lifting with
fork-lift truck.
2. Air inlet grille
3. Air exhaust
- 800 mm min. clearance above unit required for
air exhaust.
4. Operator control and display panel
A
ll dimensions are in mm.
