Liebert Hipulse E - 400 Kva UPS Module with 6 Pulse Rectifier (or 12 Pulse Rectifier) - Base and Top View

Chapter 6 – Installation Drawing Liebert Hipulse E Installation Manual
Single or '1+N' UPS System
Page 6-14 (07/04)

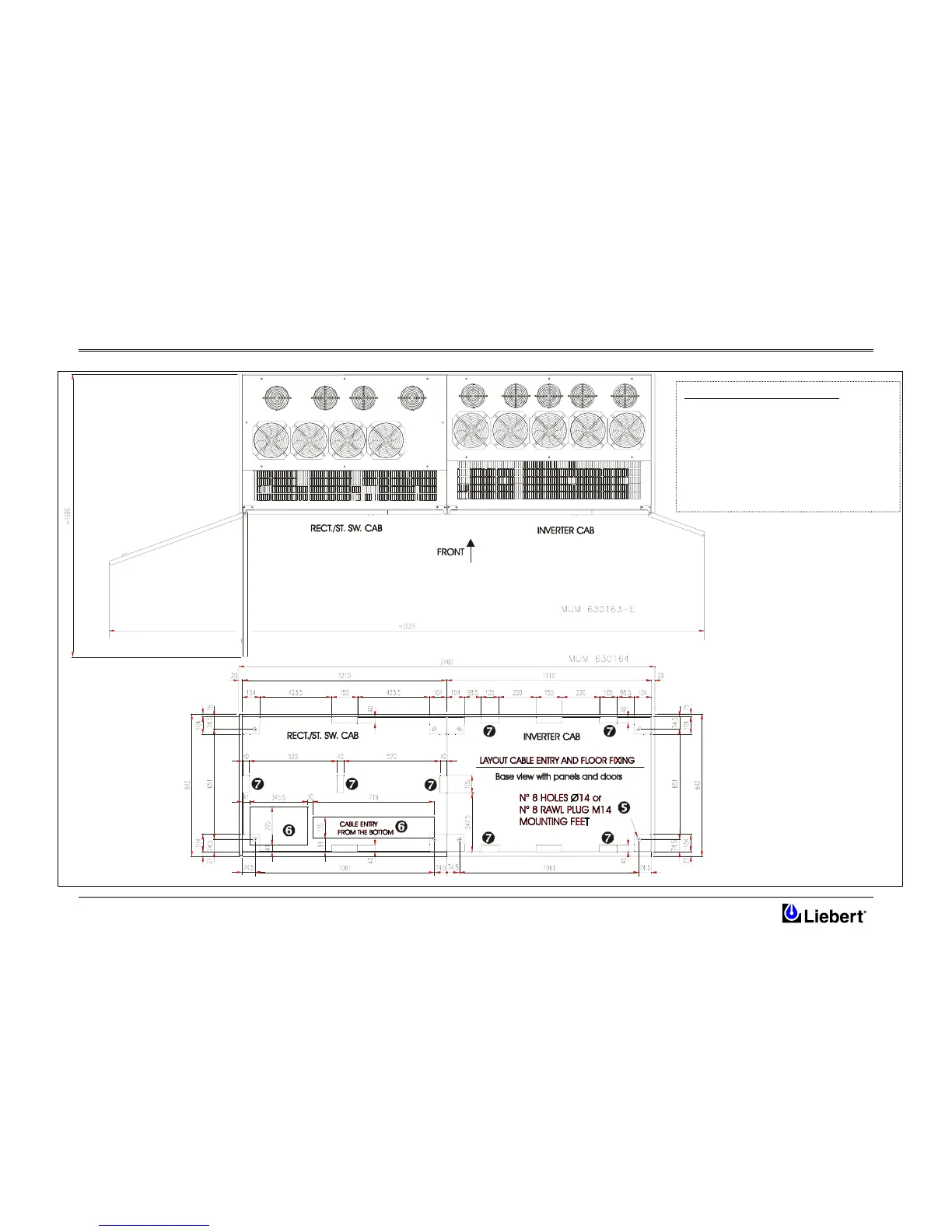

6.1.13 400kVA UPS Module with 6 pulse rectifier (or 12 pulse rectifier) – base and top view
Layout cable entry and floor fixing
B
ase view with panels and doors
5. N°8 holes ∅ 14 for securing unit to floor (if
required)
- N° 8 rawl plug M14 -
- Mounting feet
6. Bottom cable entry
7. Load supporting feet
A
ll dimensions are in mm.
