Liebert Hipulse E - Maintenance Bypass Cabinet (Option) - General View

Chapter 6 – Installation Drawing Liebert Hipulse E Installation Manual
Single or '1+N' UPS System
Page 6-22 (07/04)

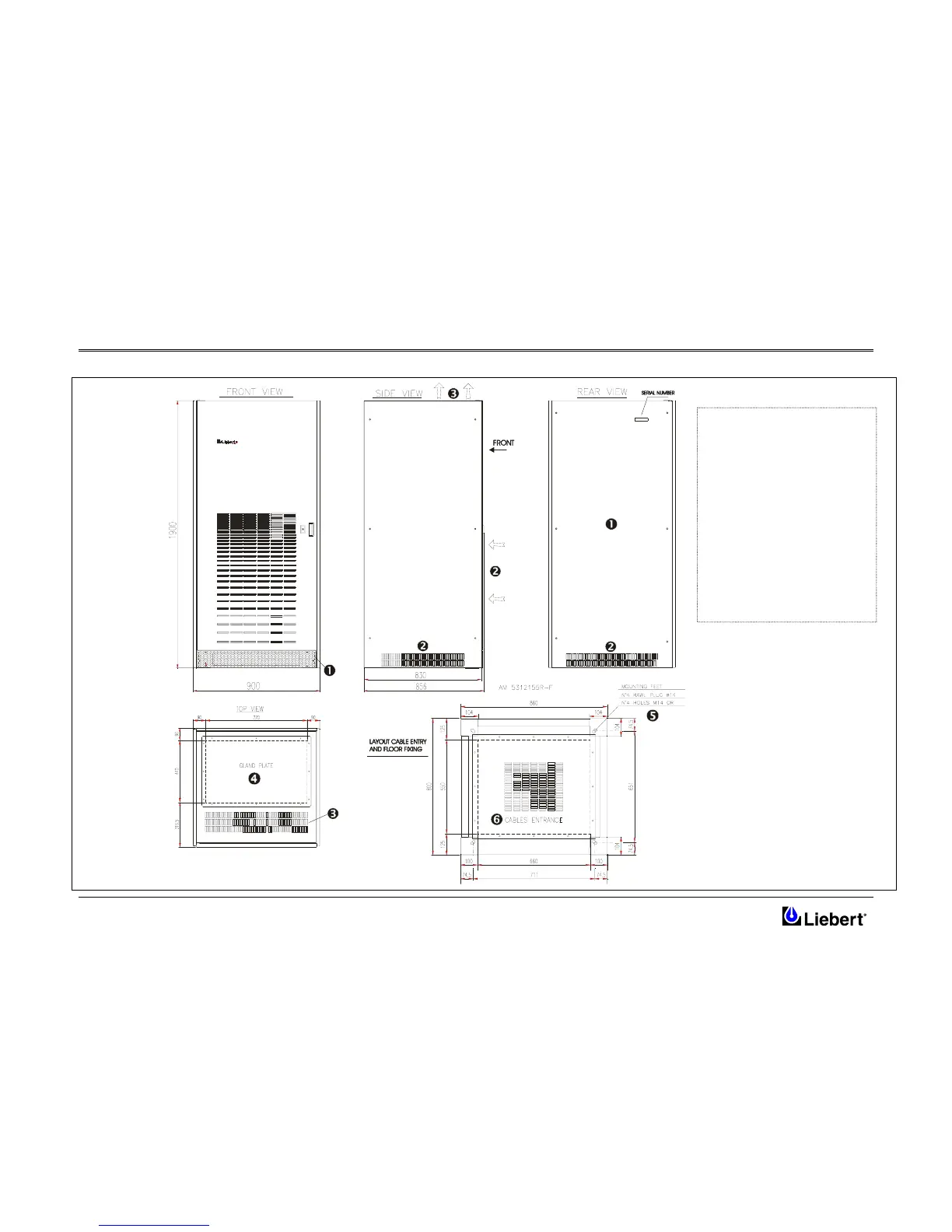

6.1.21 Maintenance Bypass cabinet (Option) – general view
1. Removable grille and panels for
lifting with fork-lift truck.
2. Air inlet grille
3. Air outlet grille
4. Top cable entry (user to size and
cut holes for the cables to be used)
5. N°4 holes ∅ 14 for securing unit
to floor (if required)
- N°4 rawl plug M14 -
- Mounting feet
6. Bottom cable entry
A
ll dimensions are in mm.
