Liebert Hipulse E - 300 Kva UPS Module with 12 Pulse Rectifier

Chapter 6 – Installation Drawing Liebert Hipulse E Installation Manual
Single or '1+N' UPS System
Page 6-6 (07/04)

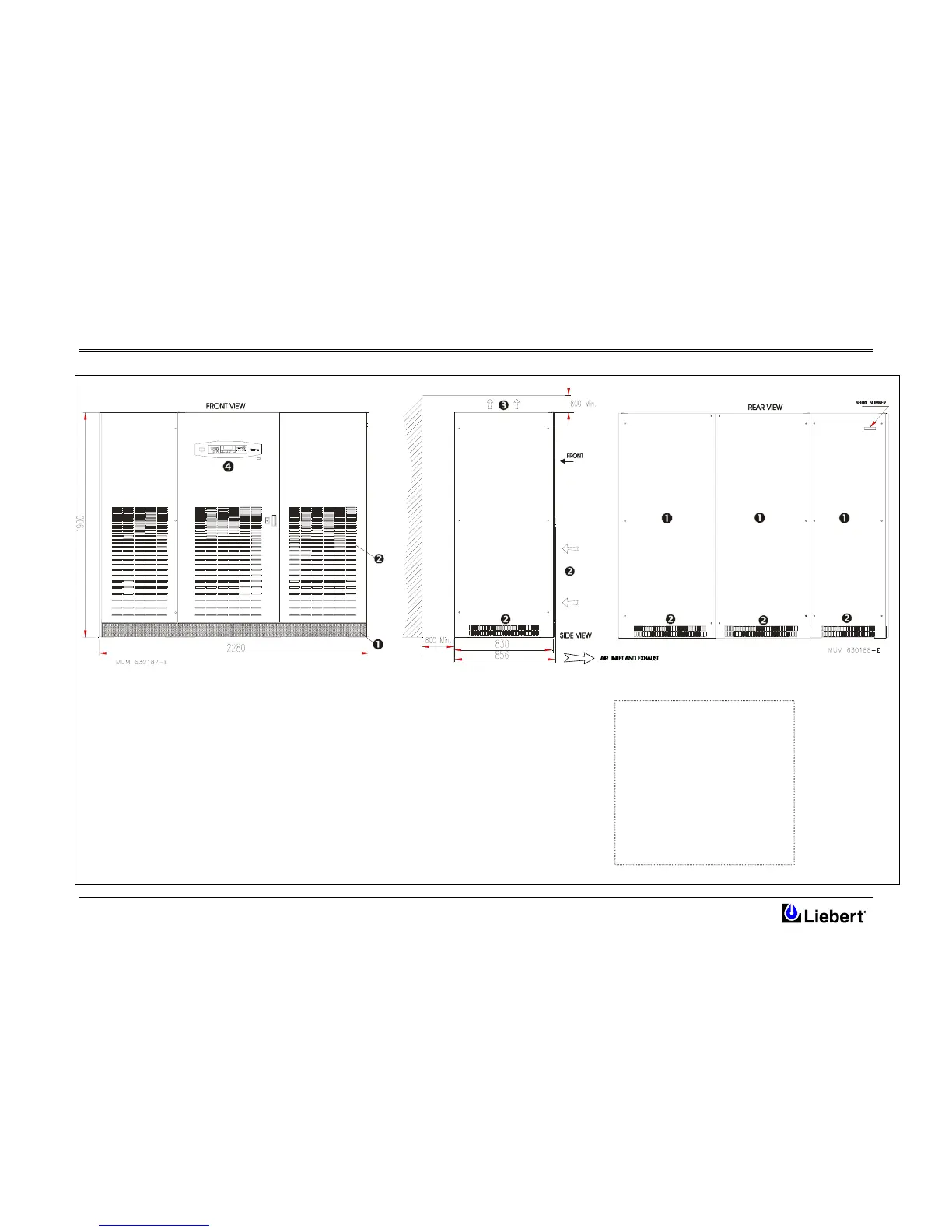

6.1.5 300kVA UPS Module with 12 pulse rectifier
1. Removable grille and panels for
lifting with fork-lift truck.
2. Air inlet grille
3. Air exhaust
- 800 mm min. clearance above unit
required for air exhaust.
4. Operator control and display
panel
A
ll dimensions are in mm.
