6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 66
Numerous settings and parameters are available on the tabs, like:
▪
▪
▪
▪ RS-232 port settings of the device's local port.
Firmware Settings
The settings and the upgrade process is described in the Firmware Upgrade of TPS(2) Ports section.
The PoE-compatible Remote power feature can be enabled port by port under TPS link section and the
current state is shown in the following line

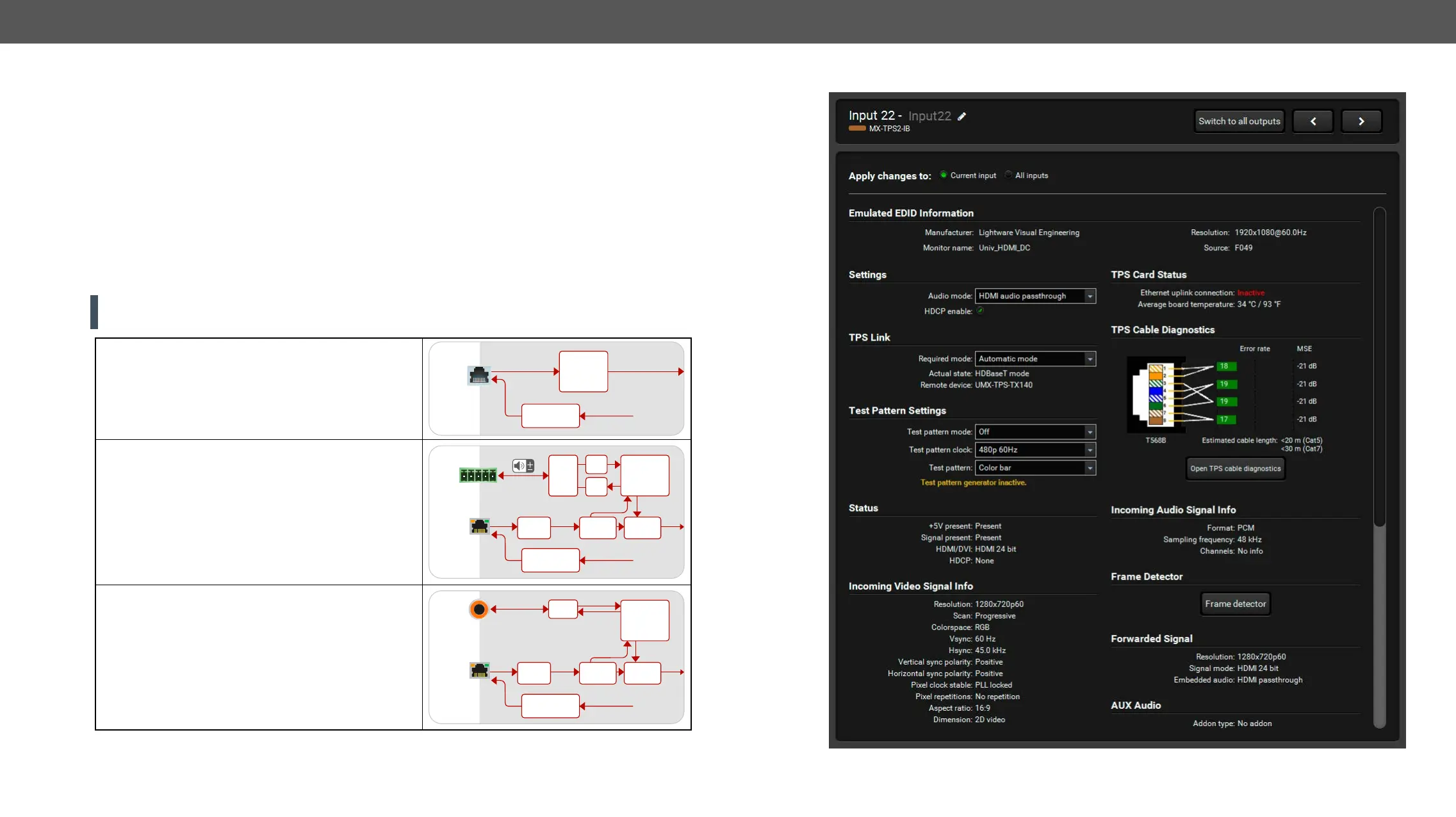

Port Diagrams
ATTENTION!
* Refers only to the four TPS ports of the board.
For detailed information about the audio settings see the Audio Options section.

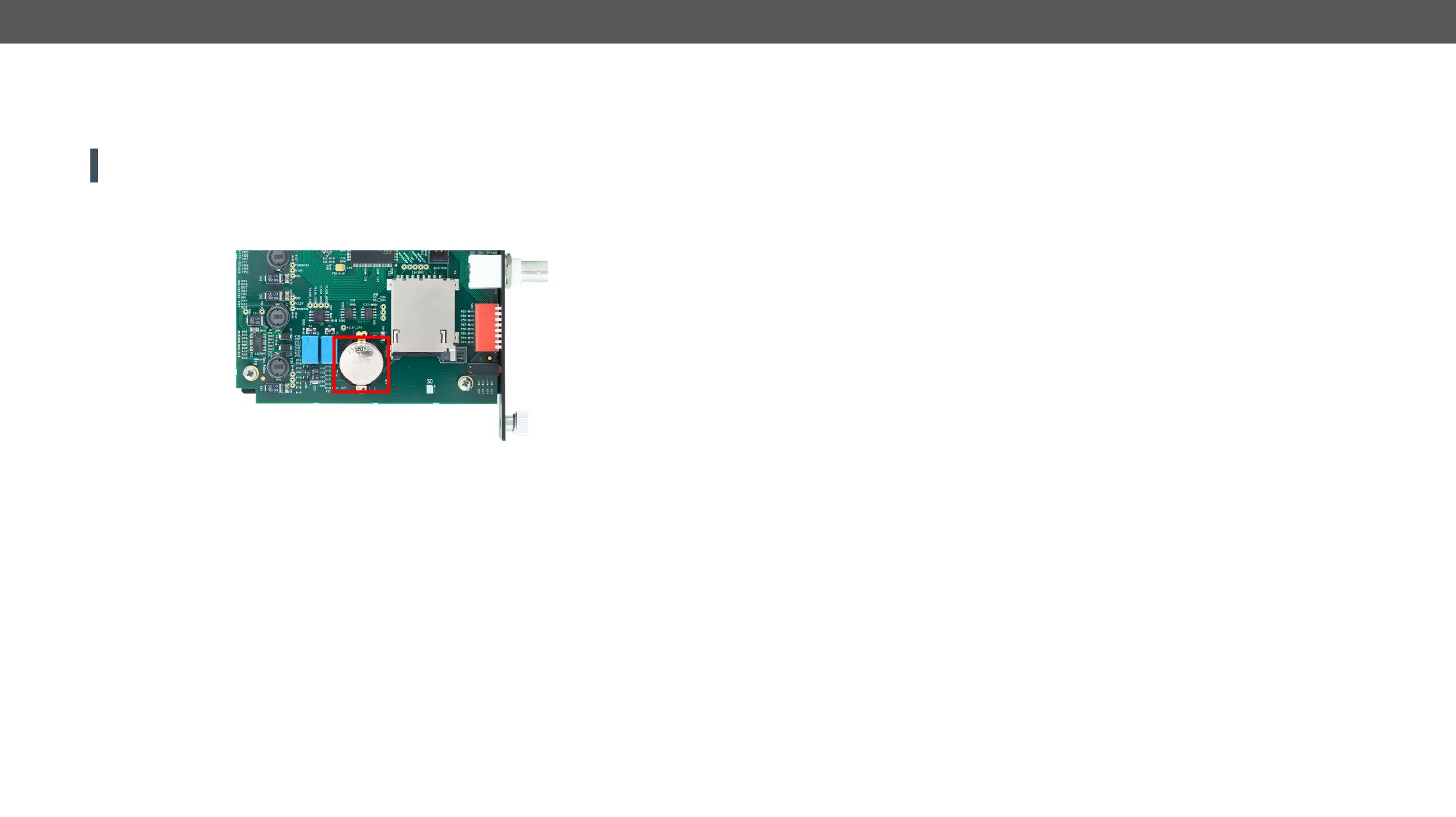

MX-TPS-IB
MX-TPS2-IB-P
MX-4TPS2-4HDMI-IB*
MX-4TPS2-4HDMI-IB-P*
Plain TPS input board with remote power support without
additional audio ports.
TPS
TPS IN
48V external
power
HDMI
HDBaseT
RX
Switchable PoE
Power Injector
MX-TPS-IB-A
MX-TPS2-IB-AP
MX-4TPS2-4HDMI-IB-A*
MX-4TPS2-4HDMI-IB-AP*
TPS input board with remote power support and
additional analog audio port. The additional audio port
can be used as an input (embedding the analog audio
in the video of the TPS signal) or it can be used as an
output (de-embedding the audio of the HDMI stream).
S/PDIF
crosspoint
ADC
HDBaseT
S/PDIF in
S/PDIF out
balanced
in/out
analog
audio
DAC
De-
embedder
Embedder
Switch
TPS IN
TPS HDMI HDMI
RX
48V external
power
Switchable PoE
Power Injector
MX-TPS-IB-S
MX-TPS2-IB-SP
MX-4TPS2-4HDMI-IB-S*
MX-4TPS2-4HDMI-IB-SP*
TPS input board with remote power support and
can be used as an input (embedding the digital audio
in the video of the TPS signal), or it can be used as an
output (de-embedding the audio of the HDMI stream).
TPS IN
RCA
S/PDIF
crosspoint
Switch
S/PDIF out
S/PDIF in
S/PDIF
in
out
TPS
De-
embedder
Embedder
HDBaseT
RX
HDM
HDM
I
I
48V external
power
Switchable PoE
Power Injector
TPS Input Port Properties (MX-TPS2-IB)
