LM 287 User Manual – 30.10.2023

3.1.1 Front lifter and quick coupling device

Depending on your choice, your machine is equipped with the A frame version A or rotating version B, or the three‐point

attachment device C.

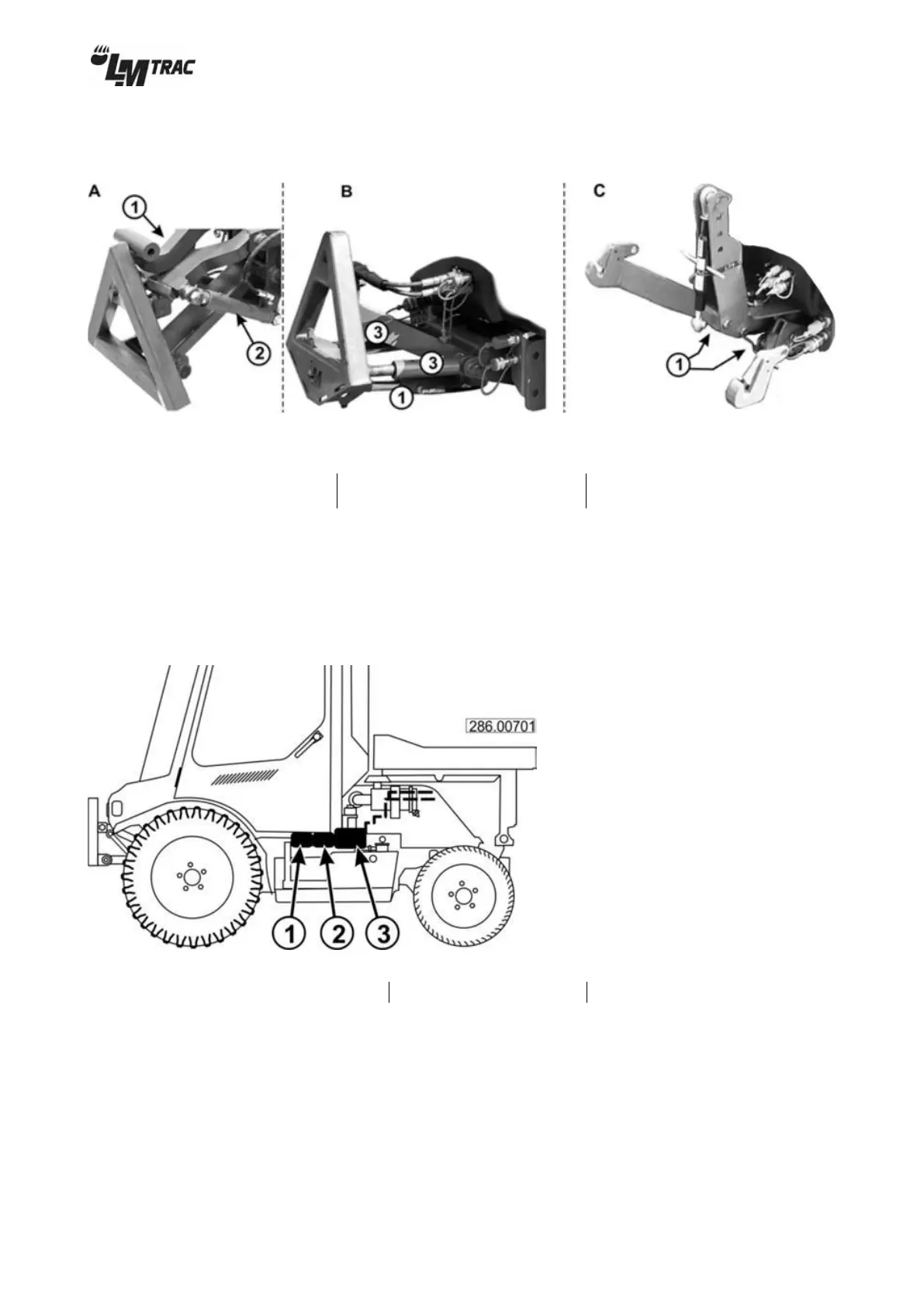

Figure 8

1. Lifting cylinders

2. Relief cylinder

3. Rotation cylinders

3.1.2 Hydraulic pumps

Figure 9

1. Steering and cylinder hydraulics pump

2. Motor hydraulics pump

3. Drive hydraulics pump
