Learn the symbols of your machine and their meanings to make the operation of the machine easy. On different
machines, the meaning of some symbols pertaining to the use of hydraulics may vary to some extent due to differences
in equipment and functions.

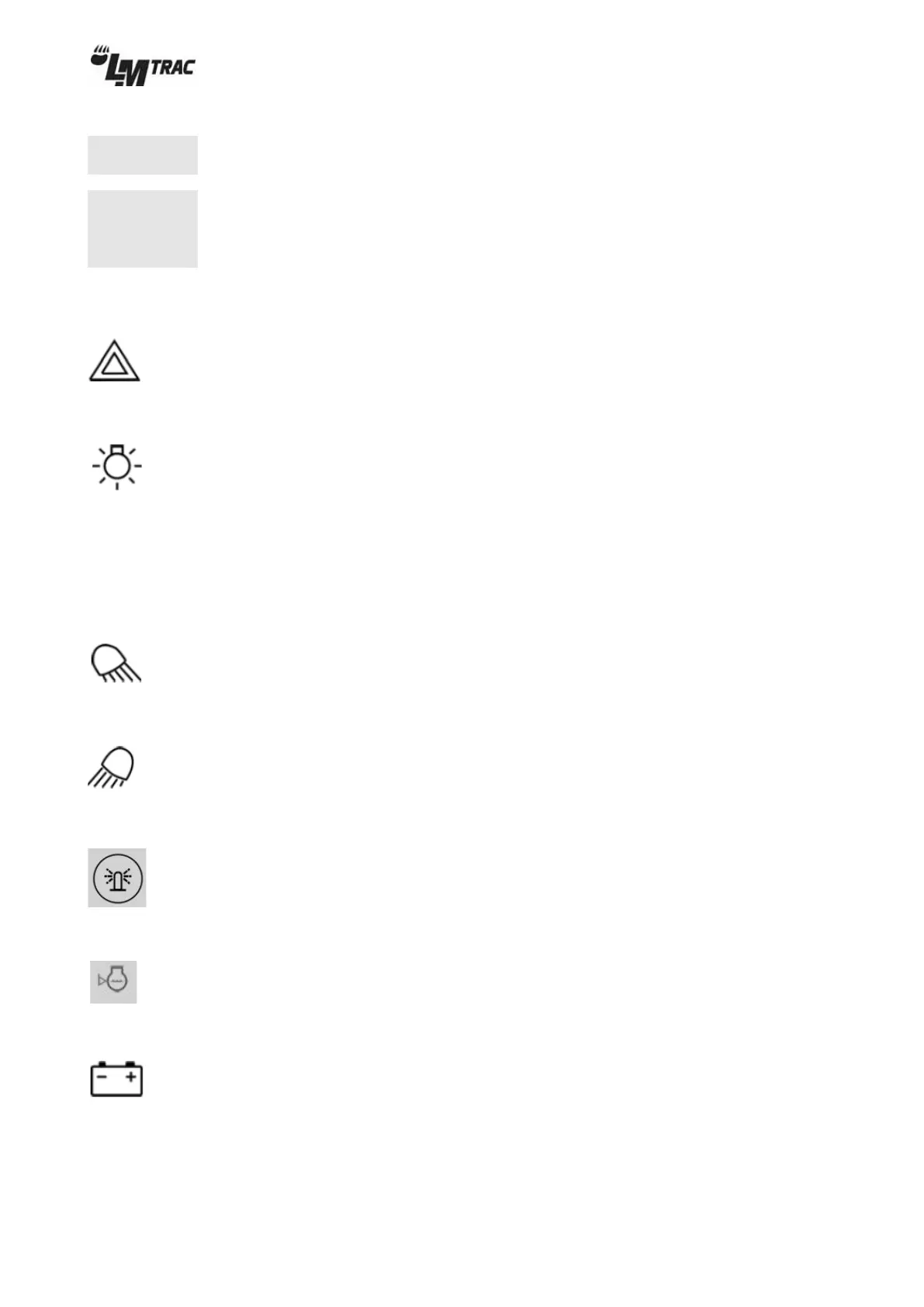

Hazard flasher switch
All the machine’s flashers can be switched on by pressing the lower part of this switch. The indicator on the switch
flashes in sync with the flashers.
Parking/headlight switch
The switch has 3 positions:
1. Top part pressed: Lights off
2. Centre position: Parking lights are on
3. Bottom part pressed: Headlights are on. Switching between low and high beam is done using the multi‐purpose switch
on the steering column. The parking lights function even if the power is turned off. Remember to switch off the headlights
before you stop the engine.
Front working light switch
The front working lights illuminate when the lower part of this switch is pressed. The indicator on the switch illuminates
when the front working lights are on.
Rear working light switch
The rear working lights illuminate when the lower part of this switch is pressed. The indicator on the switch illuminates
when the rear working lights are on.
Roof beacon switch
The beacon illuminates when the lower part of this switch is pressed. The indicator on the switch illuminates when the
beacon is on.
Engine temperature indicator
This gauge displays the temperature of the engine coolant.
Charge indicator
This indicator illuminates when an error in the charging system occurs. The light illuminates when power is switched on,
and turns off once the engine has started. If the indicator illuminates while driving, determine the cause.
