LM Trac 287 - Side Panel; Upper Panel

LM 287 User Manual – 30.10.2023
32
4.5.2 Side panel

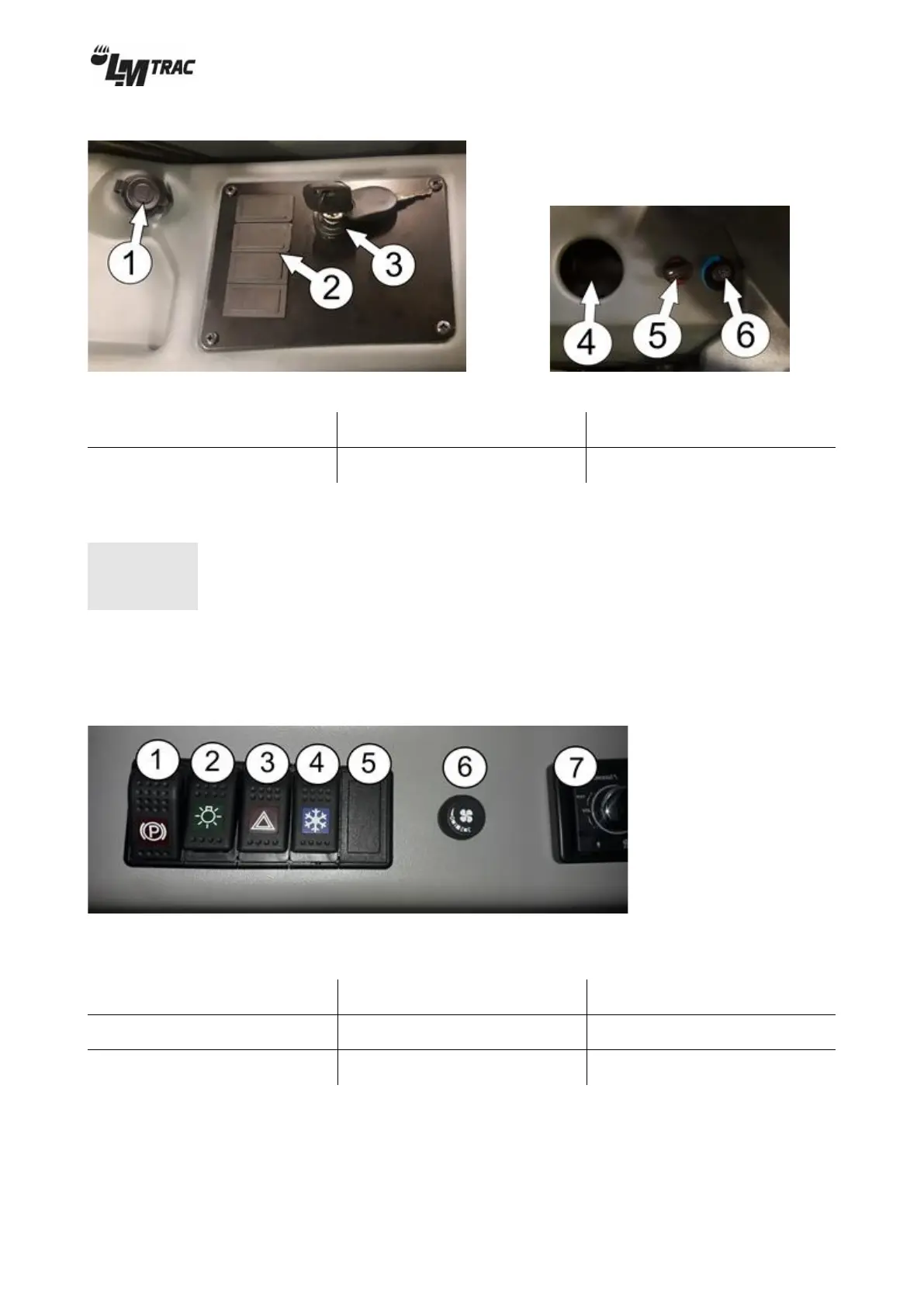

Figure 38 Figure 39
1. Power socket 12V
2. Panel for optional switches
3. Ignition switch
4. Cup holder
5. Heater temperature adjustment
6. Air conditioning adjustment
NOTE
The positions and number of switches may differ from the figure
depending on your machine's equipment.
4.6 Upper panel
Figure 40
Switches above windscreen:
1. Parking brake switch
2. Parking light / headlight switch
3. Hazard flasher switch
4. Air conditioning switch
5. Panel for optional switch
6. Cabin fan switch
7. Radio
