LM 287 User Manual – 30.10.2023
93
6.16.5 Handbrake Valve Coil replace (46)

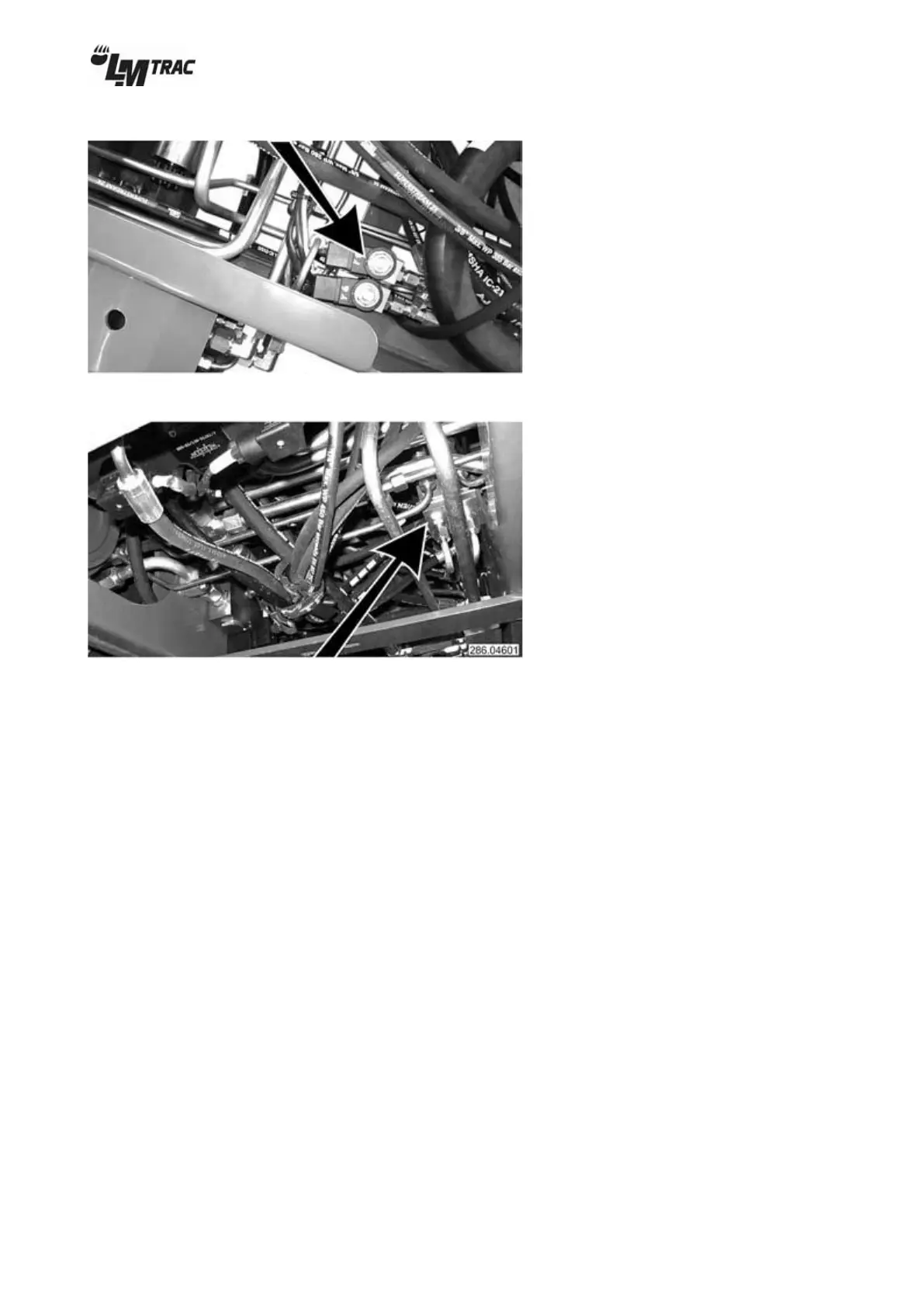

Figure 112 - The coil seen from above
Figure 113 - The coil seen from underneath the machine
The hand brake valve is located at the front of the machine chassis in the vicinity of the left front tire hub motor. The
valve coil (6031290223) is changed as follows:
► Disconnect the electric wires of the coil.
► Open the mounting nut, remove the coil and install a new one.
► Install and tighten the mounting nut.
► Connect the electric wires of the coil.
6.17 Maintenance every 3000 operating hours
Also carry out maintenance items 1‐41.
6.17.1 Thermostat replace (47)
Replace the thermostat (LMPE145206230) before it fails. This is a recommended preventive maintenance practice.
Replacing the thermostat reduces the chances for unscheduled downtime.
A thermostat that fails in a partially opened position can cause overheating or overcooling of the engine.
A thermostat that fails in the closed position can cause excessive overheating. Excessive overheating could result in
cracking of the cylinder head or piston seizure problems.
A thermostat that fails in the open position will cause the engine operating temperature to be too low during partial load
operation. Low engine operating temperatures during partial loads could cause an excessive carbon buildup inside the
cylinders. This excessive carbon buildup could result in an accelerated wear of the piston rings and wear of the cylinder
liner.
