5.2.4 Armrest, mirror, steering column and screen adjustment
Do the following adjustments before setting off:
Adjust the right armrest

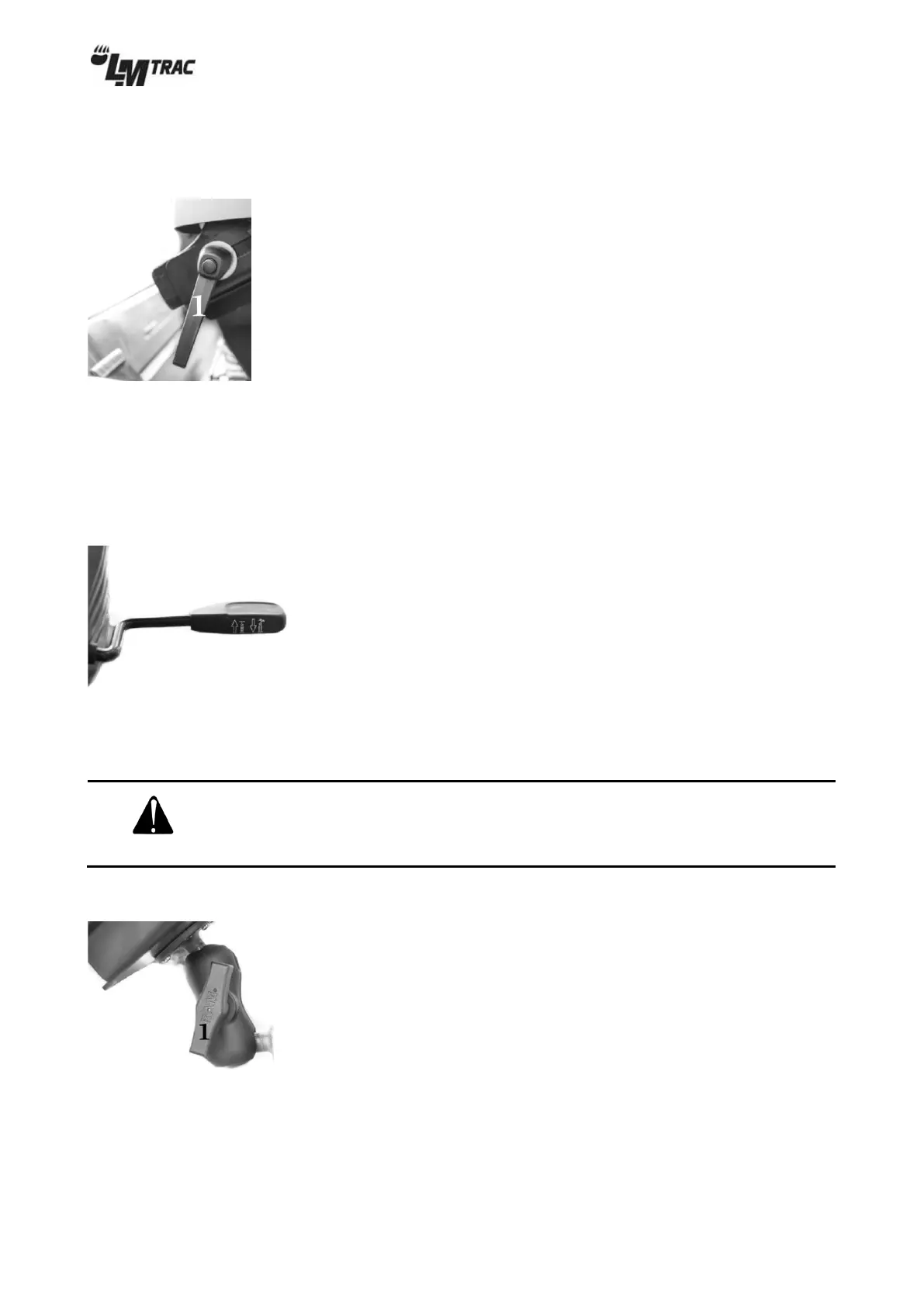

Figure 48
You can adjust the armrest by loosening the locking lever (1) in the rear corner of the armrest. Remember to tighten the
locking lever once the adjustment is ready.
Adjust mirrors
Adjust the external and internal mirrors before setting off.
Steering column adjustment
Figure 49
Adjust the tilt of the steering column by pressing the lever down and adjusting the tilt. Adjust the height of the steering
column by lifting the lever and adjusting the height. Adjust the steering column so that the controls are at a convenient
distance and you can maintain an ergonomic driving position together with the seat adjustments.
WARNING
Never adjust the steering column while the machine is moving!
Screen adjustment
Figure 50
Adjust the screen position if needed by loosening the ram mount (1) and tightening it when the screen angle is as
desired.
