3.3 Hydraulic connectors (depending on the equipment of your machine)

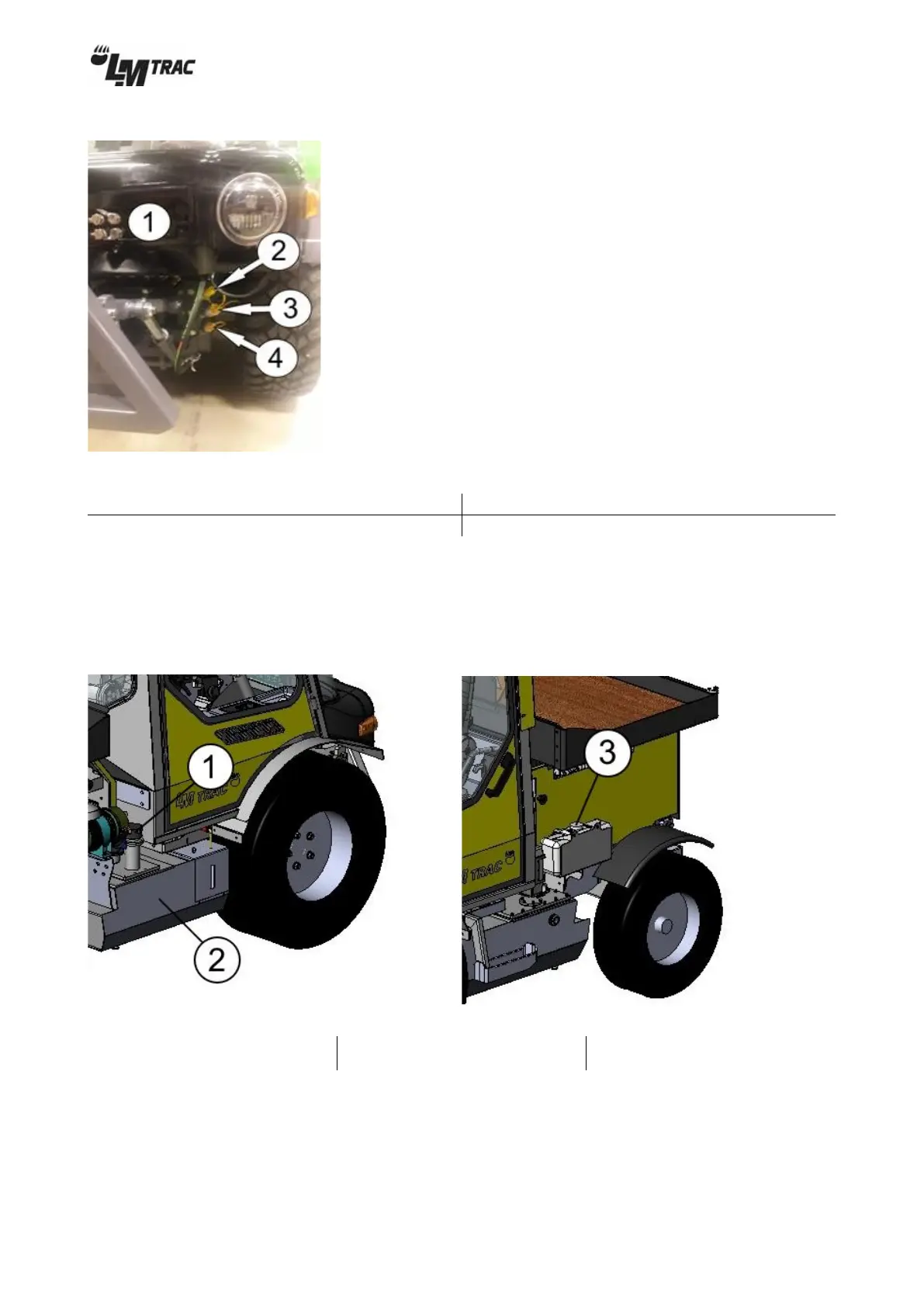

Figure 13
1. Cylinder hydraulics connectors (3 pairs)
2. Motor hydraulics
3. Motor hydraulics
4. Leak oil connector
• The hydraulic cylinders connected to the machine (max. 3 pcs) are controlled by moving the joysticks.
For further information see 4.5.1 on page 31.
3.4 Fuel and washing liquid tanks
Figure 14 Figure 15
1. Fuel tank cap
2.Fuel tank
3.Windscreen washing fluid tank
The fuel tank is on the right side of the machine.
The windscreen washing fluid tank is located on the left side of the machine on top of the hydraulic oil tank.
