► Remove filter bowl (5) from filter (2) and remove filter element (3) from filter base (2). Discard filter element (3).
► Remove and discard O ring seal (4).
► Ensure that all components are clean and dry.
► Install new O ring seal (LMPE26560184) and new filter element (LMPE130306360).
► Install filter bowl (5) to filter (2) and tighten the filter bowl to a torque of 10 Nm (88 lb in).
► Remove the container and dispose of the fuel in a safe place.
NOTE
The secondary filter element (6051290496) must be replaced at same time as
the primary filter element (LMPE130306360). Refer to 6.13.7 on page 87.
6.13.3 Hydraulic oil return filter replacement (27)
The hydraulics return filter element must be changed according to the maintenance interval table.

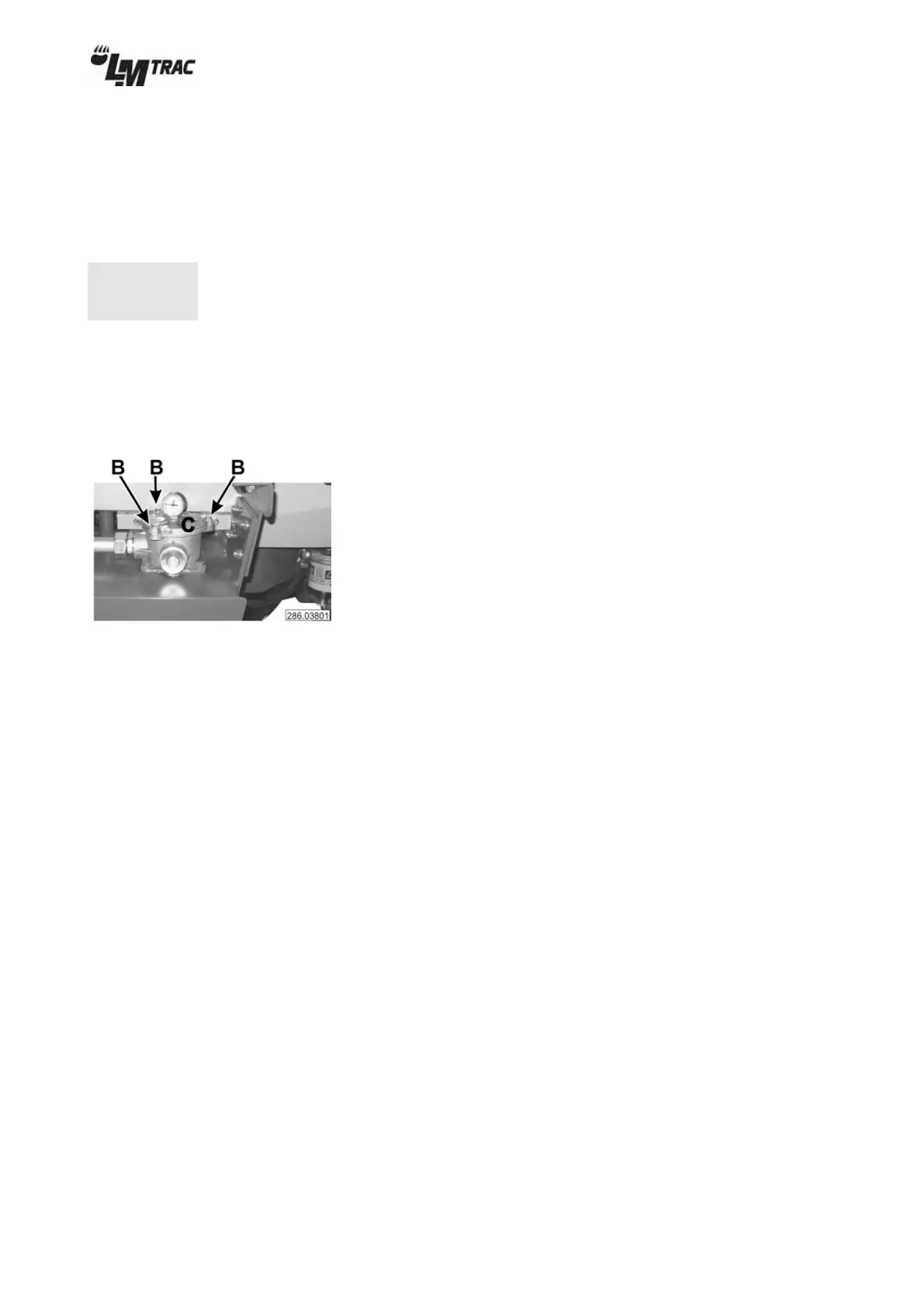

Figure 103
Filter replacement:
► Turn off the engine.
► Remove the screws (B, 3 pcs) on the cover of the return filter.
► Lift the used filter element out of the filter chamber (C).
► Clean all parts and seal surfaces carefully.
► Install a new filter element (60512901994) and O ring seals (4216051290199).
► Install the filter cover in position. Tighten the fasteners carefully.
► Start the engine and check for possible leaks.
