LM 287 User Manual – 30.10.2023
25
4.3 Multi‐function switch

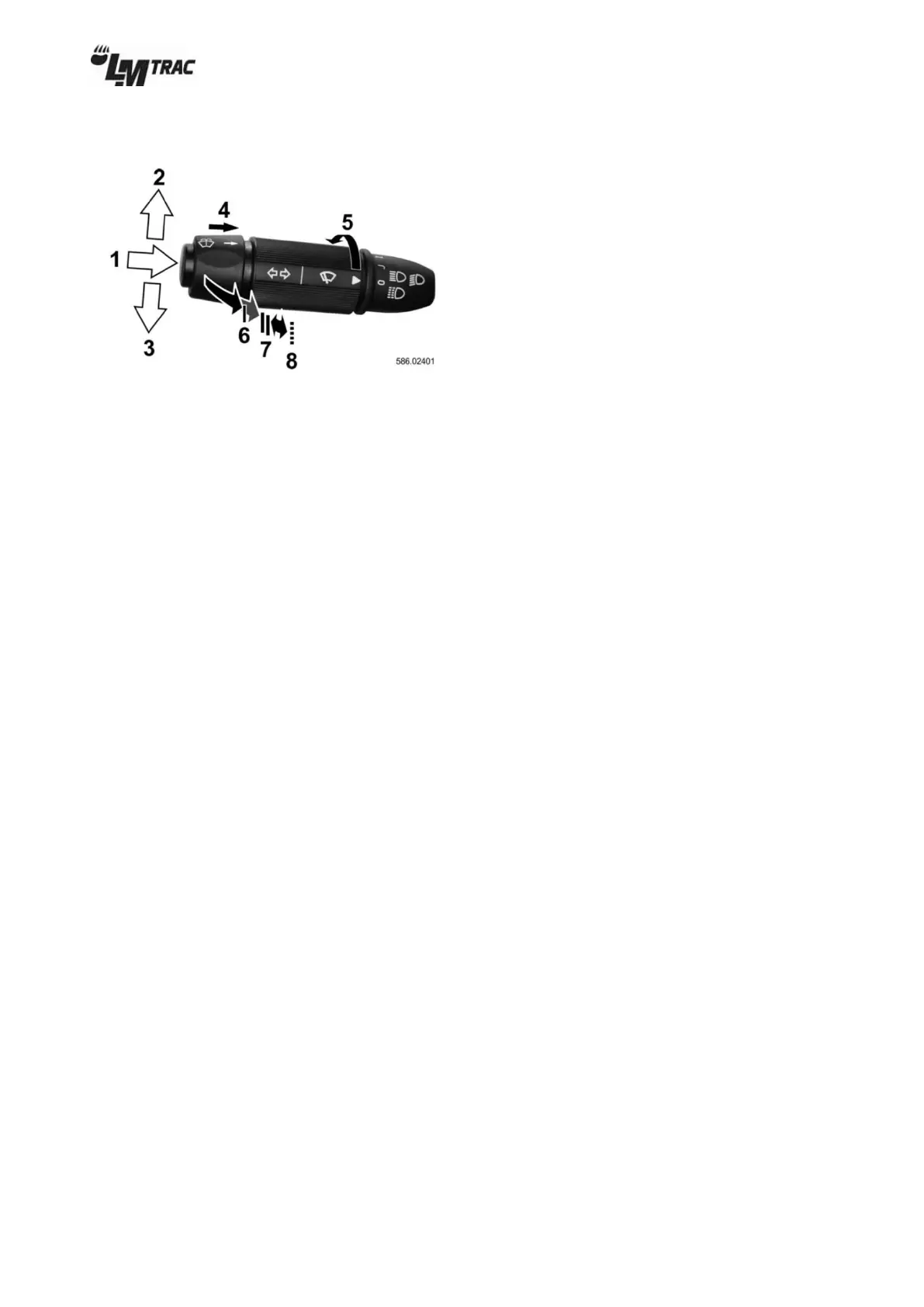

Figure 27
Multi-purpose switch functions:
1. Horn
► Press the button at the end of the lever.
2. Right turn signal
► Lift up the lever. Remember to move the lever back to the centre position after the turn.
3. Left turn signal
► Pull down the lever. Remember to move the lever back to the centre position after the turn.
4. Windscreen washer.
► Switch on the windscreen washer by pressing the collar in the direction of the arrow.
5. Windscreen wiper.
► Switch on the windscreen wiper by turning the sleeve.
6. Not in use
7. Not in use
8. Low beam/high beam.
► Switch between low beam and high beam by pulling the lever towards the steering wheel (point 8).
