LM 287 User Manual – 30.10.2023
77
6.10.5 Wheel fastener tightening torque check (15)

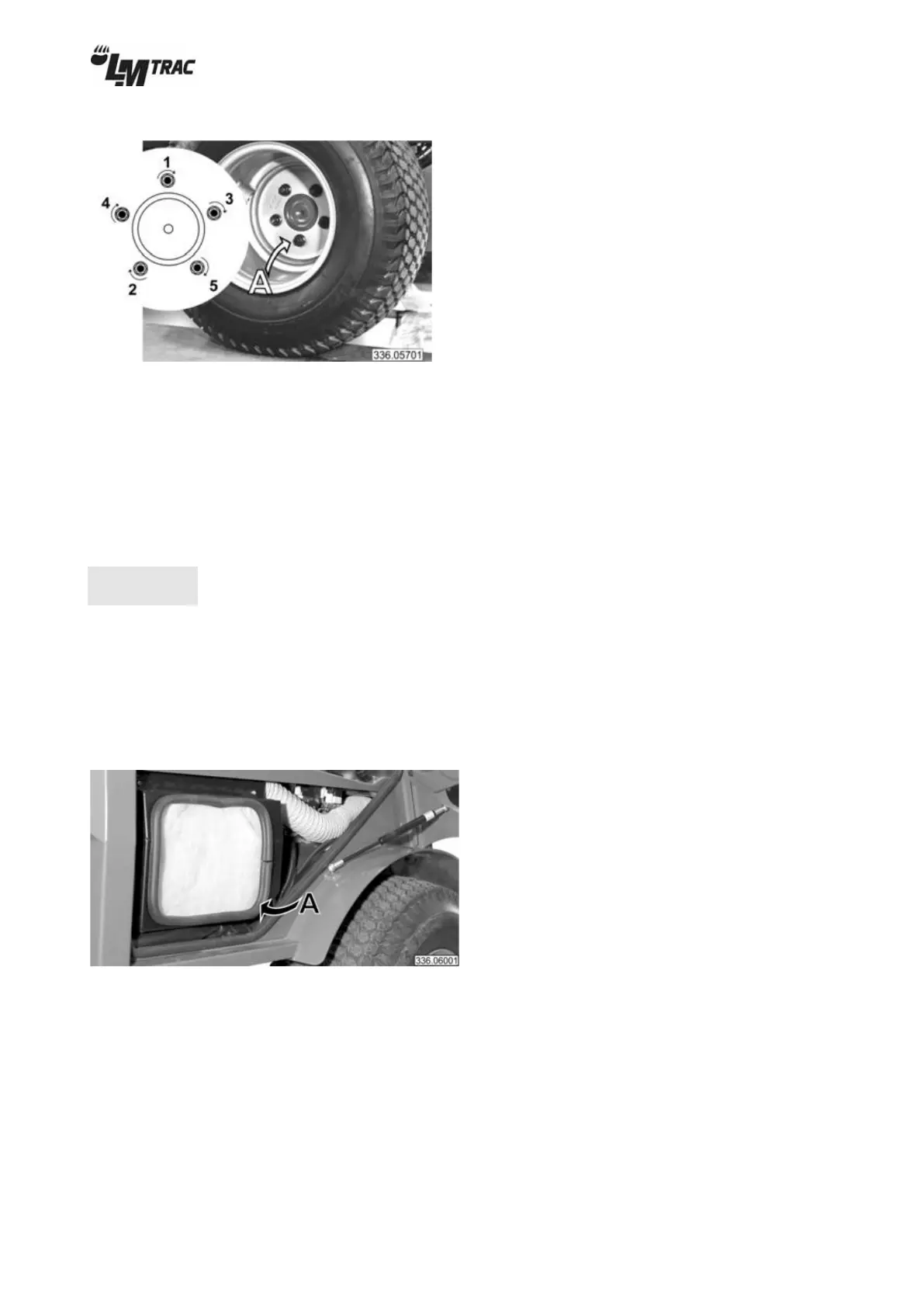

Figure 93
Check the tightening torque of the wheel fasteners (A) and retighten if necessary.
The tightening order is as indicated in the figure. The tightening torque is 200 Nm.
6.10.6 Radiator and condenser core cleaning (16)
Clean the radiator core and the cores of the oil cooler, intercooler and air conditioning condenser by blowing with
compressed air from the clean side to the dirty side.
NOTE
Do not use a pressure washer or clean the cores mechanically.
If compressed air can’t blow all the excess material dirt/grass etc. away, gently remove them by hand without damaging
the cores.
6.10.7 Cabin fresh‐air filter cleaning (17)
The fresh‐air filter is located behind the right door.
► Open the door and remove the filter.
Figure 94
► Clean the filter with compressed air, for example, by blowing from the clean side toward the dirty side.
► Replace a damaged or very dirty filter.
