LM 287 User Manual – 30.10.2023
31

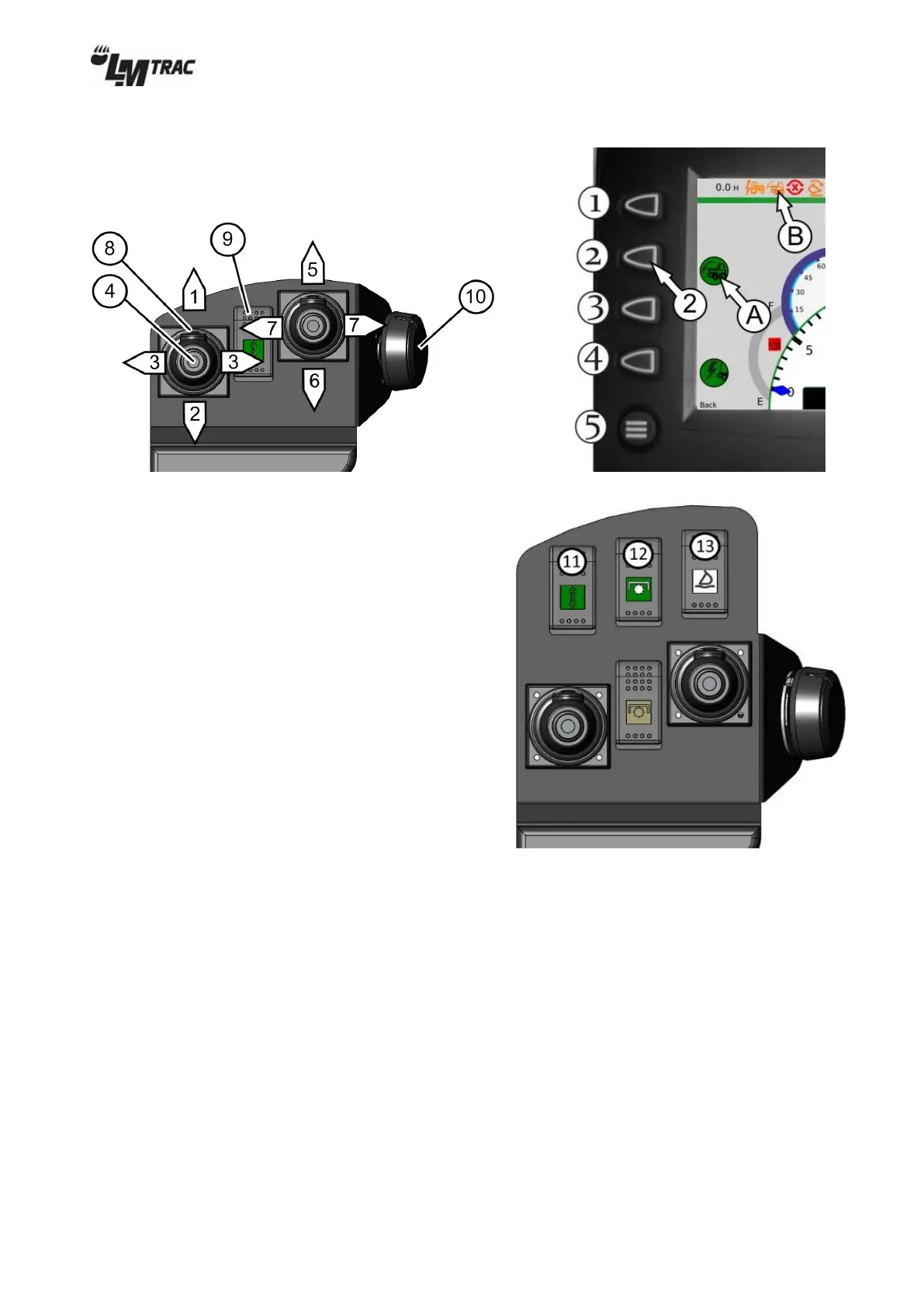

4.5.1 Joysticks
Figure 35 Figure 36
Left joystick movements:
1. Lowering the lifter.
2. Raising the lifter.
3. Front cylinder hydraulics 3 or A frame turn (option) left and right
4. Front tool floating ON – OFF
8. Power supply to relay K305 (for additional equipments)
Right joystick movements:
5. Front cylinder hydraulics 1 / Lowering the bonnet.*
6. Front cylinder hydraulics 1 / Lifting the bonnet.*
7. Front cylinder hydraulics 2
Figure 37
* Switch between front cylinder hydraulics 1 and bonnet tilting by pressing bonnet tilting button (A) on the Tool View.
Symbol (B) on the screen shows witch one is selected.
Other controls in arm rest:
9. Front motor hydraulics (tool rotation change). Figure 35
10. Hand throttle. Figure 35
11. Rear hydraulics PTO (tool rotation change), optional accessory. Figure 37
12. Optional hydraulic pump, front or rear PTO. Figure 37
13. Front tool suspension ON – OFF. Suspension improves machine drivability during transit when a heavy tool is
attached to the fork. The suspension must be switched OFF while working. Figure 37
