seen, the amount of data received and transmitted by the device), token rx (the number of
tokens received by the device).

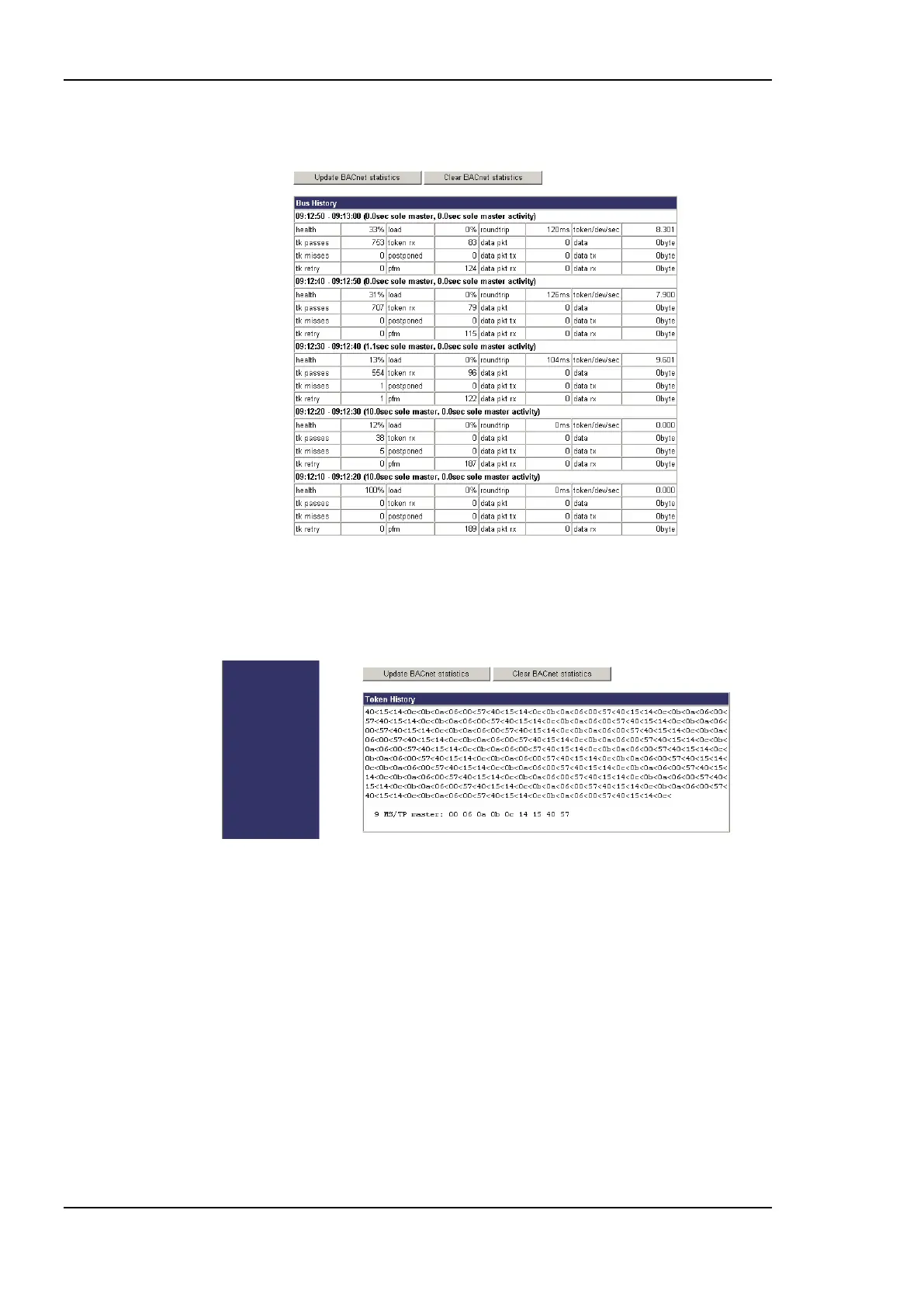

Figure 99: BACnet MS/TP Bus History.
The MS/TP Token History (see Figure 100) shows the most recent token passes on the
bus. The syntax used is simple: ‘40<15’ means that the node with address ‘0x15’ has
passed the token to the node with address ‘0x40’.
Figure 100: BACnet MS/TP Token History.
If token losses or token sending retries have been recorded, these are marked by substituting
‘.’ for ‘<’. For example, ‘40<15.40<15’ either means that ‘0x15’ retried sending the
token to ‘0x40’, or that passing the token to ‘0x40’ failed and ‘0x15’ created a new token
and sent it to ‘0x40’.
Transitions to or from sole master mode can be spotted by looking out for ‘XX’, e.g.,
‘XX<15’ means that after ‘0x15’ received the token, the device entered sole master mode.
Finally, based on the recorded token passes, the MS/TP Token History also lists the node
addresses of MS/TP masters detected on the bus.
5.5.4 CEA-709 Statistics (LDALI-10X only)
The CEA-709 statistics page displays statistics data of the CEA-709 nodes. Each DALI
channel corresponds to a separated CEA-709 node. If the device supports multiple DALI
channels it is possible to switch between the CEA-709 nodes using the tabs on the top (see
