8.2.9 Sunblind Controller Object #6111
The L-DALI provides 16 sunblind controller objects for each DALI channel.
Sunblind Controller #6111
nvoSblndSetting
SNVT_setting
nviLocalControl
SNVT_setting
nviGroupControl
SNVT_setting
nvoSblndState
SNVT_sblnd_state
nviGlobalControl
SNVT_setting
nviIndoorTemp
SNVT_temp_p
nviTerminalLoad
SNVT_lev_percent
nviOccSensor
SNVT_occupancy
nviSetMaint
SNVT_setting
nviWindowContact
SNVT_switch
nviGlare
SNVT_switch
nciMaxSendTime nciMaxRcvTime
nciWinConFailPos nciBypassTime
nciOverrideValue nciMaintValue
nciDriveDelay nciSLHighLim
nciSLLowLim nciMinAzimuth
nciMaxAzimuth nciBladeWidth
nciBladeDist nciRotOffset
nciMaxRotation nciMinRotation
nciHoldTime nciDeltaTemp
nciDeltaLevel nciSblndEvtPrio
nciCLNumber
nviIllumLev
SNVT_lux
nviScene
SNVT_scene
nviSetOverride
SNVT_setting
nviOverride
SNVT_switch
nviMaintenance
SNVT_switch
nviOccManCmd
SNVT_occupancy
nvoSBMode
SNVT_state
nvoSBStateFB
SNVT_sblnd_state
nviSBSettingFB
SNVT_setting
nviSBStateFB
SNVT_sblnd_state

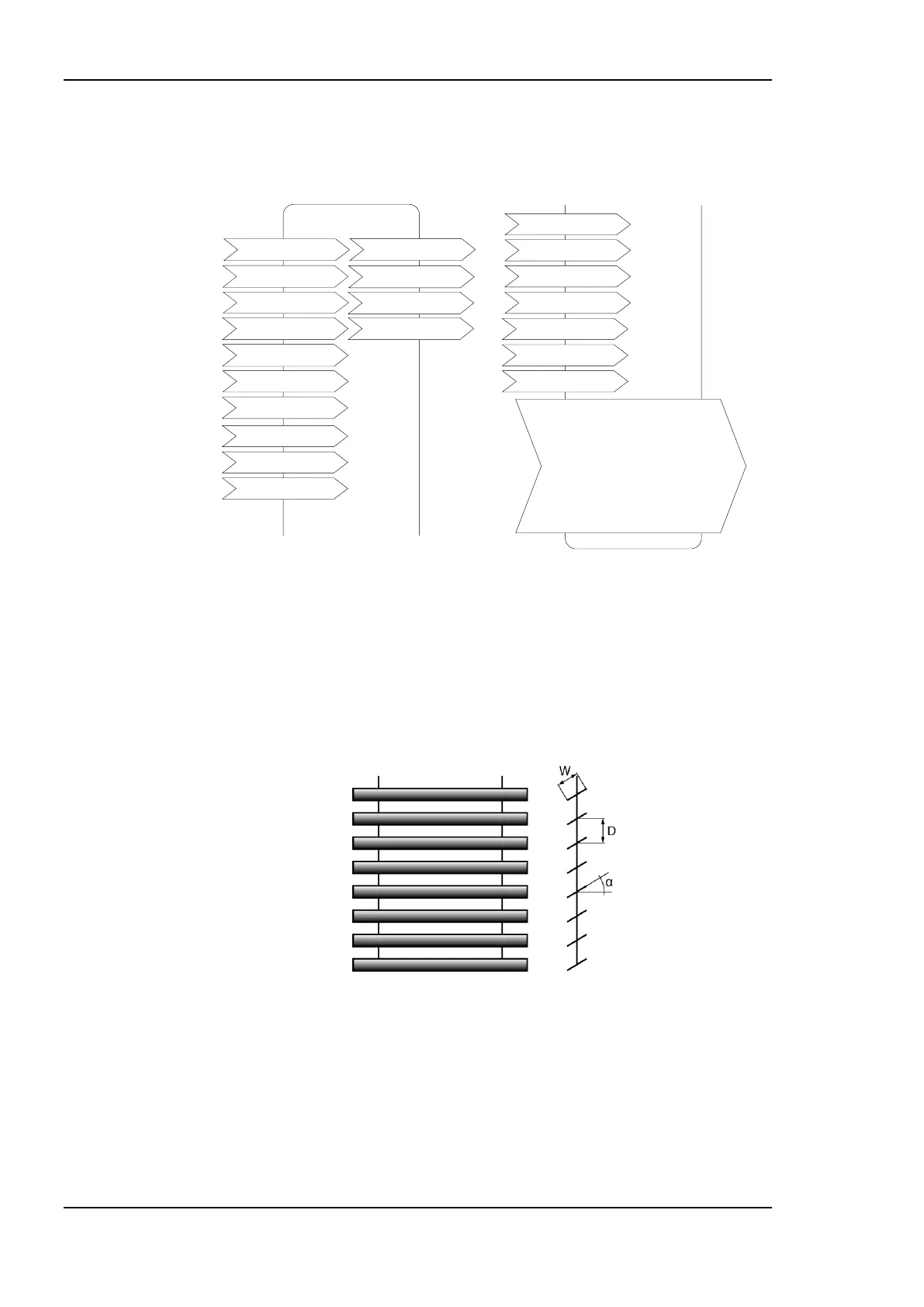

Figure 223: Sunblind Controller Object
This object type is enabled in the default interface. It can be disabled.
8.2.9.1 Glare Protection
The sunblind controller can automatically control the connected sunblind actuator to
provide glare protection. To do so the sunblind controller needs to know the geometry of
the sunblind blades.
Figure 224: Sunblind Geometry
The blade distance (D) has to be configured in the configuration property nciBladeDist and
the blade width in nciBladeWidth. The minimum and maximum rotation angle (α) is
configured in nciMinRot and nciMaxRot. Based on this geometry data and the current sun
elevation (nviSunElevation) the glare protection algorithm calculates the rotation angle for
the blades. The rotation angle can be optimized for a specific sunblind type by specifying an
offset in the configuration property nciRotOffset.
The following parameters determine if glare protection is necessary:
