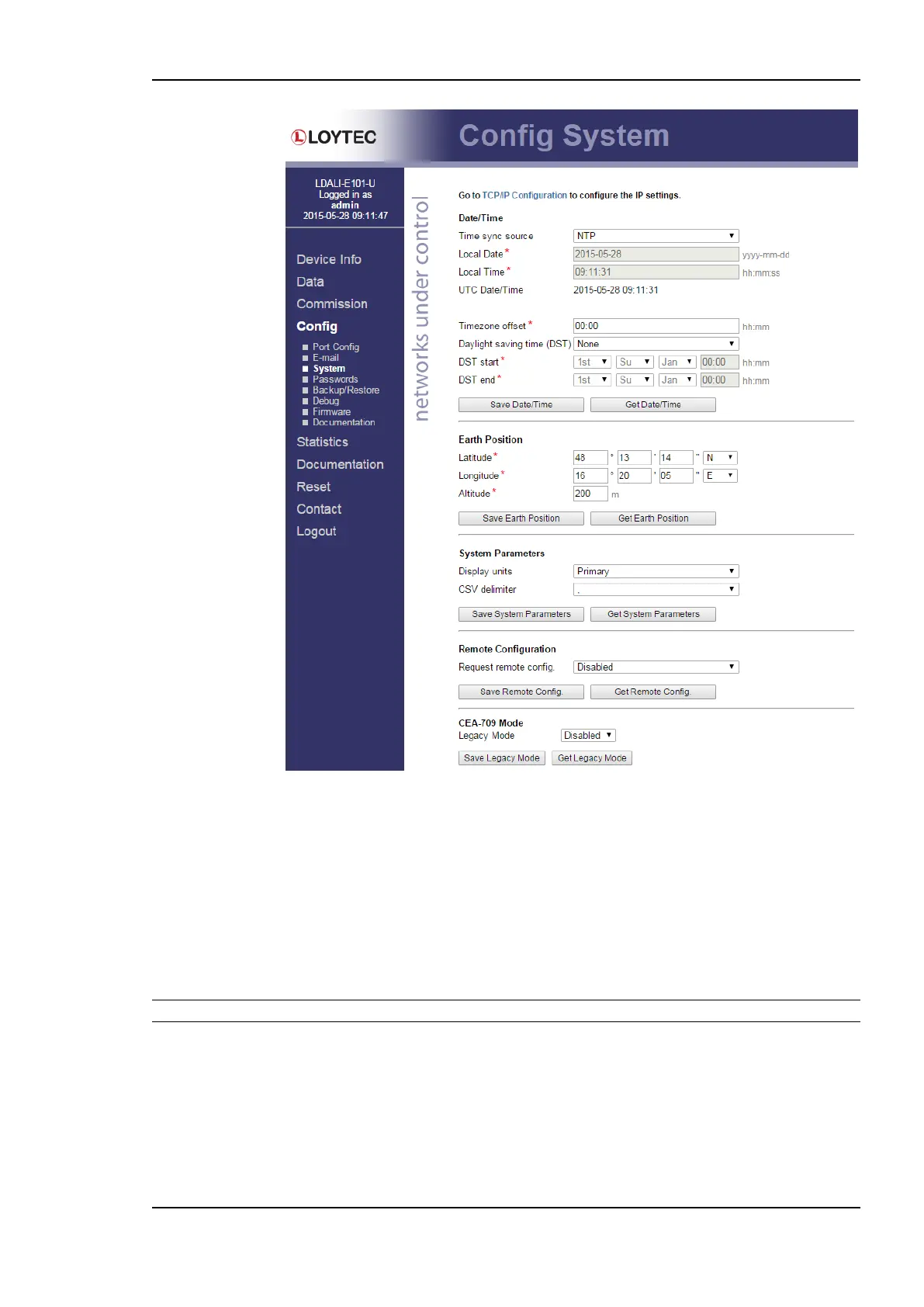

Figure 57: System Configuration Page
Enable the legacy mode if this is required by your network management tool (see Section
7.3.4, LDALI-10X only).
5.2.12 BACnet Configuration (LDALI-20X only)
Figure 58 shows the BACnet device configuration page. This configuration page allows
setting the Device ID, which is the instance part of the Object_Identifier property of the
BACnet Device object. The field Device name holds the name of the BACnet device object
(property Object_Name).
Important! The device ID and device name must be unique within the BACnet internetwork.
Further, the description and location can be configured. These configuration items
correspond to the properties Description, and Location respectively of the BACnet Device
object. For tuning BACnet application timing parameters, set APDU timeout, APDU
segment timeout, and APDU retry count. The timeout values are entered in seconds
allowing decimal notation, e.g. "7.5".
On the settings for BACnet/IP refer to Section 5.2.6. For configuring the MS/TP data link
refer to Section 5.2.9.
