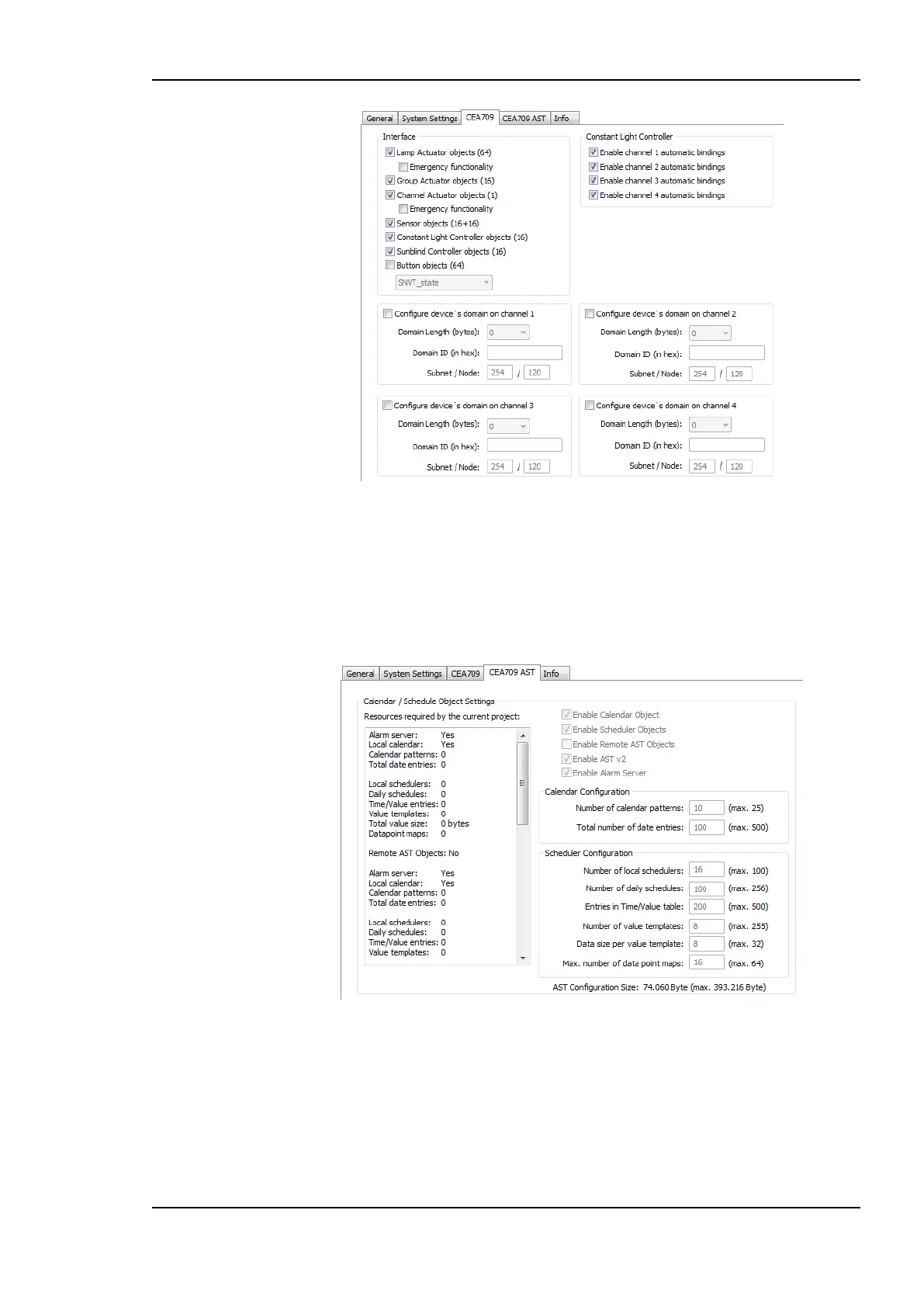

Figure 203: CEA-709 Project Settings.
7.16.4 CEA-709 AST Settings (LDALI-10X only)
For CEA-709 devices, the use of alarming, scheduling, and trending (AST) features requires
additional resources (functional objects, CPs and NVs). As changing those resources will in
turn change the static interface the L-DALI comes with a preconfigured AST resource
configuration, which cannot be changed.
Figure 204: CEA-709 AST Project Settings.
The section Resources required by the current project on the left side of the dialog lists
the AST resources already used by the current configuration. On the right side the available
resources as defined by the static interface of the L-DALI are listed. The lists include the
following values:
Enable Calendar Object: This checkbox enables a LONMARK compliant calendar
object on the device. It is always enabled.
