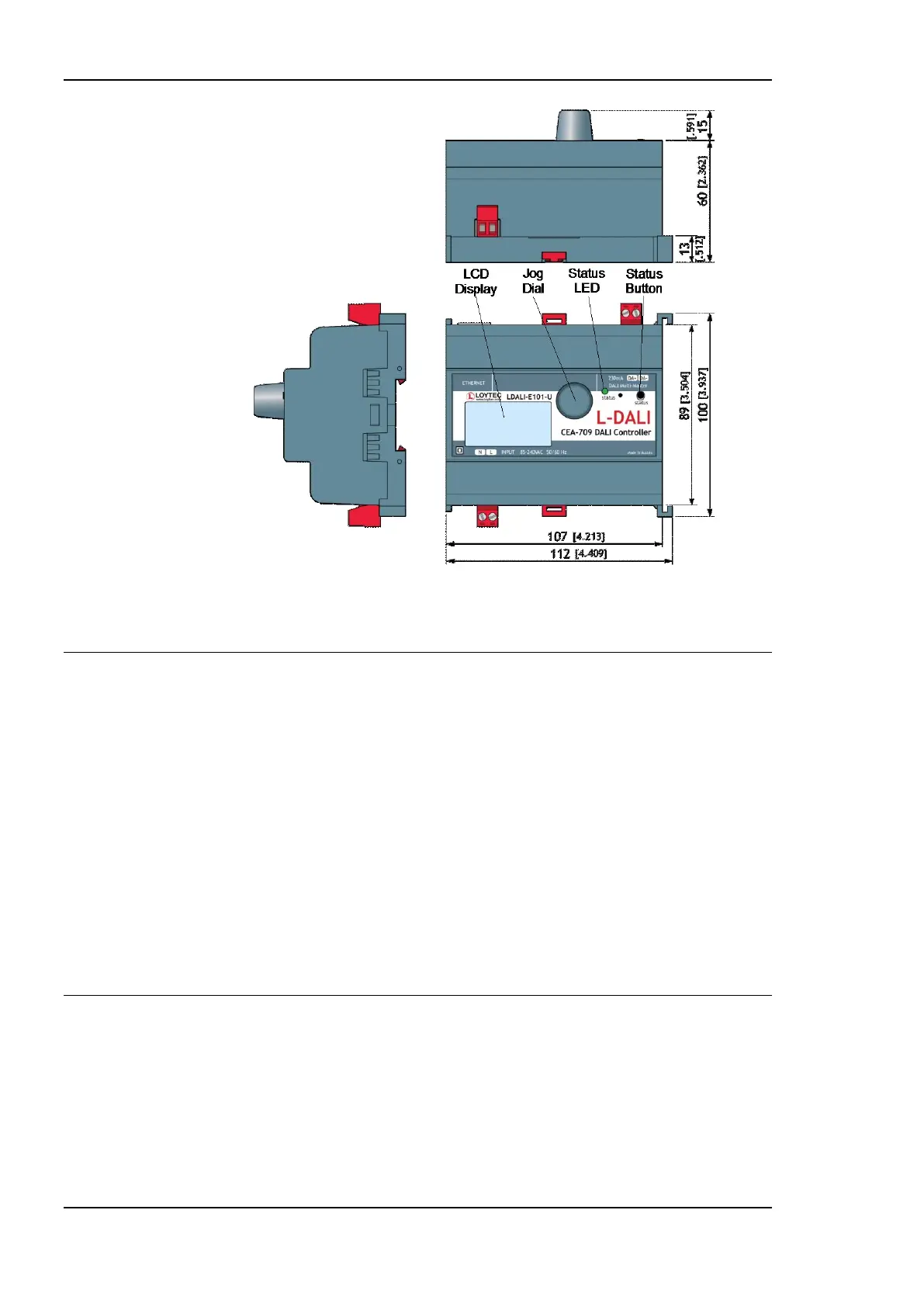

Figure 38: LDALI-E101-U, LDALI-3101-U and LDALI-E101-U Enclosure
(dimensions in mm [inch]).
4.2 Product Label
The product label on the side of the L-DALI contains the following information:
Order number with bar-code (e.g. LDALI-3E104),
serial number with bar-code (Ser#),
LDALI-10X only: unique node ID and virtual ID with bar-code for each DALI channel
(NID1, VID1, NID2, VID2, etc.),
Ethernet MAC ID with bar-code (MAC1).
Unless stated otherwise, all bar codes are encoded using “Code 128”. An additional label is
also supplied with the L-DALI for documentation purposes. A virtual ID (VID) is a Node
ID on the IP channel.
4.3 Mounting
The device comes prepared for mounting on DIN rails following DIN EN 50 022. The
device can be mounted in any position. However, an installation place with proper airflow
must be selected to ensure that the temperature of the L-DALI device does not exceed the
specified range (see Chapter 13).
