L-DALI User Manual 30 LOYTEC
Version 5.2 LOYTEC electronics GmbH

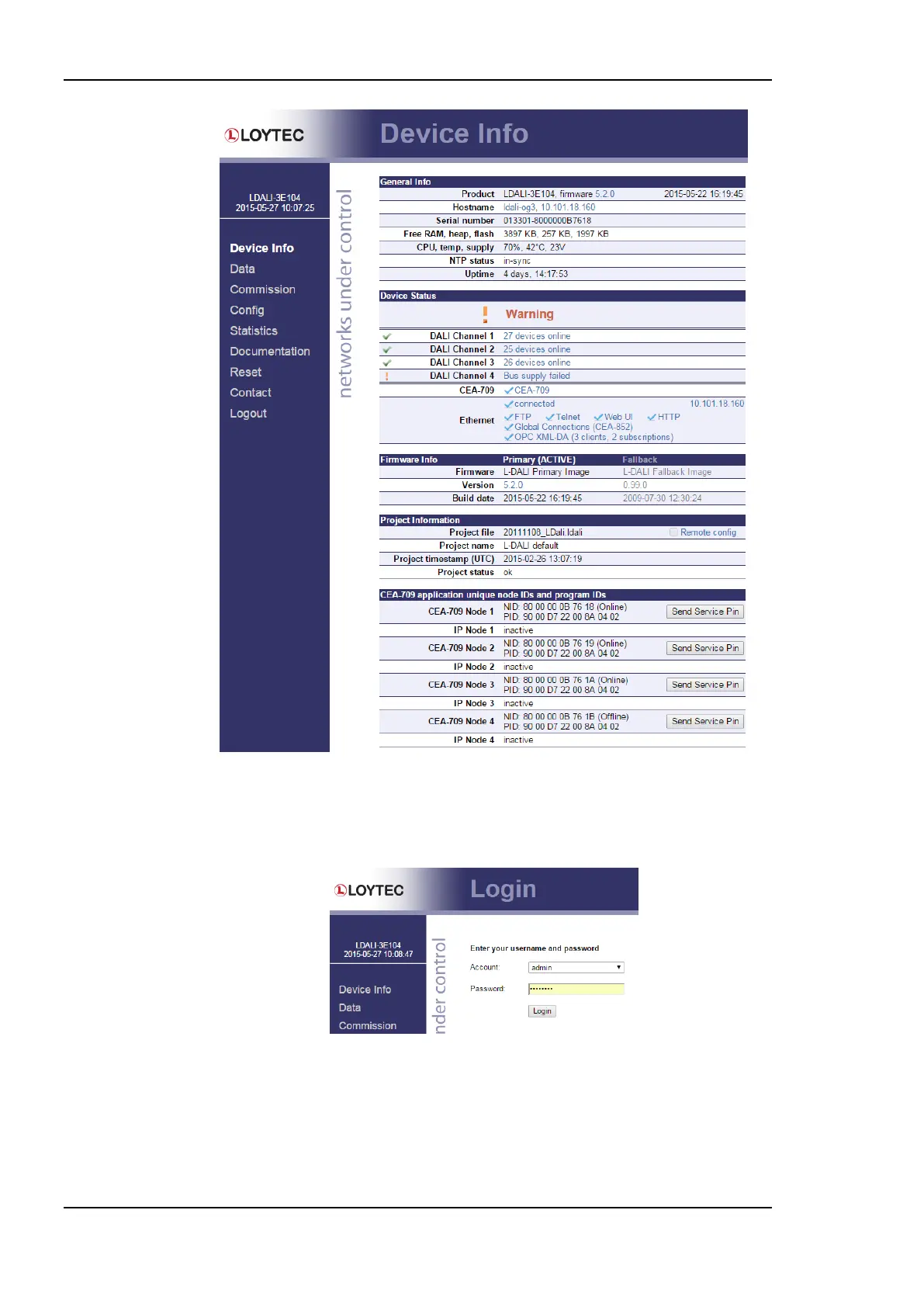

Figure 9: Example Start Screen.
5. Click on Config in the left menu. You will be asked to enter the administrator password
in order to change the IP settings. Enter ‘loytec4u’ and select Login.
Figure 10: Enter ‘loytec4u’ as the default administrator password.
6. The Config menu opens. Click on Port Config in the Config menu and select Ethernet
tab. Enter the IP address, the IP netmask, and IP gateway for this device as shown in
Figure 11.
7. Press Save Settings and then reset the device by selecting Reset in the highlighted text.
This changes the IP settings of the device.
