ProtoMat S Operation
© 2011 LPKF AG HB V0.9/Mrz-11 71
6
■ Produce a milling track
1. Preparative activities are described in detail on page 61
➨ The PCB material is fixed on the working table.

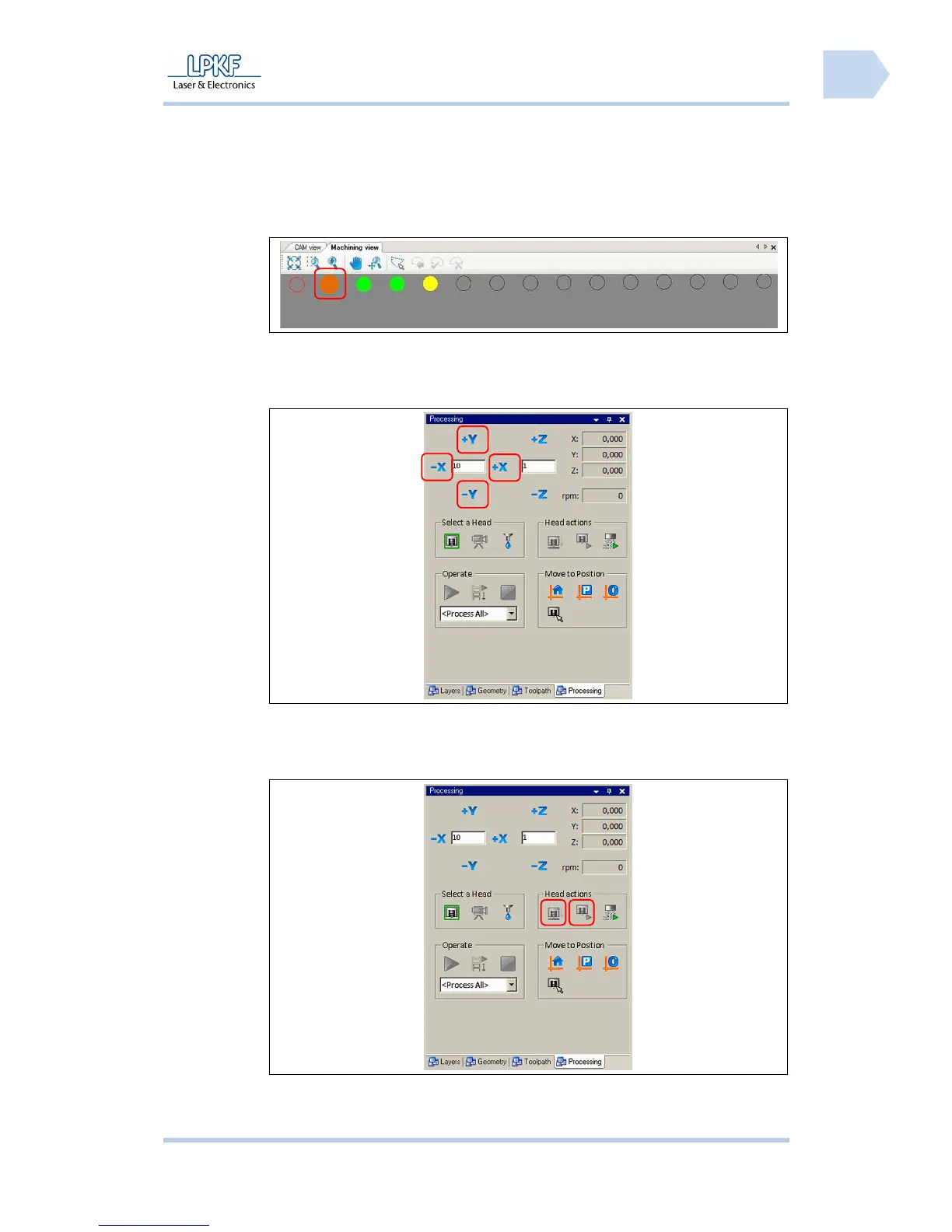

Fig. 42:
Machining view
select tool
2. Select a milling tool.
3. Move the mill/drill head to start position:
Fig. 43: Set
position
Click[+X], [-X], [+Y] or [-Y] until the start position is reached.
The exact position is displayed in the output field \X:\ and \Y:\.
Fig. 44:
Milling/drilling
head control
4. Click on [Motor on/off].
